12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
Specifications
Brand Name :
WIND AUTOMATION
Model Number :
WIND-3A-TSM
Certification :
CE
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T
Condition :
New
Certificate :
CE
Arraying :
Winding and Arraying at same time
Max Wire :
1.13mm AWG17 Copper wire
Automatic Type :
Fully Automatic can handle thin wire thick wire
Machine Color :
White or Per Customer Requirement
After salesWinding Speed :
Engineers available to service machinery overseas
Description

12 Slots BLDC Motor Stator 1.13mm AWG17 Copper Wire Needle Winding Machine WIND-3A-TSM

(1) Application

Needle winding BLDC stators of Sewing Machine,Air conditioning compressor, Refrigerator

compressor,water pump automotive application , fuel pump motor with 6 poles, 9 poles, 12 poles or

18 poles

(2) Advantages

Fast as three head

winding machine

3 needles wind 3slots at same time,

wider can finish the winding in

2times for 6slots stator

3times for 9poles BLDC stator

4times for 12slots

Winding Range

3 phase BLDC motor with same winding way for each phase,

Especially suitable for thick wire diameter above 0.8mm (AWG20)

Recently handled 1.13mm AWG17

Winding and Arraying

Arraying can achieve compact winding, even resistance and better motor

performance

(3) Feature

Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles 3phase stator

Its winding track is in square shape,It does wires winding and arraying at same time and automatically.

The slots needle winding, arraying,indexing,place bridge wire,cut wires are fully automatically.

The needle winding machine is very suitable for small slot width and high slot filling rate stator production,

To get better efficiency and better motor product.

(4) Parameter

Wire diameter:0.08~1.2mm (AWG17~AWG39)

Stator ID:15~65mm

Core length:7-110mm

Turns No.0-99999

Operation option: stepping/Auto

Stator poles: 6 poles, 9 poles, 12 poles,18poles (Customized)

Air pressure:5~7kg/square centi-meter

Power:2KW, AC220V 50/60Hz

Weight: about 750kgs

Dimension: 1600(L)x1100(W)x1400(H)mm

Question and Answer:

1. Which type of stator needle winding shall we select for our stator in attached drawing?

The winding machine WIND-3A-TSM with winding arrraying indexing servo device

and angle swing cam device is very suitable for winding your stator metioned in drawing,
it is very stable in winding big and small wire , heave or light BLDC motor compressor stators
2. Can you also estimate the winding period of our design, how many stators can we produce in
one hour?

Per your winding data Number of turns 27, wire diameter 0.8mm,

the winding speed we suggest is 300RPM, and it take about 1mintutes to get 1pc wound stator,

In one hour you can get more than 60pcs

3. What's the material list we shall provide for machine trail?

Below samples are needed for machine manufacturing and commissioning,

1. Stator stack 5pcs without winding

2. Wound stator 1pc

3. Copper wire 1 roll enough for winding 15pcs stators

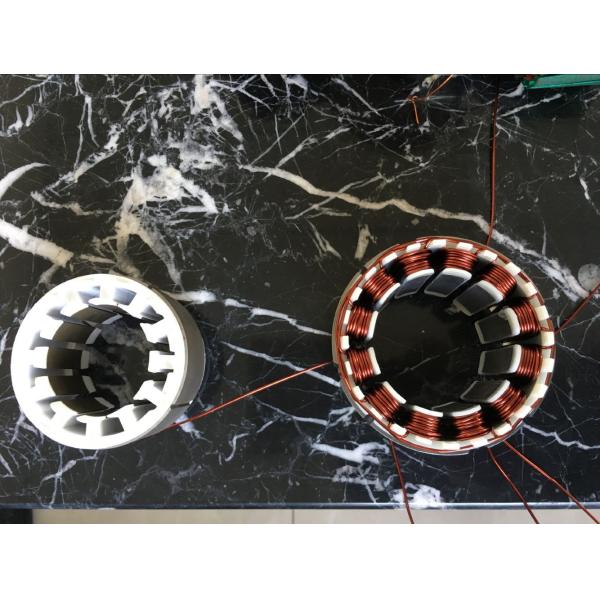

Below is example of wound stator

12 Slots Needle Winding Machine BLDC Motor Stator 1.13mm AWG17 Copper Wire
