Three Needles 12Poles BLDC Motor Stator Inner Winding Machine

Application:

Air conditioning compressor, Refrigerator compressor

6 poles, 9 poles, 12 poles or 18 poles Three phase Brushless Motor Stator 3Phase ABC winding way

same.

Advantages:

Stator Needle Winding Machine WIND-3A-TSM Theory:

Brushless motor stator winding machine WIND-3A-TSM is designed to produce multi poles stator with

6poles, 9 poles, 12 poles electric motors which is multiples of 3.

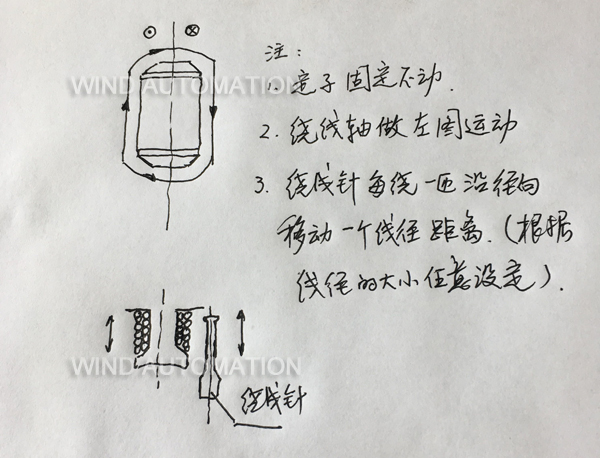

Stator winding machine WIND-3A-TSM's spindle winding track is in square shape as above photo,

needle moves only vertically driven by winding spindle, and for achieve better slot filling rate for the small

slot width stator with high slot full rate of motor, nozzle moves one wire size horizontally after one turn

winding for arraying, needle go to next wire size and till the end of slot width it move back and array in a

different direction,

stators are placed on rotating fixture for indexing,stator is stationary during the winding,

Winding machine does wires arraying and winding at same time automatically.

It is the best sold needle winding machine during the stator winders WIND-TSM Series for BLDC

compressor stator motor mass production

Parameter:

Wire diameter:0.08~1.2mm (AWG17~AWG39)

Stator ID:15~65mm

Core length:7-110mm

Turns No.0-99999

Operation option: stepping/Auto

Stator poles: 6 poles, 9 poles, 12 poles,18 poles (Customized)

Air pressure:5~7kg/square centi-meter

Power:2KW, AC220V 50/60Hz

Weight: about 450kgs

Dimension: 1600(L)x1100(W)x1400(H)mm

The automatic brushless stator winding machine series WIND-TSM is suitable for the winding of various

types of brushless motor coils. The enameled wire is directly wound on the coil core. Compared with the

traditional method of stator coil winding and windings embedding method, it saves the cost of the

enameled wire and increases the number of coils (related to electric motor slot filling rate).

The magnetic flux increases the power of the motor. This machine WIND-TSM series can automatically

complete the winding, indexing, arraying, cutting and other processes. The operator only needs to take

the work of picking and placing the stator, which reduces the labor intensity of the operator and achieves

automation. In addition, the machine has a significant functional feature. The copper wire nozzles are

moving according to the setting parameter, so that the wound wire package is compact, neat and nice

looking.

Please click below picture to view video
