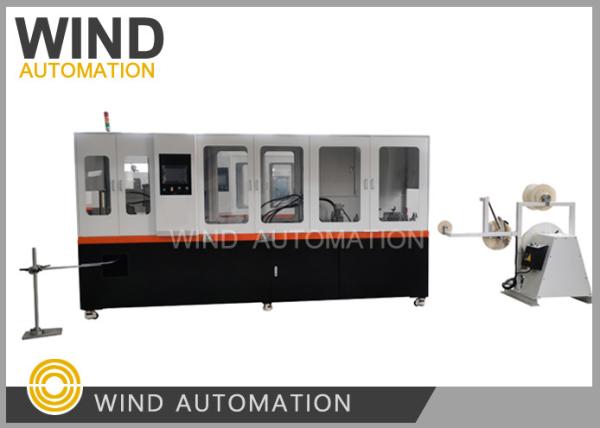

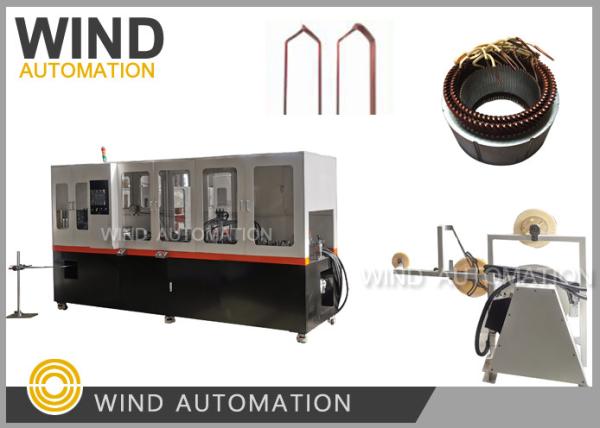

Hairpin Forming Machine For Hybrid Car EV BSG Motor Stator Electric Car WIND-HF-BX

This hairpin forming is a speical equipment for flat copper wire processing for the drive motor,

the equipment has design patent, the equipment can straightening enamelled copper wire and remove enamel on the plane profile side, automatic vacuum clearner,servo motor feeding,detection,cutting and forming.

Hairpin forming machine can be custom made for flat wire new energy drive motor stator from 1KW to 150KW

Hair pin forming FMEA Remark
Dereelering

spools size for holding wire for Wind Automation

to design the Wire dereeling device
Straightening
Enamel stripping

Length control

Depth control

the total length is always same and controllable,

Depth is ajustable by cutter or grinding device
Feeder

Encode,

Enamel damage while feeding

Feeding length can be setted on touch screen, controlled by servo motor,

Enamel damage not happen,

no contact with metal things
Cutting Cylinder presure to control, also can shape cutter
Forming Forming Shape Not as per drawing

The forming angle,size should suitable stator, drawing is only for reference,

Basically forming shape consistent,not exactly same as drawing, the pupose of machine design will make sure actual hairpins inserted to stator, achieve assembley height, ID/OD dimension, after forming , there is fixture to check
U bending Hold one side, twist the other side Splitting forming or Punch forming
