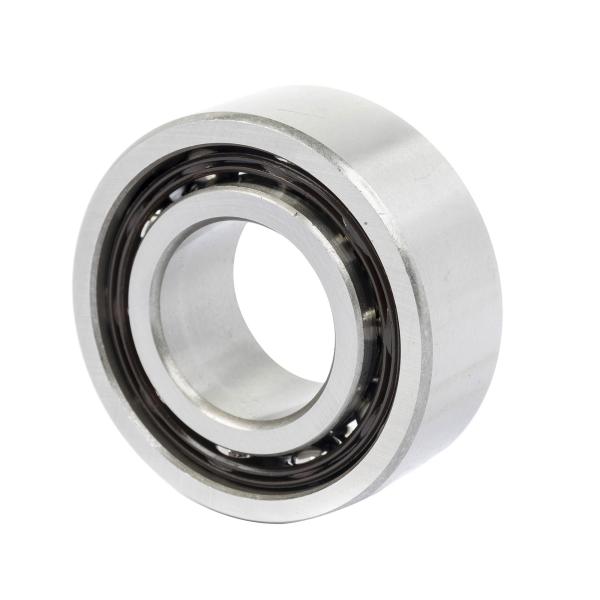

ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
ISO9001 Double Row 140mm Angular Contact Ball Bearings
Specifications
Brand Name :
SGC
Model Number :
30, 32, 33, 38, 39 Series
Certification :
ISO9001
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
45 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Product name :
Angular Contact Ball Bearing
Structure :
Angular Contact
Number of row :
Double Row
Type :
Ball
Materials :
GCr15 Chrome Steel
Cage :
Nylon or Brass Cage Optional

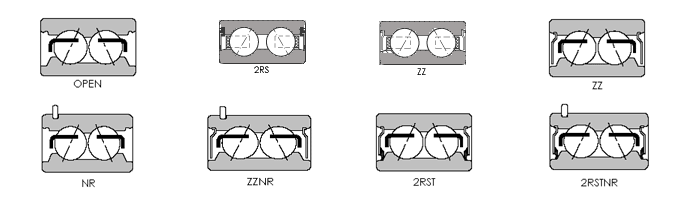

Seals type :
Open,2RS, ZZ
Lubrication :
Oil, Grease optional
Hardenedness :
HRC60~65
Precision rating :
P0,P6,P5, P4, P2
Vibration :
Z1 Z2 Z3, V1 V2 V3
Clearance :
C4,C3,C2,C0
Angular :
A
Bore size :
8mm - 90mm
Outside diameter :
22mm - 140 mm
Package :
1pc/plastic bag + color box +carton + pallet;
Service :
OEM Customized Services
Sample :
Avaliable
Description

Double Row Angular Contact Bearings for Load Capacity of Radial and Axial Play

Double Row Type-Metric

Materials:

• Balls: 52100 Chrome Steel, Hardened, Precision Ground

• Races: 52100 Chrome Steel, Hardened, Precision Ground

• Cage: Nylon, Brass Optional

Precision Rating:

• P0, P6, P5, P4, P2 Optionals

• 3800 Series• 3900 Series• 3000 Series• 3200 Series• 3300 Series

Applications:

The Single Row angular contact bearing is applying for: Oil Pump, Rolling Mill, Roots Blower, Air Compressor, Various Transmissions, Printing Machinery, Planetary Reducer, Foodstuff Packaging Machinery, Etc..



Bearing No.


Boundary Dimensions

(mm)

SKF No.

NTN No.

NSK No.
d D B C
30/8. 8 22 11 　 30/8A 50/8. 50/8.
3800A 10 19 7 　 3800A 5800 5800
3801A 12 21 7 　 3801A 5801 5801
3802A 15 24 7 　 3802A 5802 5802
3803A 17 26 7 　 3803A 5803 5803
3804A 20 32 10 　 3804A 5804 5804
3805A 25 37 10 　 3805A 5805 5805
3806A 30 42 10 　 3806A 5806 5806
3807A 35 47 10 　 3807A 5807 5807
3808A 40 52 10 　 3808A 5808 5808
3809A 45 58 10 　 3809A 5809 5809
3810A 50 65 12 　 3810A 5810 5810
3812A 60 78 14 　 3812A 5812 5812
3814A 70 90 15 　 3814A 5814 5814
3816A 80 100 15 　 3816A 5816 5816
3818A 90 115 19 　 3818A 5818 5818
3819A 95 120 19 　 3819A 5819 5819
3820A 100 125 19 　 3820A 5820 5820
3904A 20 37 13 　 3904A 5904 5904
3905A 25 42 13 　 3905A 5905 5905
3906A 30 47 13 　 3906A 5906 5906
3907A 35 55 15 　 3907A 5907 5907
3908A 40 62 16 　 3908A 5908 5908
3909A 45 68 16 　 3909A 5909 5909
3910A 50 72 16 　 3910A 5910 5910
3911A 55 80 19 　 3911A 5911 5911
3912A 60 85 19 　 3912A 5912 5912
3913A 65 90 19 　 3913A 5913 5913
3914A 70 100 23 　 3914A 5914 5914
3915A 75 105 23 　 3915A 5915 5915
3916A 80 110 23 　 3916A 5916 5916
3917A 85 120 26 　 3917A 5917 5917
3918A 90 125 26 　 3918A 5918 5918
3919A 95 130 26 　 3919A 5919 5919
3920A 100 140 30 　 3920A 5920 5920
3000A 10 26 12 　 3000A 5000 5000
3001A 12 28 12 　 3001A 5001 5001
3002A 15 32 13 　 3002A 5002 5002
3003A 17 35 14 　 3003A 5003 5003
3004A 20 42 16 　 3004A 5004 5004
3005A 25 47 16 　 30005A 5005 5005
3006A 30 55 19 　 3006A 5006 5006
3007A 35 62 20 　 3007A 5007 5007
3008A 40 68 21 　 3008A 5008 5008
3009A 45 75 23 　 3009A 5009 5009
3010A 50 80 23 　 3010A 5010 5010
3011A 55 90 26 　 3011A 5011 5011
3012A 60 95 26 　 3012A 5012 5012
3013A 65 100 26 　 3013A 5013 5013
3014A 70 110 30 　 3014A 5014 5014
3015A 75 115 30 　 3015A 5015 5015
3016A 80 125 34 　 3016A 5016 5016
3017A 85 130 34 　 3017A 5017 5017
3018A 90 140 37 　 3018A 5018 5018
3200A 10 30 14.3 　 3200A 5200 5200
3201A 12 32 15.9 　 3201A 5201 5201
W5201 12 32 17.5 　 W3201A W5201 W5201
3202A 15 35 15.9 　 3202A 5202 5202
W3202A 15 35 19.05 　 W3202A W5202 W5202
3203A 17 40 17.5 　 3203A 5203 5203
W3203A 17 40 20.6 　 W3203A W5203 W5203
3204A 20 47 20.6 　 3204A 5204 5204
W3204A 20 47 23.8 　 W3204A W5204 W5204
3205A 25 52 20.6 　 3205A 5205 5205
W3205A 25 52 23.8 　 W3205A W5205 W5205
3206A 30 62 23.8 　 3206A 5206 5206
W3206A 30 62 27 　 W3206A W5206 W5206
3207A 35 72 27 　 3207A 5207 5207
W3207A 35 72 30.2 　 W3207A W5207 W5207
3208A 40 80 30.2 　 3208A 5208 5208
3209A 45 85 30.2 　 3209A 5209 5209
3210A 50 90 30.2 　 3210A 5210 5210
3211A 55 100 33.3 　 3211A 5211 5211
3212A 60 110 36.5 　 3212A 5212 5212
3213A 65 120 38.1 　 3213A 5213 5213
3300A 10 35 19 　 3300A 5300 5300
3301A 12 37 19 　 3301A 5301 5301
3302A 15 42 19 　 3302A 5302 5302
3303A 17 47 22.2 　 3303A 5303 5303
3304A 20 52 22.2 　 3304A 5304 5304
W3304A 20 52 25.4 　 W3304A W5304 W5304
3305A 25 62 25.4 　 3305A 5305 5305
W3305A 25 62 29.6 　 W3305A W5305 W5305
3306A 30 72 30.2 　 3306A 5306 5306
W3306A 30 72 33.3 　 W3306A W5306 W5306
3307A 35 80 34.9 　 3307A 5307 5307
W3307A 35 80 38.1 　 W3307A W5307 W5307
3308A 40 90 36.5 　 3308A 5308 5308
3309A 45 100 39.7 　 3309A 5309 5309
3310A 50 110 44.4 　 3310A 5310 5310
3311A 55 120 49.2 　 3311A 5311 5311
3312A 60 130 54 　 3312A 5312 5312
3313A 65 120 38.1 　 3313A 5313 5313
