FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
FL Type Pressed Steel Plates SBPFL 200 Oval Flange Bearing
Specifications
Brand Name :
SGC
Model Number :
SBPFL200
Place of Origin :
Fuzhou, China
MOQ :
100 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
45 days upon receipt of official order
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Ball Bearing Insert :
GCr15 Chrome Steel
Hardness :
HRC58-62
Precision Rates :
ABEC-1, ABEC-3
Vibration :
Z1, Z1V1
Clearance :
C0, C2, C3
Shaft Dia :
12mm ~ 35mm, 1/2" ~ 1-7/16" Inch
Mounting Block :
Pressed Steel, Zinc Plated
Type :
FL Type, Pressed Housing
Color of Block :
Green
Oil Nipple :
Brass
Package :
1*1 Plastic Bag+Individual Box+Outer Carton
Service :
OEM or Customized Drawings is Available
Sample :
Free
Description

Light Duty Oval Flange Units with Pressed Housing Zinc Plated SBPFL200

Set Screw Type-Metric, Inch

The pressed housings are with light weight and simple structure and consists of two pieces of presssed steel plates, installing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Pressed Steel Plates
• Light Weight
• Dual Seal Type

Applications:

This type is applied to the machine whose rotating speed is low or medium, or the machine with light load.

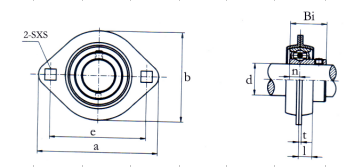

Unit No.
Shaft Dia
d
Boundary Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass
(kg)
(in) (mm) a e l b t s n Bi (mm) (in)
SBPFL201-8 1/2. 　 81 63 14 59 2 7 6 22 M6 1/4. SB201-8 PFL203 0.19
SBPFL202-9 9/16. 　 SB202-9
SBPFL202-10 5/8. 　 SB202-10
SBPFL203-11 11/16. 　 SB203-11
SBPFL201 　 12 SB201
SBPFL202 　 15 SB202
SBPFL203 　 17 SB203
SBPFL204-12 3/4. 　 90 71 16 67 2 9 7 25 M8 5/16. SB204-12 PFL204 0.24
SBPFL204 　 20 SB204
SBPFL205-14 7/8. 　 95 76 18 71 2 9 7.5 27 M8 5/16. SB205-14 PFL205 0.28
SBPFL205-15 15/16 　 SB205-15
SBPFL205-16 1 　 SB205-16
SBPFL205 　 25 SB205
SBPFL206-18 1-1/8. 　 113 90 18 84 2.6 11 8 30 M10 3/8. SB206-18 PFL206 0.38
SBPFL206-19 1-3/16. 　 SB206-19
SBPFL206-20 1-1/4. 　 SB206-20
SBPFL206 　 30 SB206
SBPFL207-20 1-1/4. 　 122 100 20 94 2.6 11 8.5 32 M10 3/8. SB207-20 PFL207 0.65
SBPFL207-21 1-5/16. 　 SB207-21
SBPFL207-22 1-3/8. 　 SB207-22
SBPFL207-23 1-7/16. 　 SB207-23
SBPFL207 　 35 SB207
