UCPH200 Chrome Steel Bearing 1/2 Cast Iron Pillow Blocks
UCPH200 Chrome Steel Bearing 1/2 Cast Iron Pillow Blocks
UCPH200 Chrome Steel Bearing 1/2 Cast Iron Pillow Blocks
UCPH200 Chrome Steel Bearing 1/2 Cast Iron Pillow Blocks
Specifications
Brand Name :
SGC
Model Number :
UCPH200
Place of Origin :
Fuzhou, China
MOQ :
100 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
45 days upon receipt of official order
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Ball Bearing Insert :
GCr15 Chrome Steel
Hardness :
HRC58-62
Precision Rates :
ABEC-1, ABEC-3
Vibration :
Z1, Z1V1, Z2V2
Clearance :
C0, C2, C3
Shaft Dia :
12mm ~ 80mm, 1/2" ~ 3-1/8" Inch
Mounting Block :
High Grade Cast Iron
Type :
PH Type
Color of Block :
Green
Oil Nipple :
Brass
Package :
1*1 Plastic Bag+Individual Box+Outer Carton
Service :
OEM or Customized Drawings is Available
Sample :
Free
Description

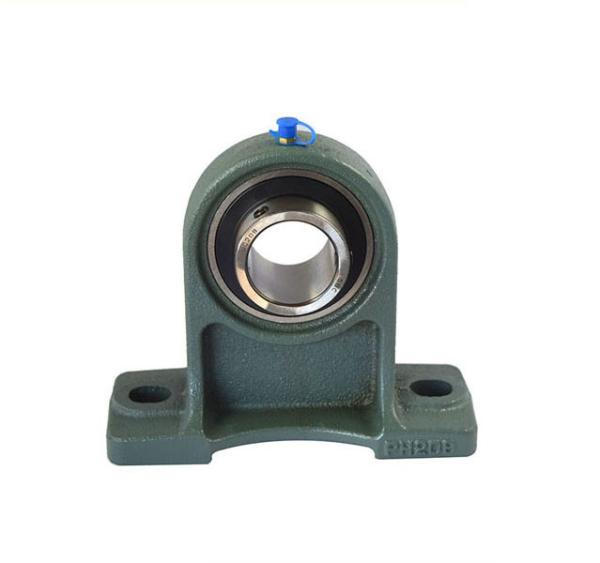

High Center Height Pillow Blocks with a Higher Center Height Cast Iron Housing and Two Bolt Holes UCPH200

Set Screw Type-Metric, Inch

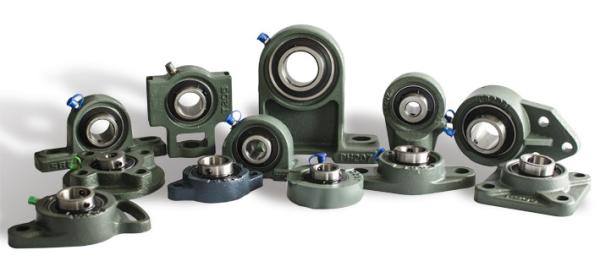

Standard duty pillow & mounting blocks that feature a cast iron housing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Cast Iron Housing
• Solid Base
• Dual Seal Type

Applications:

The bearing units can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings, widely used used in agricultural machinery, construction machinery, textile machinery, foodstuff processing machinery, and conveying devices, etc..


Unit No.
Shaft Dia
d
Boundary Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass
(kg)
h a e b S2 S1 g w Bi n (mm) (in)
(in) (mm)
UCPH201-8 1/2. 　 70 127 95 40 19 13 15 101 31 12.7 M10 3/8. UC201-8 PH204 0.75
UCPH202-9 9/16. 　 UC202-9
UCPH202-10 5/8. 　 UC202-10
UCPH203-11 11/16. 　 UC203-11
UCPH204-12 3/4. 　 UC204-12
UCPH201 　 12 UC201
UCPH202 　 15 UC202
UCPH203 　 17 UC203
UCPH204 　 20 UC204
UCPH205-13 13/16 　 80 140 105 50 19 13 16 114 34.1 14.3 M10 3/8. UC205-13 PH205 1
UCPH205-14 7/8. 　 UC205-14
UCPH205-15 15/16 　 UC205-15
UCPH205-16 1 　 UC205-16
UCPH205 　 25 UC205
UCPH206-17 1-1/16. 　 90 165 121 50 21 17 18 130 38.1 15.9 M14 1/2. UC206-17 PH206 1.42
UCPH206-18 1-1/8. 　 UC206-18
UCPH206-19 1-3/16. 　 UC206-19
UCPH206-20 1-1/4. 　 UC206-20
UCPH206 　 30 UC206
UCPH207-20 1-1/4. 　 95 167 127 60 21 17 19 140 42.9 17.5 M14 1/2. UC207-20 PH207 1.55
UCPH207-21 1-5/16. 　 UC207-21
UCPH207-22 1-3/8. 　 UC207-22
UCPH207-23 1-7/16. 　 UC207-23
UCPH207 　 35 UC207
UCPH208-24 1-1/2. 　 100 184 137 70 25 17 19 149 49.2 19 M14 1/2. UC208-24 PH208 2.15
UCPH208-25 1-9/16. 　 UC208-25
UCPH208 　 40 UC208
UCPH209-26 1-5/8. 　 105 190 146 70 25 17 20 157 49.2 19 M14 1/2. UC209-26 PH209 2.31
UCPH209-27 1-11/16. 　 UC209-27
UCPH209-28 1-3/4. 　 UC209-28
UCPH209 　 45 UC209
UCPH210-29 1-13/16 　 110 206 159 70 25 20 22 165 51.6 19 M16 5/8. UC210-29 PH210 2.8
UCPH210-30 1-7/8. 　 UC210-30
UCPH210-31 1-15/16 　 UC210-31
UCPH210-32 2 　 UC210-32
UCPH210 　 50 UC210
UCPH211-32 2 　 120 219 171 75 22 19 22 181 55.6 22.2 M16 5/8. UC211-32 PH211 4.4
UCPH211-33 2-1/16. 　 UC211-33
UCPH211-34 2-1/8. 　 UC211-34
UCPH211-35 2-3/16. 　 UC211-35
UCPH211 　 55 UC211
UCPH212-36 2-1/4. 　 130 235 184 85 23 19 25 197 65.1 25.4 M16 5/8. UC212-36 PH212 4.8
UCPH212-37 2-5/16. 　 UC212-37
UCPH212-38 2-3/8. 　 UC212-38
UCPH212-39 2-7/16. 　 UC212-39
UCPH212 　 60 UC212
UCPH213-40 2-1/2. 　 140 262 203 95 28 23 27 212 65.1 25.4 M20 3/4. UC213-40 PH213 5.6
UCPH213-41 2-9/16. 　 UC213-41
UCPH213 　 65 UC213
UCPH214-42 2-5/8. 　 150 268 210 105 28 23 28 225 74.6 30.2 M20 3/4. UC214-42 PH214 6.2
UCPH214-43 2-11/16. 　 UC214-43
UCPH214-44 2-3/4. 　 UC214-44
UCPH214 　 70 UC214
UCPH215-45 2-13/16 　 160 275 217 115 28 23 29 238 77.8 33.3 M20 3/4. UC215-45 PH215 7.4
UCPH215-46
