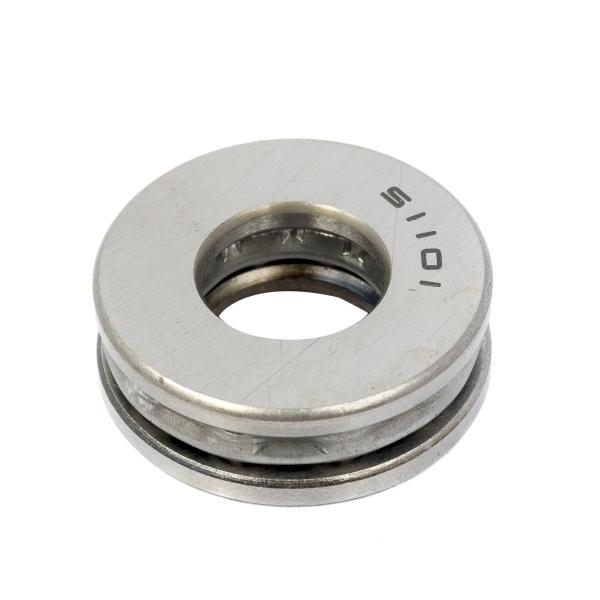

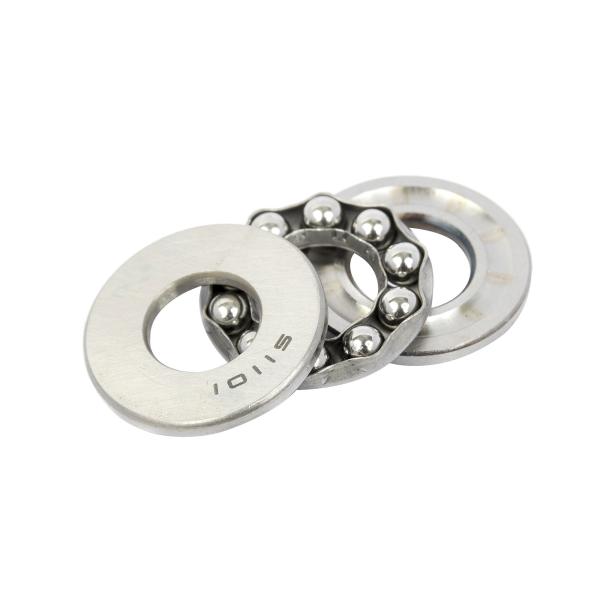

Single Row 511 512 Axial Ball Thrust Bearing For Mining
Single Row 511 512 Axial Ball Thrust Bearing For Mining
Single Row 511 512 Axial Ball Thrust Bearing For Mining
Single Row 511 512 Axial Ball Thrust Bearing For Mining
Single Row 511 512 Axial Ball Thrust Bearing For Mining
Single Row 511 512 Axial Ball Thrust Bearing For Mining
Specifications
Brand Name :
SGC
Model Number :
511, 512 Series
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
200000PCS per month
Delivery Time :
10-30 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Product name :
Thrust Ball Bearing
Number of row :
Single Row
Materials :
GCr15 Chrome Steel
Cage :
Hardened steel, Nylon, and Brass Cage Optional
Lubrication :
Oil
Hardenedness :
HRC60~65
Balls :
G5, G10, G16
Bore size :
10mm - 400mm
Outside diameter :
24mm - 480mm
Service :
OEM Customized Services
Feature :
Long Life,High Load
Package :
Industrial Packing
Sample :
available
Description

Axial Trust Ball Bearings with Steel or Brass Cage 511/512 Series

Standard-Duty Type

Features:

• Low speed;

• High load capacity;
• Optional Steel, Nylon, and Brass cage.

Applications:

The trust ball bearing is applying for heavy axial load equipment, such as mining, metallurgy, petrol, mechanical industries.

Thrust ball bearings can be classified into one-way thrust ball bearing and double-way thrust ball bearing according to the different structures.
It can also be classified into flat-back face thrust ball bearings and thrust ball bearings with aligning seat washer according to the difference of flat back face.
thrust ball bearing with aligning seat witch has the performance of self-aliging and can reduce the effect of installation error.
One-way thrust ball bearing can bear single-directional axial load and limit the one-way axial displacement; while double-way thrust ball bearing can bear bi-directional axial load and limit the two-way axial displacement

Bearing No. Boundary Dimension(mm) Basic load rating
(KN)		 Limiting Speed
(rpm)		 Mass
(kg)
d D T Dynamic Cr Static Cor Grease Oil
51100 10 24 9 10 14 6500 10000 0.02
51200 26 11 12.7 17.1 5700 8800 0.03
51101 12 26 9 10.3 15.4 6500 10000 0.022
51201 28 11 13.2 19 5400 8300 0.034
51102 15 28 9 10.5 16.8 6100 9400 0.024
51202 32 12 16.6 24.8 4900 7500 0.046
51103 17 30 9 10.8 18.2 5300 7500 0.024
51203 35 12 17 27.2 4500 6300 0.048
51104 20 35 10 14.2 24.5 4800 6700 0.036
51204 40 14 22.2 37.5 3800 5300 0.075
51105 25 42 11 15.2 30.2 4300 6000 0.055
51205 47 15 27.8 50.5 3400 4800 0.11
51305 52 18 35.5 61.5 3000 3400 0.17
51405 60 24 55.5 89.2 2200 5600 0.31
51106 30 47 11 16 34.2 4000 4500 0.062
51206 52 16 28 54.2 3200 3600 0.13
51306 60 21 42.8 78.5 2400 3000 0.26
51406 70 28 72.5 125 1900 5300 0.51
51107 35 52 12 18.2 41.5 3800 4000 0.077
51207 62 18 39.2 78.2 2800 3200 0.21
51307 68 24 55.2 105 2000 2600 0.37
51407 80 32 86.8 155 1700 4800 0.76
51108 40 60 13 26.8 62.8 3400 3600 0.11
51208 68 19 47 98.2 2400 3000 0.26
51308 78 26 69.2 135 19000 2200 0.53
51408 90 36 112 205 1500 4500 1.06
51109 45 65 14 27 66 3200 3400 0.14
51209 73 20 47.8 105 2200 2600 0.3
51309 85 28 75.8 150 1700 2000 0.66
51409 100 39 140 262 1400 4300 1.41
51110 50 70 14 27.2 69.2 3000 3200 0.15
51210 78 22 48.5 112 2000 2400 0.37
51310 95 31 96.5 202 1600 1900 0.92
51410 110 43 160 302 1300 4000 1.86
51111 55 78 16 33.8 89.2 2800 4000 0.22
51211 90 25 67.5 158 1900 3000 0.58
51311 105 35 115 242 1500 2200 1.28
51411 120 48 182 355 1100 1700 2.51
51112 60 85 17 40.2 108 2600 3800 0.27
51212 95 26 73.5 178 1800 2800 0.66
51312 110 35 118 262 1400 2000 1.37
51412 130 51 200 395 1000 1600 3.08
51113 65 90 18 40.5 112 2400 3600 0.31
51213 100 27 74.8 188 1700 2600 0.72
51313 115 36 115 262 1300 1900 1.48
51413 140 56 215 448 900 1400 3.91
51114 70 95 18 40.8 115 2200 3400 0.33
51214 105 27 73.5 188 1600 2400 0.75
51314 125 40 148 340 1200 1800 1.98
51414 150 60 255 560 850 1300 4.85
51115 75 100 19 48.2 140 2000 3200 0.38
51215 110 27 74.8 198 1500 2200 0.82
51315 135 44 162 380 1100 1700 2.58
51415 160 65 268 615 800 1200 6.08
51116 80 105 19 48.5 145 1900 3000 0.4
51216 115 28 83.8 222 1400 2000 0.9
51316 140 44 160 380 1000 1600 2.69
51416 170 68 292 692 750 1100 7.12
51117 85 110 19 45.9 150 2100 3200 0.44
51217 125 31 102 280 1300 1900 1.21
51317 150 49 208 495 950 1500 3.47
51417 180 72 318 782 700 1000 8.28
51118 90 120 22 59.7 190 1900 2900 0.67
51218 135 35 117 326 1400
