LME LUU Linear Rail Bearing
LME LUU Linear Rail Bearing
LME LUU Linear Rail Bearing
LME LUU Linear Rail Bearing
LME LUU Linear Rail Bearing
LME LUU Linear Rail Bearing
Specifications
Brand Name :
SGC
Model Number :
LME...LUU, LME...LAJ, LME...LOP
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
30 days
Packaging Details :
1*1 Plastic+Individual Box+Outer Carton+Pallet
Product Name :
Linear Motion Ball Bearing
Type :
Linear
Shell :
GCr15 Chrome Steel, Hardened, Precision Ground
Cage :
Nylon
Balls :
GCr15 Chrome Steel, Hardened ,Precision Ground
Hardeness :
HRC60-65
Features :
Open and Closed Type
Shaft Dia :
8mm-60mm
Outer Dia. :
16mm-90mm
Length :
45mm-211mm
Packing :
1*1 Plastic bag+Individual box+ Outer Carton
Service :
OEM or Customized Service
Sample :
Free
Applications :
Industrial Equipment, Sport Goods, Medical Equipment, 3D Printer, Food Processing Equipment
Description

Linear Rail Bearing with Prolonged Length for Linear Shaft LME LUU Series

Open & Closed Type-Metric

Linear motion is the most basic of all motion. Linear ball bearings provide linear movement in one direction.
A roller bearing, carries a load by placing rolling balls or rollers between two bearing rings called races. These bearings are comprised of an outer ring and several rows of balls retained by cages. Roller bearings are manufactured in two styles: ball slides and roller slides.

• GCr15 Chrome Steel

• Nylon Retainer

• LME...LUU, LME...LAJ, LME...LOP

Applications:

Linear bearings and linear bearing and housing units are available in the compact, light, heavy duty, machined and plain bearing range. The bearings can support high loads while having a relatively low mass and allow the construction of linear guidance systems with unlimited travel.
Each series has quite specific characteristics that makes it particularly suitable for certain applications. These may include, for example, requirements for compensation of misalignments, low-friction running, high accelerations and travel speeds or long operating life.
The range, which has been constructed and expanded in accordance with a modular concept, provides the best technical and economic solution, in relation to each application, for bearing arrangements with shaft guidance systems.

The linear bearing is applying for electronic equipment, tensile testing machine and digital 3D coordinate measuring equipment, automatic punching machine, 3D printer, card sorting machine, Medical Equipment, food processing Machinery, etc..

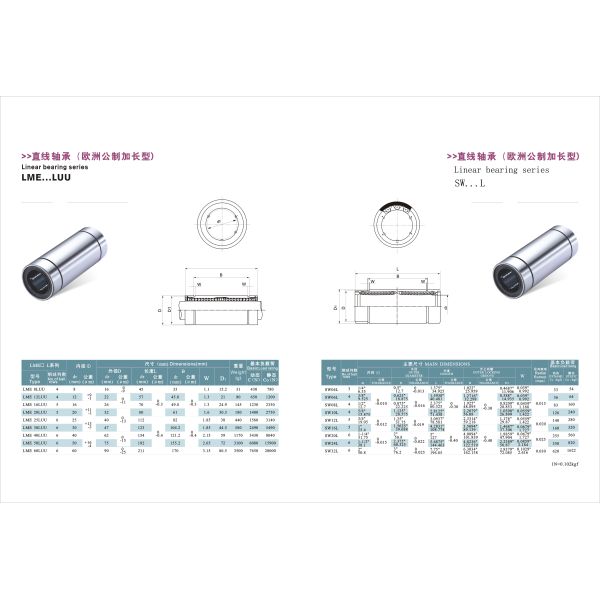

Model No
Ball circuit
weight(gf)
Inscribed clecle diameter
Outer diameter
Length
B
W
D1
Eccentricity (max)
µm
Radial clearance tolerance
Basicload rating
dr
Tolerance
D
Tolerance
L
Tolerance
Tolerance
CN
CoN
LME8LUU
4
31
8
+0.009
-0.001
16
0
-0.009
45
0
-0.3
33
0
-0.3
1.1
15.2
15
15
431
784
LME12LUU
4
80
12
22
0
-0.011
57
45.8
1.3
21
657
1200
LME16LUU
5
145
16
+0.011
-0.001
26
70
49.8
1.3
24.9
1230
2350
LME20LUU
5
180
20
32
0
-0.013
80
61
1.6
30.5
17
20
1400
2750
LME25LUU
6
440
25
+0.013
-0.002
40
112
0
-0.4
82
0
-0.4
1.85
38
1560
3140
LME30LUU
6
580
30
47
123
104.2
1.85
44.5
2490
5490
LME40LUU
6
1170
40
+0.016
-0.004
62
0
-0.015
154
121.2
2.15
59
20
25
3430
8040
LME50LUU
6
3100
50
75
192
155.2
2.65
72
6080
15900
LME60LUU
6
3500
60
90
0
-0.020
211
170
3.15
86.5
25
7650
200000
