Closed Type Square Flange LMK Linear Bearing And Guideway
Closed Type Square Flange LMK Linear Bearing And Guideway
Closed Type Square Flange LMK Linear Bearing And Guideway
Closed Type Square Flange LMK Linear Bearing And Guideway
Closed Type Square Flange LMK Linear Bearing And Guideway
Closed Type Square Flange LMK Linear Bearing And Guideway
Specifications
Brand Name :
SGC
Model Number :
LMK...UU
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
30 days
Packaging Details :
1*1 Plastic+Individual Box+Outer Carton+Pallet
Product Name :
Linear Motion Ball Bearing
Type :
Linear
Shell :
GCr15 Chrome Steel, Hardened, Precision Ground
Cage :
Nylon
Balls :
GCr15 Chrome Steel, Hardened ,Precision Ground
Hardeness :
HRC60-65
Features :
Closed Type
Shaft Dia :
6mm-100mm
Outer Dia. :
12mm-150mm
Length :
19mm-175mm
Packing :
1*1 Plastic bag+Individual box+ Outer Carton
Service :
OEM or Customized Service
Sample :
Free
Applications :
Industrial Equipment, Sport Goods, Medical Equipment, 3D Printer, Food Processing Equipment
Description

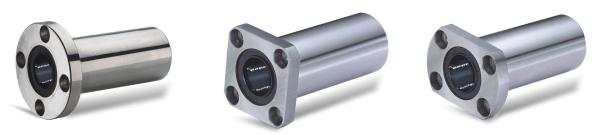

Square Flange Linear Slide Ball Bearing LMK Series

Closed Type-Metric

Linear motion is the most basic of all motion. Linear ball bearings provide linear movement in one direction.
A roller bearing, carries a load by placing rolling balls or rollers between two bearing rings called races. These bearings are comprised of an outer ring and several rows of balls retained by cages. Roller bearings are manufactured in two styles: ball slides and roller slides.

• GCr15 Chrome Steel

• Nylon Retainer

• LMF...UU, LMH...UU, LMK...UU

Applications:

The linear bearing is applying for electronic equipment, tensile testing machine and digital 3D coordinate measuring equipment, automatic punching machine, 3D printer, card sorting machine, Medical Equipment, food processing Machinery, etc..

型号 球列数 重量(G) 许用直径公差(μ m) 基本负载率 内径
圆法兰型 方法兰型 椭圆法兰型 动态C(N) 静态Co(N) dr(mm) 公差(μ m)
LMF 6UU LMK 6UU LMH 6UU 4 26.5 -5 200 260 6 0
-9
LMF 8sUU LMK 8sUU —— 4 34 -5 170 220 8
LMF 8UU LMK 8UU LMH 8UU 4 40 -5 260 400 8
LMF 10UU LMK 10UU LMH 10UU 4 78 -5 370 540 10
LMF 12UU LMK 12UU LMH 12UU 4 76 -5 410 590 12
LMF 13UU LMK 13UU LMH 13UU 4 94 -7 500 770 13
LMF 16UU LMK 16UU LMH 16UU 5 134 -7 770 1170 16
LMF 20UU LMK 20UU LMH 20UU 5 180 -9 860 1370 20 0
-10
LMF 25UU LMK 25UU LMH 25UU 6 340 -9 980 1560 25
LMF 30UU LMK 30UU LMH 30UU 6 460 -9 1560 2740 30
LMF 35UU LMK 35UU —— 6 795 -13 1660 3130 35 0
-12
LMF 40UU LMK 40UU —— 6 1054 -13 2150 4010 40
LMF 50UU LMK 50UU —— 6 2200 -13 3820 7930 50
LMF 60UU LMK 60UU —— 6 2960 -16 4700 9990 60 0
-15
LMF 80U LMK 80U —— 6 5800 -20 7350 16000 80
LMF 100UU LMK 100UU —— 6 10600 -30 14100 34800 100 0
-20
注:另有LMF...LUU LMK...LUU LMH...LUU(加长型)

尺寸(mm) 型号
外径D 长度L D1 H PCD K W A F 直角度
(μ m)		 d1*d2*d3
(mm) 公差(μ m) (mm) 公差(mm) (mm) (mm)
12 0
-11		 19 0
-0.2		 28 0
-0.2		 5 20 22 18 20 —— 12 3.4*6.5*3.3 LMF/K/H 6UU
15 17 32 5 24 25 —— —— —— 12 3.4*6.5*3.3 LMF/K/H 8SUU
15 24 32 5 24 25 21 24 —— 12 3.4*6.5*3.3 LMF/K/H 8UU
19 0
-13		 29 40 6 29 30 25 29 —— 12 4.5*8*4.4 LMF/K/H 10UU
21 30 42 6 32 32 27 32 —— 12 4.5*8*4.4 LMF/K/H 12UU
23 32 43 6 33 34 29 33 —— 12 4.5*8*4.4 LMF/K/H 13UU
28 37 48 6 38 37 34 31 22 12 4.5*8*4.4 LMF/K/H 16UU
32 0
-16		 42 54 8 43 42 38 36 24 15 5.5*9.5*5.4 LMF/K/H 20UU
40 59 0
-0.3		 62 8 51 50 46 40 32 15 5.5*9.5*5.4 LMF/K/H 25UU
45 64 74 10 60 58 51 49 35 15 6.6*11*6.5 LMF/K/H 30UU
52 0
-19		 70 82 10 67 64 —— —— —— 20 6.6*11*6.5 LMF/K/H 35UU
60 80 96 0
-0.3		 13 78 75 —— —— —— 20 9*14*8.6 LMF/K/H 40UU
80 100 116 13 98 92 —— —— —— 20 9*14*8.6 LMF/K/H 50UU
90 0
-22		 110 134 18 112 106 —— —— —— 25 11*17.5*10.8 LMF/K/H 60UU
120 0
-25		 140 0
-0.5		 164 18 142 136 —— —— —— 30 11*17*11.1 LMF/K/H 80UU
150 0
-29		 175 200 0
-0.5		 20 175 170 —— —— —— 40 14*20*13.1 LMF/K/H 100UU

Closed Type Square Flange LMK Linear Bearing And Guideway

Closed Type Square Flange LMK Linear Bearing And Guideway

Closed Type Square Flange LMK Linear Bearing And Guideway
