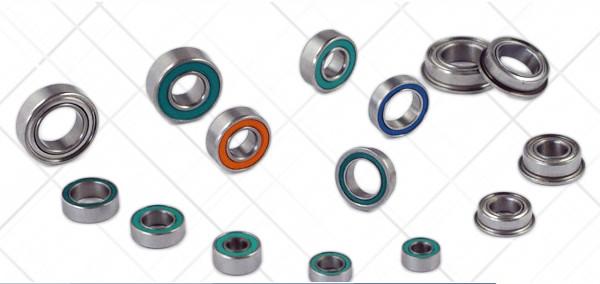

SMR104C Ball type Fishing Reel Hybrid Ceramic Bearings
SMR104C Ball type Fishing Reel Hybrid Ceramic Bearings
SMR104C Ball type Fishing Reel Hybrid Ceramic Bearings
SMR104C Ball type Fishing Reel Hybrid Ceramic Bearings
SMR104C Ball type Fishing Reel Hybrid Ceramic Bearings
SMR104C Ball type Fishing Reel Hybrid Ceramic Bearings
Specifications
Brand Name :
SGC
Model Number :
SMR104C
Certification :
RoHS
Place of Origin :
Fuzhou, China
MOQ :
100 PCS
Price :
Get The Latest Price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
10-45 days upon receipt of official order
Packaging Details :
plastic tube+box, or according to requested by clients
Product name :
Hybrid ceramic ball bearing
Number of row :
Single Row
Type :
Ball
Structure :
Deep Groove
Races :
Stainless Steel AISI440C
Balls :
Si3N4 Ceramic
Precision Rating :
ABEC-3, ABEC-5
Clearance :
C0, C3
Bore size :
4 mm
Seals Type :
Removable Steel Shields with Snap Rings
Retainers :
Crown Type
Lubrication :
Shell Alivania R2, ESSO Beacon 325, Chevron SRI-2, Mobil 28, Kluber, Kyodo Yushi, etc.
Application :
Machinery,Bicycles,Skateboard/roller skate/finger skateboard,Fly fishing reels,RC Models & Hobbies
Package :
Plastic Tube+Box
Service :
OEM Customized Services
Feature :
Long Life /High Speed/Smooth/low noise
Description

Durable Fishing Reel Bearings for Fishing Equipment with Si3N4 Ceramic Balls​

Open/Rubber Seal/Shield Type-Ceramic Balls

Hybrid Ceramic Ball Bearing Models:

SMR73C, SMR693C, SMR105C, SMR74C, SMR104C, SMR85C, SMR95C, SMR115C, SMR117C, SMR147C, SMR697C, SMR128C, SMR137C, SMR148C, SR2C, SR3C, SMR699C, SMR689C, SMR688C, etc..

Load Rating & Life:

SGC miniature bearings are manufactured with state-of-the-art technologies.Therefore,the rated dynamic load of the productions is 30% higher than the rated dynamic load regulated by the ISO281/1 Standards;the rated static load complies with the ISO76 Standards.Customers may calculate the service life of the bearings according to the method provided by ISO281/1 Standards.

Lubrications:

Before SGC miniature bearings leave factory,the open bearing is filled with meter anti-rust oil only;while the shielded bearing has been filled with general bearing grease,which makes it suitable for light and medium load as well as low and medium speed applications, with a working temperature ranging from -30℃～100℃.If the bearings are applied beyond the above conditions, other special grease or lubricating methods shall be employed.

Company Brand

Designation Dropping tem. Penetration Woring Tem. Remarks
Shell Alivania RL2 185 265-295 -35~120 General purpose
Alivania RL3 185 220-250 -35~135
Alivania RA 180 250-275 -25~100
Alivania EP1 180 310-340 -25~110
Alivania EP2 185 265-295 -25~110
Darina 2 250 265-295 -25~150 high Tem. service
Darina EP2 250 265-295 -25~150
Dolium R2 250 265-295 -35~150 corrosion resistnat
Esso Andok C 260 190-210 -30~120 General purpose
Andok 260 190 204-260 -40~120
Beacon 325 190 255-280 -54~120 low Tem. service
Chevron SRI-2 240 255-280 -30~120 water resistnat
Mobil Moilux 2 190 265-290 -10~110 General purpose
Mobil 22 192 260-274 -40~120
Mobil 28 260 265-295 -55~175 wide range Tem. service
Mobil 48 260 240-270 -60~170 high Tem. service
Kluber Isoflex LDS 18 190 255-280 -50~110 low Tem. service
Isoflex NBU 15 250 255-280 -30~120 General purpose
Kyodo Yushi Multemp SRL 185 225-245 -40~145 low torque service
Multemp PS2 190 250-275 -50~110 low Tem. service
Multemp ET150 260 255-280 -10~160 　
China Hangu Hangu 2 198 265-295 -10~130 low noise service
