HRC 60 Yoke Type Track Roller
HRC 60 Yoke Type Track Roller
HRC 60 Yoke Type Track Roller
HRC 60 Yoke Type Track Roller
HRC 60 Yoke Type Track Roller
HRC 60 Yoke Type Track Roller
Specifications
Brand Name :
SGC
Model Number :
(R)STO
Certification :
ISO9001
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
10-30 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Product Name :
Yoke-Type Cam Followers
Type :
Yoke-Type
Rollers :
GCr15 Chrome Steel, Hardened , Precision Ground
Races :
GCr15 Chrome Steel, Hardened , Precision Ground
Cage :
Steel Cage, Nylon Cage optional
Surface Treatment :
Chromoly Heat Treated, or Black Coated Optional
Lubrication :
Grease
Hardenedness :
HRC60~65
Outer Dia. :
16 mm - 90 mm
Packing :
1*1 Plastic Bag+Box+Outer Carton, or according to requirement
Service :
OEM Or Customized Drawings is Available
Samples :
Free
Description

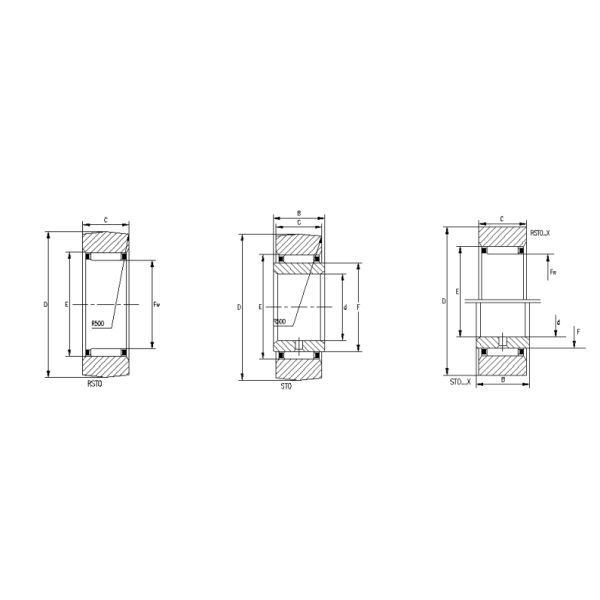

Yoke Type Track Roller Needle Bearings with or Without Inner Ring RSTO/STO Series

Yoke-Type-Metric

Materials:

• 52100 Hardened Chrome Steel Needle Bearing

• 52100 Hardened Chrome Steel Outer Ring

Features:

• The bearing has heavy duty radial and axial play.

• The bearing has better impact resistance, corrosion resistance, and wear resistance.
Note:

• Chromoly hardened treatment, or black coated optional.

• Stainless Steel is available.


Outside

Diameter


Bearing No. & Mass Approx.
Boundary Dimensions
Basic Load Rating


Limiting

Speed
Without IR
Mass
With IR
Mass		 D d

FW		 B C E Cr
Dynamic		 Cor
Static		 Grease
mm g g mm N rpm
16 RSTO 5 TN 8.5 -- -- 16 -- 7 -- 7.8 10 2800 2600 23000
RSTO 5 TN X 8.5 -- -- 16 -- 7 -- 7.8 10 2800 2600 23000
19 RSTO 6 TN 12.5 STO 6 TN 17 19 6 10 10 9.8 13 4700 5450 20000
RSTO 6 TN X 12.5 STO 6 TN X 17 19 6 10 10 9.8 13 4700 5450 20000
24 RSTO 8 TN 21 STO 8 TN 26 24 8 12 10 9.8 15 4800 6000 16000
RSTO 8 TN X 21 STO 8 TN 26 24 8 12 10 9.8 15 4800 6000 16000
30 RSTO 10 42 STO 10 49 30 10 14 12 11.8 20 10200 10500 11000
RSTO 10 X 42 STO 10 X 49 30 10 14 12 11.8 20 10200 10500 11000
32 RSTO 12 49 STO 12 57 32 12 16 12 11.8 22 11300 12300 9000
RSTO 12 X 49 STO 12 X 57 32 12 16 12 11.8 22 11300 12300 9000
35 RSTO 15 50 STO 15 63 35 15 20 12 11.8 26 13200 16000 6500
RSTO 15 X 50 STO 15 X 63 35 15 20 12 11.8 26 13200 16000 6500
40 RSTO 17 88 STO 17 107 40 17 22 16 15.8 29 19800 25300 5500
RSTO 17 X 88 STO 17 X 107 40 17 22 16 15.8 29 19800 25300 5500
47 RSTO 20 130 STO 20 152 47 20 25 16 15.8 32 20800 27800 4700
RSTO 20 X 130 STO 20 X 152 47 20 25 16 15.8 32 20800 27800 4700
52 RSTO 25 150 STO 25 177 52 25 30 16 15.8 37 23000 33400 3600
RSTO 25 X 150 STO 25 X 177 52 25 30 16 15.8 37 23000 33400 3600
62 RSTO 30 255 STO 30 308 62 30 38 20 19.8 46 35200 56700 2500
RSTO 30 X 255 STO 30 X 308 62 30 38 20 19.8 46 33200 56700 2500
72 RSTO 35 375 STO 35 441 72 35 42 20 19.8 50 35800 58800 2200
RSTO 35 X 375 STO 35 X 441 72 35 42 20 19.8 50 35800 58800 2200
80 RSTO 40 420 STO 40 530 80 40 50 20 19.8 58 35200 61800 1700
RSTO 40 X 420 STO 40 X 530 80 40 50 20 19.8 58 35200 61800 1700
85 RSTO 45 453 STO 45 576 85 45 55 20 19.8 63 38900 73900 1500
RSTO 45 X 453 STO 45 X 576 85 45 55 20 19.8 63 38900 73900 1500
90 RSTO 50 481 STO 50 617 90 50 60 20 19.8 68 43300 84800 1300
RSTO 50 X 481 STO 50 X 617 90 50 60 20 19.8 68 43300 84800 1300

HRC 60 Yoke Type Track Roller

HRC 60 Yoke Type Track Roller
