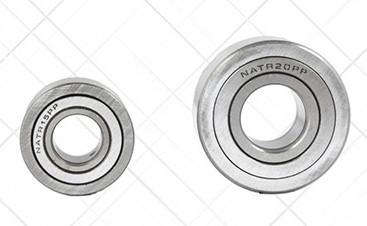

90mm Yoke Type NATR Track Rollers Cam Followers
90mm Yoke Type NATR Track Rollers Cam Followers
90mm Yoke Type NATR Track Rollers Cam Followers
90mm Yoke Type NATR Track Rollers Cam Followers
Specifications
Brand Name :
SGC
Model Number :
NATR, NATV, NATR...PP, NATV...PP
Certification :
ISO9001
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
10-30 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Product Name :
Yoke-Type Cam Followers
Type :
Yoke-Type
Rollers :
GCr15 Chrome Steel, Hardened , Precision Ground
Races :
GCr15 Chrome Steel, Hardened , Precision Ground
Cage :
Steel Cage, Nylon Cage optional
Surface Treatment :
Chromoly Heat Treated, or Black Coated Optional
Lubrication :
Grease
Hardenedness :
HRC60~65
Outer Dia. :
16 mm - 90 mm
Packing :
1*1 Plastic Bag+Box+Outer Carton, or according to requirement
Service :
OEM Or Customized Drawings is Available
Samples :
Free
Description

NATR Track Roller Bearing Cam Follower with Rubber Seals

Yoke-Type-Metric

Materials:

• 52100 Hardened Chrome Steel Needle Bearing

• 52100 Hardened Chrome Steel Outer Ring

Features:

• The bearing has heavy duty radial and axial play.

• The bearing has better impact resistance, corrosion resistance, and wear resistance.
Note:

• Chromoly hardened treatment, or black coated optional.

• Stainless Steel is available.


Outside Dia.
Bearing No. & Mass Approx.
Boundary Dimensions
Basic Load Rating


Limiting

Speed

Without Seal
Mass
With Seal
Mass		 d D B C d1 Cr
Dynamic		 Cor
Static
Grease
mm g g mm N rpm
16 NATR 5 14 NATR 5 PP 14 5 16 12 11 12 3050 3000 22000
NATV 5 15 NATV 5 PP 15 5 16 12 11 12 4500 6300 8500
19 NATR 6 20 NATR 6 PP 20 6 19 12 11 14 3600 3650 20000
NATV 6 21 NATV 6 PP 21 6 19 12 11 14 5700 8700 7000
24 NATR 8 41 NATR 8 PP 41 8 24 15 14 19 4500 5400 5000
NATV 8 42 NATV 8 PP 42 8 24 15 14 19 8600 12000 5500
30 NATR 10 64 NATR 10 PP 64 10 30 15 14 23 6100 7800 11000
NATV 10 65 NATV 10 PP 65 10 30 15 14 23 10900 17000 4500
32 NATR 12 71 NATR 12 PP 71 12 32 15 14 25 6600 9800 9000
NATV 12 72 NATV 12 PP 72 12 32 15 14 25 11800 19000 3900
35 NATR 15 103 NATR 15 PP 103 15 35 19 18 27 10500 17500 7000
NATV 15 105 NATV 15 PP 105 15 35 19 18 27 16000 32500 3400
40 NATR 17 144 NATR 17 PP 144 17 40 21 20 32 11800 19400 6000
NATV 17 152 NATV 17 PP 152 17 40 21 20 32 19600 37000 2900
47 NATR 20 246 NATR 20 PP 246 20 47 25 24 37 17500 29800 4900
NATV 20 254 NATV 20 PP 254 20 47 25 24 37 25800 57000 2600
52 NATR 25 275 NATR 25 PP 275 25 52 25 24 42 19500 36500 3600
NATV 25 285 NATV 25 PP 285 25 52 25 24 42 29000 69600 2100
62 NATR 30 470 NATR 30 PP 470 30 62 29 28 51 31000 57500 2600
NATV 30 481 NATV 30 PP 481 30 62 29 28 51 45500 104000 1700
72 NATR 35 635 NATR 35 PP 635 35 72 29 28 58 34500 67500 2000
NATV 35 647 NATV 35 PP 647 35 72 29 28 58 50800 109500 1400
80 NATR 40 805 NATR 40 PP 805 40 80 32 30 66 47000 91500 1700
NATV 40 890 NATV 40 PP 890 40 80 32 30 66 64000 139000 1300
85 NATR 45 910 NATR 45 PP 910 45 85 32 30 72 49100 98000 1500
90 NATR 50 960 NATR 50 PP 960 50 90 32 30 76 50500 10600 1300
NATV 50 990 NATV 50 PP 990 50 90 32 30 76 69500 187000 1000

90mm Yoke Type NATR Track Rollers Cam Followers
90mm Yoke Type NATR Track Rollers Cam Followers
