SGC NA22 Series Yoke Cam Follower Roller Bearing
SGC NA22 Series Yoke Cam Follower Roller Bearing
SGC NA22 Series Yoke Cam Follower Roller Bearing
SGC NA22 Series Yoke Cam Follower Roller Bearing
SGC NA22 Series Yoke Cam Follower Roller Bearing
SGC NA22 Series Yoke Cam Follower Roller Bearing
Specifications
Brand Name :
SGC
Model Number :
(R)NA22...-2RS
Certification :
ISO9001
Place of Origin :
Fuzhou, China
MOQ :
10 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
10-30 days
Packaging Details :
Neutral Pack+Outer Carton+Pallet
Product Name :
Yoke-Type Cam Followers
Type :
Yoke-Type
Rollers :
GCr15 Chrome Steel, Hardened , Precision Ground
Races :
GCr15 Chrome Steel, Hardened , Precision Ground
Cage :
Steel Cage, Nylon Cage optional
Surface Treatment :
Chromoly Heat Treated, or Black Coated Optional
Lubrication :
Grease
Hardenedness :
HRC60~65
Outer Dia. :
19 mm - 90 mm
Packing :
1*1 Plastic Bag+Box+Outer Carton, or according to requirement
Service :
OEM Or Customized Drawings is Available
Samples :
Free
Description

Yoke Type Sealed Cam Follower Bearings NA22 Series

Yoke-Type-Metric

Materials:

• 52100 Hardened Chrome Steel Needle Bearing

• 52100 Hardened Chrome Steel Outer Ring

Features:

• The bearing has heavy duty radial and axial play.

• The bearing has better impact resistance, corrosion resistance, and wear resistance.
Note:

• Chromoly hardened treatment, or black coated optional.

• Stainless Steel is available.

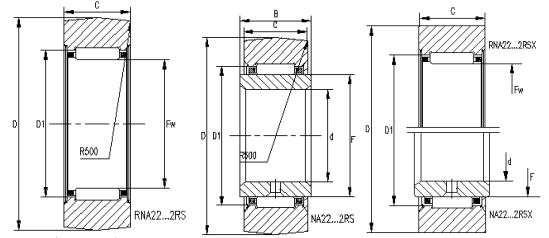

Outside Dia.
Bearing No. & Mass Approx.
Boundary Dimensions


Basic Load

Rating


Limiting

Speed

Without IR
Mass
With IR
Mass		 D d

FW		 B C E Cr
Dynamic		 Cor
Static
Grease
mm g g mm N rpm
19 RNA 22/6.2RS 18 NA 22/6.2RS 22 19 6 10 12 11.8 16 5000 4350 18000
RNA 22/6.2RS X 18 NA 22/6.2RS X 22 19 6 10 12 11.8 16 5000 4350 18000
24 RNA 22/8.2RS 29 NA 22/8.2RS 34 24 8 12 12 11.8 18 5500 5200 14000
RNA 22/8.2RS X 29 NA 22/8.2RS X 34 24 8 12 12 11.8 18 5500 5200 14000
30 RNA 2200.2RS 52 NA 2200.2RS 60 30 10 14 14 13.8 20 7600 8100 11000
RNA 2200.2RS X 52 NA 2200.2RS X 60 30 10 14 14 13.8 20 7600 8100 11000
32 RNA 2201.2RS 57 NA 2201.2RS 67 32 12 16 14 13.8 22 8500 9700 9500
RNA 2201.2RS X 57 NA 2201.2RS X 67 32 12 16 14 13.8 22 8500 9700 9500
35 RNA 2202.2RS 60 NA 2202.2RS 75 35 15 20 14 13.8 26 9600 12000 7000
RNA 2202.2RS X 60 NA 2202.2RS X 75 35 15 20 14 13.8 26 9600 12000 7000
40 RNA 2203.2RS 94 NA 2203.2RS 112 40 17 22 16 15.8 28 12000 16500 6000
RNA 2203.2RS X 94 NA 2203.2RS X 112 40 17 22 16 15.8 28 12000 16500 6000
47 RNA 2204.2 RS 152 NA 2204.2RS 177 47 20 25 18 17.8 33 18500 21900 4600
RNA 2204.2RS X 152 NA 2204.2RS X 177 47 20 25 18 17.8 33 18500 21900 4600
52 RNA 2205.2RS 179 NA 2205.2RS 209 52 25 30 18 17.8 38 20100 26000 3500
RNA 2205.2RS X 179 NA 2205.2RS X 209 52 25 30 18 17.8 38 20100 26000 3500
62 RNA 2206.2RS 284 NA 2206.2RS 324 62 30 35 20 19.8 43 23000 28000 2800
RNA 2206.2RS X 284 NA 2206.2RS X 324 62 30 35 20 19.8 43 23000 28000 2800
72 RNA 2207.2RS 432 NA 2207.2RS 505 72 35 42 23 22.7 50 29800 46300 2200
RNA 2207.2RS X 432 NA 2207.2RS X 505 72 35 42 23 22.7 50 29800 46300 2200
80 RNA 2208.2RS 530 NA 2208.2RS 628 80 40 48 23 22.7 57 38200 57700 1700
RNA 2208.2RS X 530 NA 2208.2RS X 628 80 40 48 23 22.7 57 38200 57700 1700
85 RNA 2209.2RS 545 NA 2209.2RS 655 85 45 52 23 22.7 62 40300 63800 1600
RNA 2209.2RS X 545 NA 2209.2RS X 655 85 45 52 23 22.7 62 40300 63800 1600
90 RNA 2210.2RS 563 NA 2210.2RS 690 90 50 58 23 22.7 68 42100 66000 1300
RNA 2210.2RS X 563 NA 2210.2RS X 690 90 50 58 23 22.7 68 42100 66000 1300
