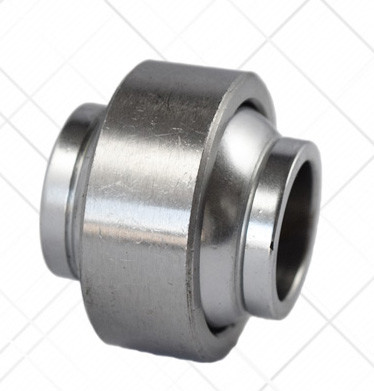

PTFE Lined Spherical Ball Bearing
PTFE Lined Spherical Ball Bearing
PTFE Lined Spherical Ball Bearing
PTFE Lined Spherical Ball Bearing
Specifications
Brand Name :
SGC
Model Number :
YPB Series
Place of Origin :
Fuzhou, China
MOQ :
500 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
200000PCS per month
Delivery Time :
45 days
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Product name :
Two-Piece Commercial Spherical Plain Bearing
Ball :
GCr15 Bearing Steel，Chrome Plated, Heat Treated
Precision Rate :
Precision Ground
Race :
Carbon Steel, Heat Treated
Liner :
PTFE Lined, Metal-to-Metal Optional
Sample :
Available
Packing :
As your requirement
OEM :
Accept Customized Order
Description

High Misalignment Narrow Spherical Bearing with Tighter Tolerances YPB Series PTFE Lined Type-Inch

• Race: Carbon Steel, Heat Treated, Hard Chrome Plated, Precision Ground
• Ball: 52100 Bearing Steel Heat-Treated, Hard Chrome Plated, Precision Ground
• Liner: PTFE Lined, Metal-to-Metal Optional

• Tolerance: This bearing has tighter tolerances than traditional rod end.

Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication.

Part
Number		 Boundary Dimensions
(inch)		 Misalign.
Angle
aº		 Radial
Static
Load
(lbs)		 Net Weight
(lbs)
B
+ .0000
- .0005		 D
+ .0000
- .0007		 T
± .005		 W
+ .000
- .005		 0
Flat Dia
Ref.		 M
Cham.
Ref.		 Ball
Dia.
Ref
YPB4T 0.25 0.74 0.255 0.593 0.39 0.02 0.593 24 7560 0.04
YPB5T 0.3125 0.906 0.345 0.813 0.512 0.03 0.781 23 16975 0.07
YPB6T 0.375 0.906 0.345 0.813 0.512 0.03 0.781 23 16975 0.07
YPB7T 0.4375 1 0.345 0.875 0.618 0.03 0.875 22 19018 0.1
YPB8T 0.5 1.125 0.401 0.937 0.73 0.03 1 20 25263 0.16
YPB10T 0.625 1.375 0.567 1.2 0.856 0.03 1.25 20 44651 0.25
YPB12T 0.75 1.5625 0.62 1.28 0.97 0.035 1.325 18 53507 0.32

PTFE Lined Spherical Ball Bearing

PTFE Lined Spherical Ball Bearing
