Specifications
Brand Name :
SGC
Model Number :
GEEW...ES
Certification :
ISO9001
Place of Origin :
Fuzhou, China
MOQ :
50 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
100000PCS per month
Delivery Time :
30-45 days
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Product name :
Radial Spherical Plain Bearing
Ball :
Carbon Chromium Steel，Hardened, Phosphated
Precision Rate :
Precision Ground
Race :
Carbon Chromium Steel, Fractured, Hardened, Phosphated
Liner :
Metal-to-Metal
Sample :
Available
Packing :
As your requirement
OEM :
Accept Customized Order
Description

Maintenance Free Spherical Plain Radial Bearing with Cylindrical Extension at Either Side of Inner Ring GEEW ES

Metal-to-Metal Type-Metric

• Race:

Carbon Chromium Steel

Fractured

Heat Treated

Phosphated

Annular Groove and Oil Hole

Precision Ground
• Ball:

Carbon Chromium Steel

Heat-Treated

Phosphated

Precision Ground
• Liner: Metal-to-Metal

Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication.

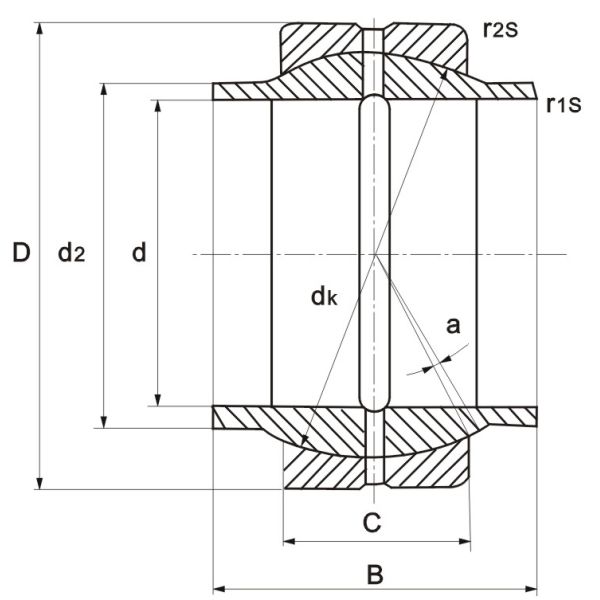

Part Number
Boundary Dimensions
(mm)
Load ratings
(kN)
Net Weight
(kg)
Metal-to-Metal d D B C d2
max		 dk r1s
min 		r2s
min 		α˚
Dynamic
Static
GEEW12ES* 12 22 12 7 15.5 18 0.3 0.3 4 10 53 0.017
GEEW15ES 15 26 15 9 18.5 22 0.3 0.3 5 16 84 0.028
GEEW16ES 16 28 16 9 20 23 0.3 0.3 4 17 85 0.034
GEEW17ES 17 30 17 10 21 25 0.3 0.3 7 21 106 0.043
GEEW20ES 20 35 20 12 25 29 0.3 0.3 4 30 146 0.069
GEEW25ES 25 42 25 16 30.5 35.5 0.6 0.6 4 48 240 0.124
GEEW30ES 30 47 30 18 34 40.7 0.6 0.6 4 62 310 0.159
GEEW32ES 32 52 32 18 37 43 0.6 1 4 65 328 0.207
GEEW35ES 35 55 35 20 40 47 0.6 1 4 79 399 0.248
GEEW40ES 40 62 40 22 46 53 0.6 1 4 99 495 0.349
GEEW45ES 45 68 45 25 52 60 0.6 1 4 127 637 0.468
GEEW50ES 50 75 50 28 57 66 0.6 1 4 156 780 0.62
GEEW60ES 60 90 60 36 68 80 1 1 4 245 1220 1.11
GEEW63ES 63 95 63 36 71.5 83 1 1 4 253 1260 1.27
GEEW70ES 70 105 70 40 78 92 1 1 4 313 1560 1.69
GEEW80ES 80 120 80 45 91 105 1 1 4 400 2000 2.55
GEEW90ES 90 130 90 50 99 115 1 1 4 488 2440 3.04
GEEW100ES 100 150 100 55 113 130 1 1 4 607 3030 4.87
GEEW110ES 110 160 110 55 124 140 1 1 4 654 3270 5.53
GEEW125ES 125 180 125 70 138 160 1 1 4 950 4750 8.19
GEEW160ES 160 230 160 80 177 200 1 1 4 1360 6800 15.8
GEEW200ES 200 290 200 100 221 250 1.1 1.1 4 2120 10600 31.7
GEEW250ES 250 400 250 120 317 350 1.1 1.1 4 3750 17800 101
GEEW320ES 320 520 320 160 405 450 1.1 1.1 4 6200 30500 225
