CM Series Carbon Steel SGC Male Rod End For Low Load
CM Series Carbon Steel SGC Male Rod End For Low Load
CM Series Carbon Steel SGC Male Rod End For Low Load
CM Series Carbon Steel SGC Male Rod End For Low Load
Specifications
Brand Name :
SGC
Model Number :
CM Series
Place of Origin :
Fuzhou, China
MOQ :
500 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
200000PCS per month
Delivery Time :
45 days
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Product name :
Male Carbon Steel rod end
Ball :
GCr15 Bearing Steel，Chrome Plated, Heat Treated
Precision Rate :
Precision Ground
Body :
Carbon Steel, Zinc Coated
Liner :
Metal-to-Metal, optional PTFE Lined
Thread :
Male
Application :
low-load applications, such as alternator brackets, shifter rods, lift arm braces, throttle and clutch linkages
Sample :
Available
Packing :
As your requirement
OEM :
Accept Customized Order
Description

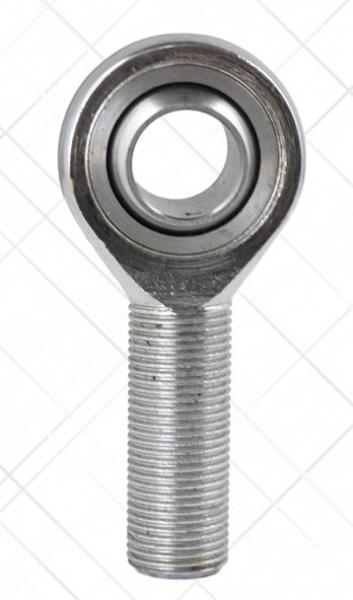

Inch Male Rod End with Precision Ground Chrome Steel Ball Eye and PTFE Liner CM Series

PTFE Lined Type-Inch

• Body: Carbon Steel Zinc Coated for Corrosion Resistance
• Ball: 52100 Bearing Steel Heat-Treated, Hard Chrome Plated, Precision Ground
• Liner: Metal-to-Metal, Optional PTFE Lined, Self-lubrication

Applications:

Low-load applications, such as alternator brackets, shifter rods, lift arm braces, throttle and clutch linkages, etc.

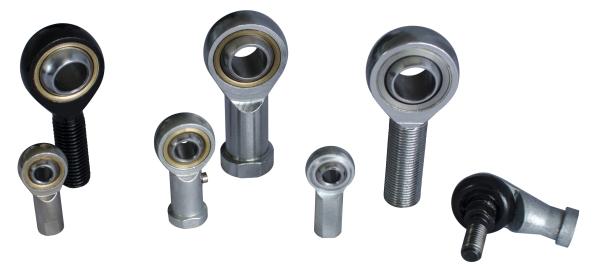

Rod end bearings are used on the ends of cylinders or linkages to take up misalignment between two connected parts. Both male and female configurations are available and offer optional lubricator fittings. Two-piece and four-piece Commercial and precision spherical bearings are offered as well. Spherical bearings are design to handle high radial loads.
The bearing's spherical outer housing minimizes friction and its a good solution to provide self lubrication.


Part Number		 Boundary Dimensions
(inch)


Thread

UNF-3A
Misalign
Angle
a°


Radial

Static

Load
(lbs)
Net Weight
(lbs)
Left Hand Right Hand B
+0.0025 -0.0005		 W
±0.005		 A
±0.015		 D Ref. Ball Dia. Ref. C
+0.062 -0.031
CML2 CMR2 0.125 0.25 0.937 0.5 0.312 0.562 6-32 UNC 22 700 0.01
CML3 CMR3 0.19 0.312 1.25 0.625 0.437 0.75 10-32 20 1558 0.03
CML3-4 CMR3-4 0.19 0.312 1.562 0.75 0.437 1 1/4-28 20 3435 0.04
CML4 CMR4 0.25 0.375 1.562 0.75 0.5 1 1/4-28 27 2835 0.04
CML4-5 CMR4-5 0.25 0.375 1.875 0.875 0.5 1.25 5/16-24 27 5534 0.06
CML5 CMR5 0.3125 0.437 1.875 0.875 0.625 1.25 5/16-24 22 4517 0.07
CML5-6 CMR5-6 0.3125 0.437 1.938 1 0.625 1.25 3/8-24 22 6853 0.1
CML6 CMR6 0.375 0.5 1.938 1 0.719 1.25 3/8-24 22 6323 0.11
CML6-7 CMR6-7 0.375 0.5 2.125 1.125 0.719 1.375 7/16-20 22 8278 0.14
CML6-8 CMR6-8 0.375 0.5 2.125 1.125 0.719 1.375 1/2-20 22 8278 0.17
CML7 CMR7 0.4375 0.562 2.125 1.125 0.812 1.375 7/16-20 21 7897 0.15
　 CMR7-6 0.4375 0.562 2.125 1.125 0.812 1.375 3/8-24 21 7897 0.13
CML7-8 CMR7-8 0.4375 0.562 2.438 1.312 0.812 1.5 1/2-20 21 11191 0.22
CML8 CMR8 0.5 0.625 2.438 1.312 0.937 1.5 1/2-20 20 10046 0.24
CML8-10 CMR8-10 0.5 0.625 2.625 1.5 0.937 1.625 5/8-18 20 11532 0.34
CML8-102 CMR8-102 0.5 1.15 2.438 1.312 0.937 1.5 1/2-20 26 10046 0.24
CML8-12 CMR8-12 0.5 0.75 2.625 1.5 1.125 1.625 3/4-16 26 11385 0.42
CML10 CMR10 0.625 0.75 2.625 1.5 1.125 1.625 5/8-18 26 11385 0.36
CML10-12 CMR10-12 0.625 0.75 2.875 1.75 1.125 1.75 3/4-16 26 16922 0.51
CML12 CMR12 0.75 0.875 2.875 1.75 1.312 1.75 3/4-16 24 15894 0.57
CMR12-757 0.75 0.875 2.875 1.75 1.312 1.75 3/4-16 24 15894 0.56
CML3-4T CMR3-4T 0.19 0.312 1.562 0.75 0.437 1 1/4-28 20 2233 0.04
CML4-5T CMR4-5T 0.25 0.375 1.875 0.875 0.5 1.25 5/16-24 27 3297 0.06
CML4T CMR4T 0.25 0.375 1.562 0.75 0.5 1 1/4-28 27 1842 0.04
CML5-6T CMR5-6T 0.3125 0.437 1.938 1 0.625 1.25 3/8-24 22 4934 0.1
CML5T CMR5T 0.3125 0.437 1.875 0.875 0.625 1.25 5/16-24 22 3297 0.07
CML6-7T CMR6-7T 0.375 0.5 2.125 1.125 0.719 1.375 7/16-20 22 5795 0.14
CML6-8T CMR6-8T 0.375 0.5 2.125 1.125 0.719 1.375 1/2-20 22 5795 0.17
CML6T CMR6T 0.375 0.5 1.938 1 0.719 1.25 3/8-24 22 4552 0.11
CML7-8T CMR7-8T 0.4375 0.562 2.438 1.312 0.812 1.5 1/2-20 21 7834 0.22
CML7T CMR7T 0.4375 0.562 2.125 1.125 0.812 1.375 7/16-20 21 5527 0.15
CML8-10T CMR8-10T 0.5 0.625 2.625 1.5 0.937 1.625 5/8-18 20 11532 0.34
CML8-12T 0.5 0.75 2.625 1.5 1.125 1.625 3/4-16 26 9563 0.42
CML8T CMR8T 0.5 0.625
