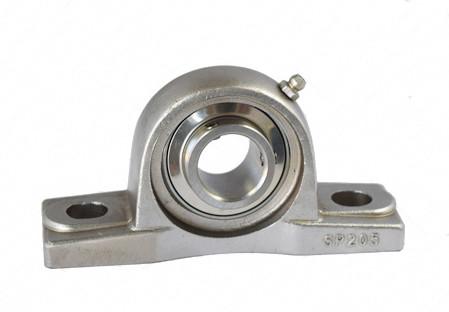

SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease
SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease
SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease
SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease
SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease
SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease
Specifications
Brand Name :
SGC
Model Number :
SSUCFC200
Place of Origin :
Fuzhou, China
MOQ :
50 PCS
Price :
Get the latest price
Payment Terms :
D/P, L/C, T/T, Western Union
Supply Ability :
50000PCS per month
Delivery Time :
45 days upon receipt of official order
Packaging Details :
1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Product name :
2 Bolt Pillow Block Bearing
Type :
stainless steel pillow block mounted bearings units
Bearing material :
Stainless steel
Precision rating :
ABEC-1 ABEC-3
Vibration :
Z1, Z1V1, Z2
Clearance :
C3,C2,C0
Hardness :
HRC58-62
Housing material :
AISI304
Color :
Silver
Cage :
Stainless Steel
Shaft Dia :
1 inch
Feature :
anti rust,Long life Low noise
Applications :
Food Processing, Chemical Processing, Canning,Bottling, and any anti-corrosion working situation
Certification :
ISO9001
Service :
OEM Customized Services
Sample :
Avaible
Description

SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease

Set Screw Type-Inch

Stainless steel pillow and mounting blocks offer both lightweight and heavy-duty mounting solution. The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• 304 Stainless Steel Block
• Stainless Steel Ball Bearings Insert-Set Screw Type

Applications:

The stainless steel bearing units can operate satisfactorily under corrosion-resistance properties, widely used in Canning industry, bottling industry, pharmaceutical industry, chemical processing, foodstuff processing machinery, etc..

SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease

SUCP205-100 2 bolt Pillow Block Bearing Lubricate with High Working Temperature Grease

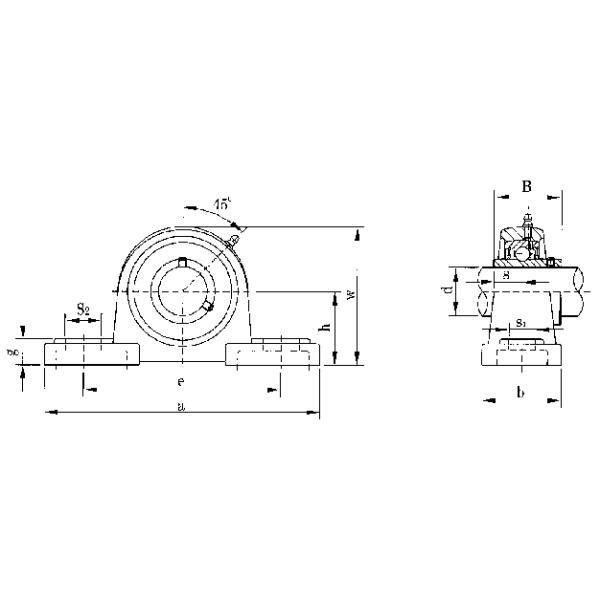

Unit No.
Shaft Dia
d
Boundary Dimensions(mm)
Bolt Size
Bearing No.
Housing

Housing No.
Mass
(kg)
(in) (mm) h a e b S2 S1 g w B S (mm) (in)
SUCP201-8 1/2 　 33.3 127 96 36 19 13 13 60 31 12.7 M10 3/8 SSUC201-8 SP203 0.75
SUCP202-9 9/16 　 SSUC202-9
SUCP202-10 5/8 　 SSUC202-10
SUCP203-11 11/16 　 SSUC203-11
SUCP201 　 12 SSUC201
SUCP202 　 15 SSUC202
SUCP203 　 17 SSUC203
SUCP204-12 3/4 　 33.3 127 95 38 19 13 14 65 31 12.7 M10 3/8 SSUC204-12 SP204 0.73
SUCP204 　 20 SSUC204
SUCP205-13 13/16 　 36.5 140 105 38 19 13 15 71 34.1 14.3 M10 3/8 SSUC205-13 SP205 0.91
SUCP205-14 7/8 　 SSUC205-14
SUCP205-15 15/16 　 SSUC205-15
SUCP205-16 1 　 SSUC205-16
SUCP205 　 25 SSUC205
SUCP206-17 1-1/16 　 42.9 165 121 48 21 17 17 83 38.1 15.9 M14 1/2 SSUC206-17 SP206 1.32
SUCP206-18 1-1/8 　 SSUC206-18
SUCP206-19 1-3/16 　 SSUC206-19
SUCP206-20 1-1/4 　 SSUC206-20
SUCP206 　 30 SSUC206
SUCP207-20 1-1/4 　 47.6 167 127 48 21 17 18 93 42.9 17.5 M14 1/2 SSUC207-20 SP207 1.72
SUCP207-21 1-5/16 　 SSUC207-21
SUCP207-22 1-3/8 　 SSUC207-22
SUCP207-23 1-7/16 　 SSUC207-23
SUCP207 　 35 SSUC207
SUCP208-24 1-1/2 　 49.2 184 137 54 21 17 18 98 49.2 19 M14 1/2 SSUC208-24 SP208 2.14
SUCP208-25 1-9/16 　 SSUC208-25
SUCP208 　 40 SSUC208
SUCP209-26 1-5/8 　 54 190 146 54 21 17 20 106 49.2 19 M14 1/2 SSUC209-26 SP209 2.45
SUCP209-27 1-11/16 　 SSUC209-27
SUCP209-28 1-3/4 　 SSUC209-28
SUCP209 　 45 SSUC209
SUCP210-29 1-13/16 　 57.2 206 159 60 25 20 21 114 51.6 19 M16 5/8 SSUC210-29 SP210 3.1
SUCP210-30 1-7/8 　 SSUC210-30
SUCP210-31 1-15/16 　 SSUC210-31
SUCP210-32 2 　 SSUC210-32
SUCP210 　 50 SSUC210
SUCP211-32 2 　 63.5 219 171 60 25 20 23 126 55.6 22.2 M16 5/8 SSUC211-32 SP211 3.85
SUCP211-33 2-1/16 　 SSUC211-33
SUCP211-34 2-1/8 　 SSUC211-34
SUCP211-35 2-3/16 　 SSUC211-35
SUCP211 　 55 SSUC211
SUCP212-36 2-1/4 　 69.8 241 184 70 25 20 25 138 65.1 25.4 M16 5/8 SSUC212-36 SP212 5.1
SUCP212-37 2-5/16 　 SSUC212-37
SUCP212-38 2-3/8 　 SSUC212-38
SUCP212-39 2-7/16 　 SSUC212-39
SUCP212 　 60 SSUC212
