320T A7 Four Beam Foundry Crane Electric Overhead Travelling For Steel Mill
320T A7 Four Beam Foundry Crane Electric Overhead Travelling For Steel Mill
320T A7 Four Beam Foundry Crane Electric Overhead Travelling For Steel Mill
320T A7 Four Beam Foundry Crane Electric Overhead Travelling For Steel Mill
Specifications
Brand Name :
KUANGYUAN
Model Number :
YZS
Certification :
ISO CE GOST GB/T
Place of Origin :
Henan,China
MOQ :
1Set
Price :
USD 390000-450000
Payment Terms :
L/C, T/T
Supply Ability :
3000 sets per year
Delivery Time :
55~65 work days
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co
product name :
Electric-overhead-travelling-four-beam foundry crane for steel mill
crane type :
foundry crane
working class :
A7
lifting capacity :
280/80T, 320/80T
lifting height :
28~32m
lifting speed :
7.8~12m/min
material :
Carbon Stainless Steel
main electric parts :
Schneider
power source :
3 Phase 380V 50hz/Custmized
control method :
Cabin Control
Description
PRODUCT OVERVIEW

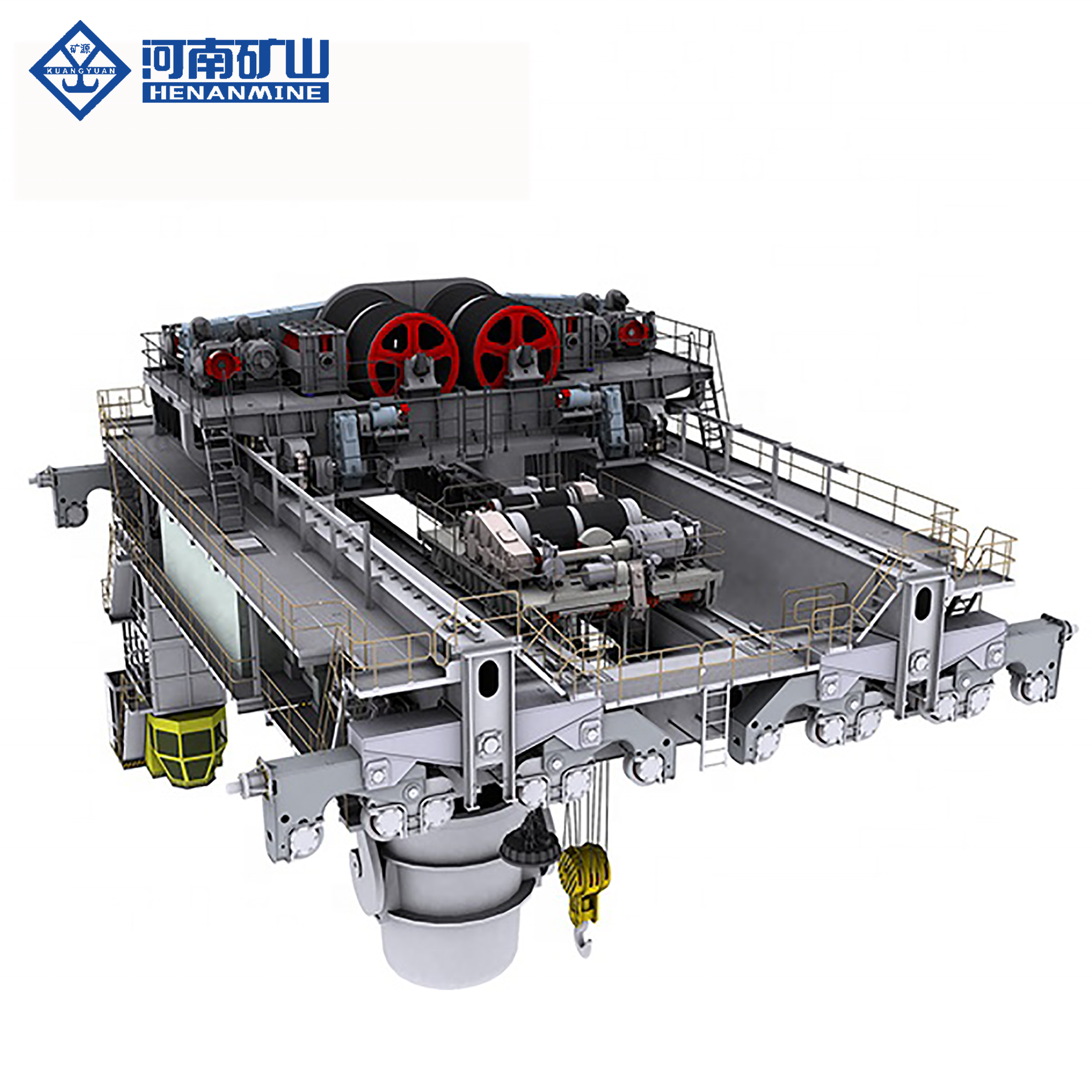

320T A7 Electric overhead travelling four beam foundry crane for steel mill
Casting crane is one of the main equipment in the continuous casting process of steel making. It is mainly used for mixing molten iron in the converter charging span to the converter, hoisting the molten steel to the refining furnace in the refining span or hoisting the molten steel in the molten steel span to the continuous casting turntable.
The overall structure of the foundry crane can be divided into: double-beam double-track, four-beam four-track, four-beam six-track and so on. The double-beam double-rail and four-beam four-rail forms are generally used for medium and large tonnage casting cranes, and the four-beam six-rail double
trolley form is generally used for extra-large tonnage casting cranes.
Casting crane is one of the leading products produced by our company. The casting cranes designed and manufactured by our company are advanced in technology, novel in structure, safe and reliable, economical and durable, and easy to maintain.
320T A7 Four Beam Foundry Crane Electric Overhead Travelling For Steel Mill
FEATURES AT A GLANCE
Working conditions:
1.Working tempreture:-10~+60°C,
2.Work class:A7,
3.Power Source:3ph,380V,50HZ or other under customer requirement.
Safety feature:
1. Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible
2.Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device
3.Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling
4.Safety hook latch used for avoiding the lifted material out off from the hook
5.Voltage lower protection system

Main features:

1.Very stable because of two lifting point on hanging beam of ladle hook through wire-rope pulley.
2.Very very safety to lift because every one hanging beam pulley have two pc-s of wire-rope to avoid the risk happened once one pc of wire-rope damaged.
3.Anti high temperature.
4.Capacity is 125/32 tons and up.
5.Two sets of brake for each lifting point and 4 sets of brake for the main lift.
6, Emergency stop system
7, Over current Protection
8, Short-circuit Protection
9, Phase sequence protection.
10, High protection level IP 54 , IP 55.
11, Zero position protection.
12, Voltage loss protection.
13, Current overload protection.
14, Two carts for two lift, main lift cart is up, aux lift cart is below, to finish the heavy duty working, and could aux hook
could be on left and right of main hook.
PRODUCT SPECIFICATIONS

Sketch

320T A7 Four Beam Foundry Crane Electric Overhead Travelling For Steel Mill

Standard parameters

lifting capacity/t 28080 32080
working class A7
span(S)/m 22 24.5
lifting height/m main hook 29 28
aux.hook 29 32
speed main hook 12 7.5
aux.hook 10 10
main trolley 40 29
aux.trolley 40 39
crane 80 58
max.wheel load/KN 735 750
steel track recommended QU120
power source 380V 50Hz 3-Ph AC

WHY CHOOSE US
Company Profile
Our teams
Cases show
Logistics system
FAQ&CONTACT US
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection. 2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts? A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
