Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3
Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3
Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3
Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3
Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3
Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3
Specifications
Brand Name :
Kuangyuan
Model Number :
CD
Certification :
CE, ISO, EAC
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negonation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4000sets/ month
Delivery Time :
10 days
Packaging Details :
Non-woven + fumigated wooden box
Lifting height :
0-30m
Lifting capacity :
5T
Control method :
wireless remote / pendant button
Warranty :
1 year
Condition :
New
Working duty :
M3
Type :
CD
Application :
indoor or outdoor
Color :
Red, Yellow, Blue and so on
Hook :
Forged
Description

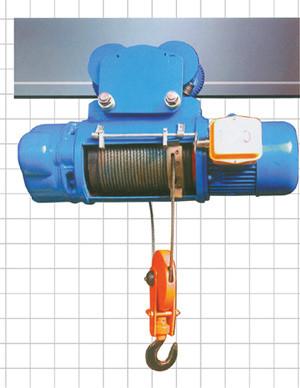

Warehouse Blue 5 T remote control Electric Wire Rope Hoist Lifting Height 15 m working duty M3

1. Introduction

Electric hoist is a special kind of lifting equipment, which is installed on overhead cranes and gantry cranes. Electric hoists have the characteristics of small size, light weight, simple operation and convenient use. They are used in industrial and mining enterprises, storage, docks and other places.

5t remote control electric wire rope hoist is a small -sized lifting equipment, which can be mounted on single beam, bridge , anty and jib cranes. With slight modification , it can also be used as a winch. 3t electric wire rope hoist widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essebtial in raising working effciency and improving working conditions.

The structure and characteristics of electric wire rope hoist: the machine adopts the design of mechatronics, and can press wire ropes of different specifications by changing different molds, which is easy and safe to control; it is convenient to inspect, install and maintain the motor

2. Technical Data Sheet

Main technical parameters

Name

/

5t Electric wire rope hoist

Type

/

CD1

Capacity

t

5

Lifting height

m

15

Working duty

/

M3

Diameter of wire rope

mm

13

Travelling speed

m/min

20

Lifting motor

Speed

m/min

8

Type

/

ZD132-4

Power

kW

4.5

Rotation speed

R/min

1380

Travelling motor

Type

/

ZDY112-4

Power

kW

0.4

Rotation speed

r/min

1380

Current

A

1.25

Power source

Power source

/

AC 380V 50Hz

Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3

Warehouse Blue 5T Electric Wire Rope Hoist Lifting Height 15M Working Duty M3

3.FAQ

Q1: What do i need to consider when purchasing from you ?

A: Please tell us some information about your factory, like it's width, Length and height and so on.

Q2: Do you provide crane servicing ?

A: Yes. Our team offer a range of professional services to installation and maintain your crane.

Q3: What mode of transport do you use?

A: By sea, by railway, by bulk ship, by automobile transportation and so on.
