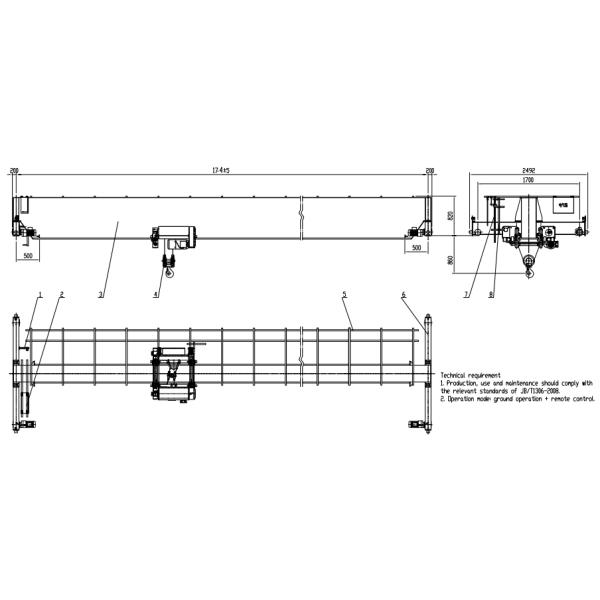

New style single beam electric mobile rail overhead crane European design

Product description:

European single girder overhead crane based on bringing in and assimilating foreign advanced technology, this type of crane takes modular design theories as guidance, uses modern computer technology as means, introduces optimized and reliable design methods, Which is a new type of crane made by employing import configuration, new material and technology and has features in light-weight, generalizing energy-conservation and environmental protection, maintenance-free and high technology content design, production, and inspection carry out the last issued relevant national standard, equivalently adopts some foreign criteria including FEM, DIN and IEC.

The main beam employs a bias-rail box-type structure and connects with the end beam by a high-strength bolt ensuring easy transportation.

Traveling mechanisms of crane and trolley adopt Europe three-in-one drive form, the harden gear face reducer has good performances in compact structure, low noise, no oil leakage and long service lite

As using a new compact trolley and high-strength material, it has small overall dimension and lightweight compared with traditional crane, which can decrease the height of factory building and reduce the cost

The modular design has a short design period and high generalization, which can improve the utilization of components

With compact structure, low clearance, small dimension and large application scope, it can improve production efficiency

Full variable-frequency control runs steadily without any impaction. Running with heavy load at low speed and light load at high speed, it can save energy and reduce consumption

Design standard

Design rules for cranes GB/T3811-2008

Safety rules for lifting appliances GB6067.1-2010

General Bridge Crane GB/T14405-2011

General Gantry Crane GB/T14406-2011

Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-2005

Crane test specification and procedures GB/T5905-1986

Crane electric control equipment JB/T4315-1997

Important application wire rope GB8918-2006

Carbon structure steel GB/T700-2006

Low alloy high strength structure steel GB/T1591-2008

Welding joint radiographic inspection standard JB928-1994

Steel welding joint manual ultrasonic flaw detection way GB11345-1989

Technical specification:
