15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated
15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated
15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated
15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated
Specifications
Brand Name :
kuangyuan
Model Number :
MH
Certification :
CE ISO GOST
Place of Origin :
Henan, China
MOQ :
1set
Price :
USD12300~23500 sets
Payment Terms :
L/C, T/T
Supply Ability :
15000 per years
Delivery Time :
30days
Packaging Details :
Wooden packing of the main electrical parts
Feature :
Gantry crane
Max. Lifting Height :
6m 9m 12m
Max.span :
12m 16m 20m 24m 30m
Steel Material :
Q235B
Description

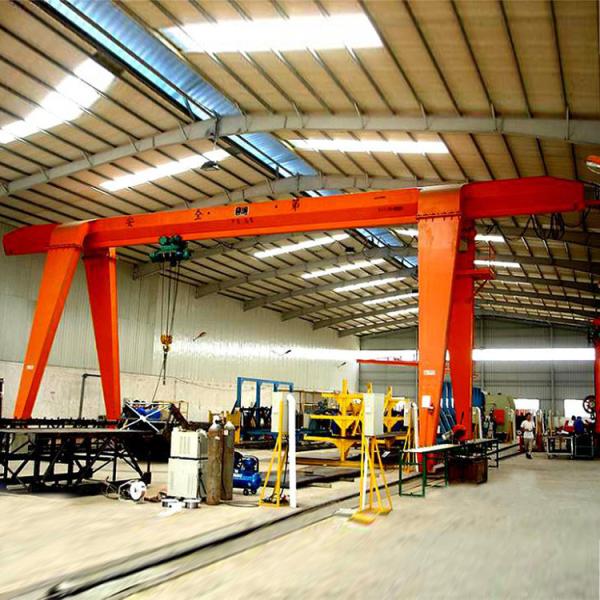

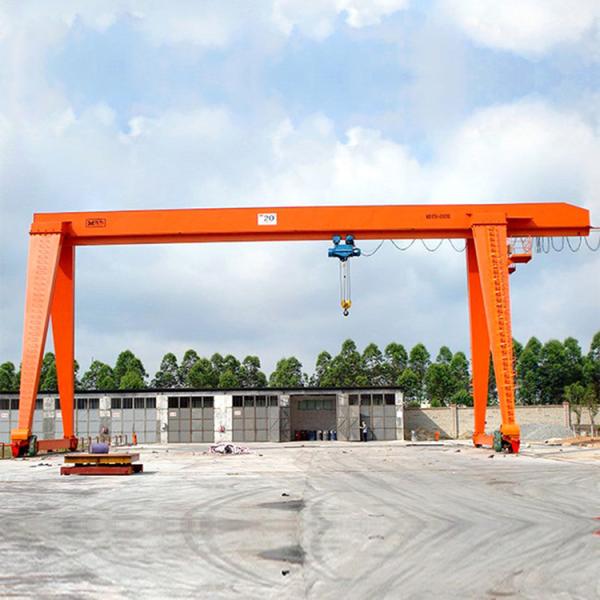

15 ton MH Type Hoist Single Girder Portal Crane 15M Span Rail-operated Gantry Crane

MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non-cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.

1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device.
4. Pendent control and remote control.
5. Easy maintenance.

6. Preventing hook clashing the top, set shields and barriers.
7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.

15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated

15 Ton MH Type Hoist Single Girder Portal Crane 15M Span Rail Operated

Rated load/ton
5
10
16
20
Span/m
10-40
Lifting height/m
Max 30
Working class
A3/1bm
Lifting speed/m/min
8
7
3.5
3.5
Trolley running speed/m/min
20
Crane running speed/m/min
20
Dead weight/t
10.5-37.5
16.8-52
18.9-65
24.5-77

FAQ:

Q1: What's the information should I provide when inquiry?

A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q5: Can this type work in hazardous environment?
A5: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q6: Can you provide the various lifting tools?
A6: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
