New 10Ton LB type Explosion Proof Electric Single Girder Crane
New 10Ton LB type Explosion Proof Electric Single Girder Crane
New 10Ton LB type Explosion Proof Electric Single Girder Crane
New 10Ton LB type Explosion Proof Electric Single Girder Crane
New 10Ton LB type Explosion Proof Electric Single Girder Crane
New 10Ton LB type Explosion Proof Electric Single Girder Crane
Specifications
Brand Name :
KUANGYUAN
Model Number :
LB
Certification :
CE ISO SGS GOST
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
35000 sets per year
Delivery Time :
35days
Packaging Details :
Main girder and End beam-- packed by plastic woven cloth. Electrics-- packed by high quality plywood crate,
Equipment Feature :
Explosion Proof
Lifting Weight :
10 ton
Lifting machanism :
electric hoist
Color :
yellow color
Control method :
pendant control, remote control, cabin control
Material :
Q235/Q345 steel plate
Power source :
3 Phase 380V 50hz
Explosion proof grade :
Exd II BT4, Exd II CT4
Time of making :
2021
Description

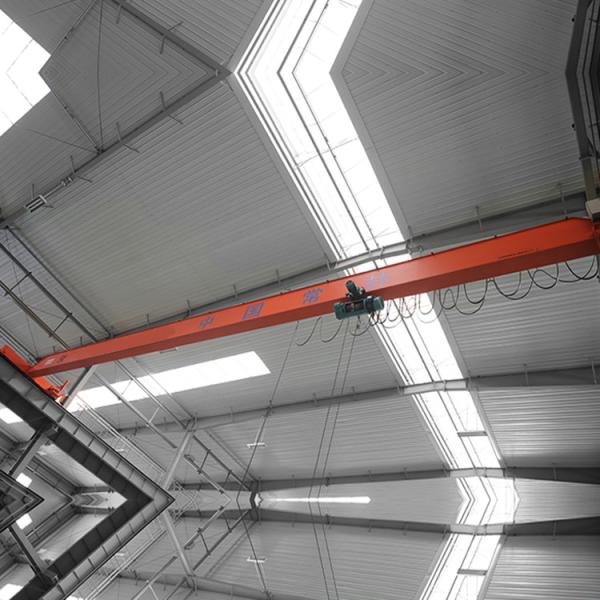

New 10Ton LB type Explosion Proof Electric Single Girder Crane
1. A brief introduction for New 10ton LB type explosion proof electric single girder crane
10ton Explosion Proof Single Girder Bridge Crane is one kind of light duty crane, It is characterized by more reasonable structure and higher strength steel as a whole. Used together with CD1 model, MD1 model, Hc model electric hoist as a complete set, it can be used in explosive environment to lift weight. 10ton LB type explosion proof electric single girder crane is to meet the new production process with automatic, clean, explosion-proof function of the crane.The use of the environment for semiconductor materials workshop, dust-free design, air cleanliness level of 4 (national standard 7) (that is, 0.1 µm per cubic meter of particulate matter is not more than 10,000).At the same time there is flammable and explosive gas in the workshop, crane explosion-proof grade dIICT4.
2. Advantages for 10ton LB type explosion proof electric single girder crane
1)The crane uses a lightweight, maintenance-free design
2)It is widely used in anti-static, wear-resistant and corrosion-resistant materials, the wheels are made of stainless steel
3)Cart wheel set fully enclosed design, stainless steel wheels
4)The laser bar code positioning reader of the car is mounted on the car, and the barcode belt is mounted on the web of the large owner's beam.
3. The technological parameter for 10ton LB type explosion proof electric single girder crane
Lifting capacity 10tons
Span 10m
Lifting height 6m
Total weight 3670kg
Max. wheel load 54.8KN
Control mode ground control

New 10Ton LB type Explosion Proof Electric Single Girder Crane
Customer Feed back:
New 10Ton LB type Explosion Proof Electric Single Girder Crane
FAQ:
Q: What kind of documents will be delivered together with the crane?
A: In general, there will be instruction manual, product certificate, technical specifications table, factory inspectionreport, the main part steel material reports, electrical diagrams, and crane general drawing, etc.
Q: Is it possible we visit the factory before order placed or inspect the cranes before delivery?
A: Sure, welcome to visiting our factory and this will helps us know more about each other.
Q: Due to the complication of factory situation, is it possible to send technician to our site so we can havethe most suitable crane solution?
A: Yes, it is okay, but the clilent needs to be responsible the round-trip tickets, visa, accommodation, meals, selt-security and salary per day abroad .
Q: For customs clearance documents, can you make special Co (Certificate of Origin), such as FORM E,China-Australia co, etc.?
A: Yes, if you need such documents, please kindly tell us in advance.
Q: What kind of installation support we can get from you?
A: If needed, we can send our engineers to your site to guide the installation and commissioning; Or we will supplyOnline inalllt guide, any isallatlon problems, we can confrm with our engineers, and help you to solve it.
