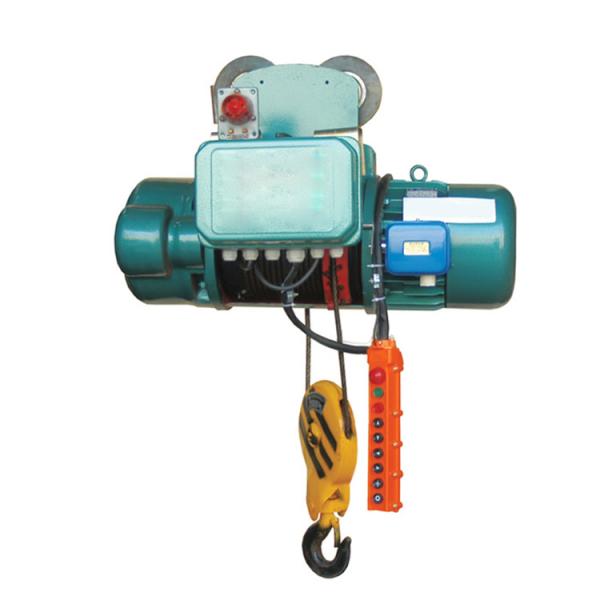

CD MD 5t Electric Wire Rope Crane Hoist Single / Double Speed
CD MD 5t Electric Wire Rope Crane Hoist Single / Double Speed
CD MD 5t Electric Wire Rope Crane Hoist Single / Double Speed
CD MD 5t Electric Wire Rope Crane Hoist Single / Double Speed
CD MD 5t Electric Wire Rope Crane Hoist Single / Double Speed
CD MD 5t Electric Wire Rope Crane Hoist Single / Double Speed
Specifications
Brand Name :
Kuangshan
Model Number :
CD
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
USD500/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
1000000sets/month
Delivery Time :
20work days
Packaging Details :
Carton
Power Source :
3P 220--440 V/50HZ
Control method :
Ground Control+Remote Control
Type :
CD MD
Working temperature :
-10 ~45
Material :
Q235B
Main electrical parts :
Schneider
Name :
Popular 10t 16t 20t Electric Wire Rope Hoist CD MD usage in Workshop
Description

Popular 10t 16t 20t Electric Wire Rope Hoist CD MD usage in Workshop

CD1, MD1 wire rope electric hoist, it generally has a max. lifting capacity 16 tons,it has single lifting speed or double lifting speed, main consists of squirrel cage motor,reducer,drum brake,wirerope and wirerope drum,cross traveling trolley etc.

Lifting weight(t) 1,2,3,5 10 16
Lifting height(m) 6/9/12/16/24/30 9/12/18/24/30 9/12/16/20/24/30
Hoisting speed(m/min) 8(0.8/8) 7(0.7/7) 3.5(0.35/3.5)
Running speed(m/min) 20 20 20

Steel wire

rope type

 specification 6×37+1
H beam orbit model 16-45c 30T-45c 30T-45C
Minimum curvature radius(m) 1.5-6 3.5-9 3.5-6
Hoisting motor Type ZD1(ZDS1) ZDI(ZDS1) ZD1(ZDS1)
Power(KW) 1.5/3/4.5/7.5 13(1.5/13) 18.5(2.2/18.5)
Rotation speed(r/min) 1380 1380 1380
Current(A) 4.3,7.6,11,18 30 30
Running speed Type ZDY11,12,21-4 ZDY21-4 ZDY21-4
Power(KW) 0.2,0.4,0.8 1.5*2 0.8*2
Rotation speed(r/min) 1380 1380 1380
Current(A) 0.72,1.25,2.4 2.4 2.4
Power source Three-phase, 380V, 50 HZ or 400~440V/50-60Hz,
Working system Intermediate FC=25%
