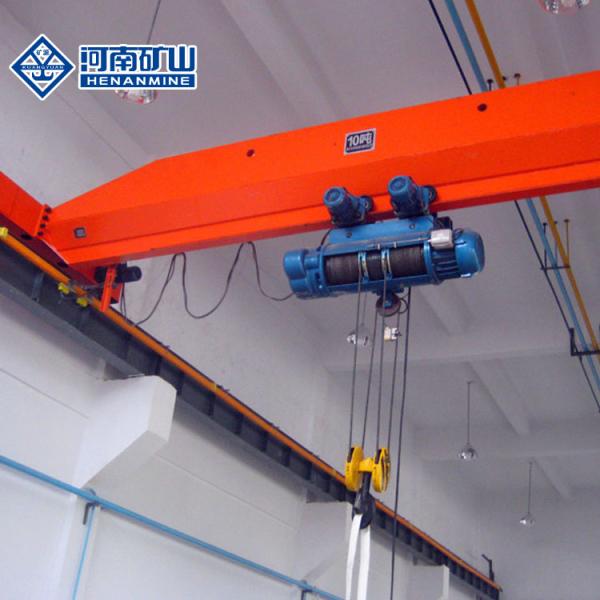

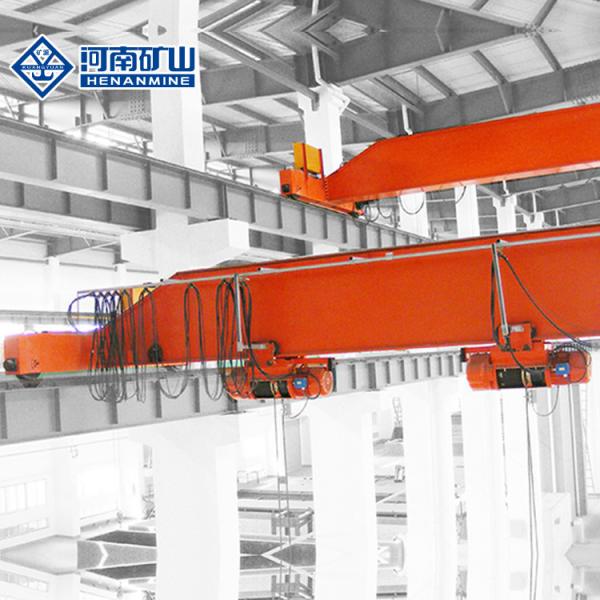

5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m
5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m
5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m
5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m
5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m
5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m
Specifications
Brand Name :
KUANGYUAN
Model Number :
LD
Certification :
ISO CE EAC
Place of Origin :
, HENAN, CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
4000SETS/ MONTH
Delivery Time :
ABOUT 35 DAYS
Packaging Details :
Standard export packing
Product condition :
New
Lifting height :
9m
Span :
16m
Lifting capacity :
5t
Crane type :
Single beam overhead crane
Color :
Red
Material :
Q235
Warranty :
18 months
Power source :
Customized
Crane weight :
4340kg
Description

5T Single Girder Overhead Crane for Lifting Cables Indoor with Span 16m, Lifting Height 9m, A3

1. Brief introduction

The single-girder overhead crane is a lifting equipment that is horizontally mounted over workshops, warehouses and stockyards for material hoisting. Because its two ends sit on tall concrete columns or metal supports, it is shaped like a bridge.

The bridge of the single-girder bridge crane runs longitudinally along the tracks laid on the elevated on both sides, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is the most widely used and the largest number of hoisting machinery.

Main beam is made by one time forming machine,no weld,high quality and high strength.Main beam rib plate welding is done by robot, high quality weld. Main beam is Box type, Sandblasting surface cleanness reach Sa 1/2.

2. Specifications:

1 Name Single Girder Overhead Crane
2 Model LD
3 Capacity 5t
4 Span 16m
5 Lifting height 9m
6 Lifting speed 8m/min
7 Cross travel speed 20m/min
8 Long travel speed 20m/min
9 Control type Pendent line control
10 Power supply 380V50Hz3Ph AC
11 Lifting motor 7.5KW
12 Trolley traveling motor 0.8KW
13 Crane long traveling motor 2x0.8KW
14 Crane weight 4340kg
15 Max.wheel pressure 40KN
16 Recommended rail model P24

5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m

5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m

5T A3 single girder overhead travelling crane To Lift Cables Indoor Span 16m Height 9m

3. FAQ

Question 1: What about your factory ?

A: HENAN MINE CRANE is the Quality Bench marking Enterprise in crane industry in 2019

HENAN MINE CRANE is Excellent Crane Supplier to China No.1 steel group- BAOSTEEL

HENAN MINE CRANE double girder overhead crane is the famous brand product in machinery industry in China.

HENAN MINE Crane sells all kinds of crane 93002sets in the year of 2020

HENAN MINE CRANE New Intelligentized Workshop with area 160000m2 has been put into use since Jan.1,2020,it is the largest crane manufacturing workshop in Asia,sales volume can reach 6billion.

Question 2 : What services do you offer?

A:We can design the most suitable Crane for you according to your plant drawings, and provide installation and guidance services.
