Specifications
Brand Name :
KUANGYUAN
Model Number :
BMG
Certification :
ISO CE SGS GOST
Place of Origin :
Henan,China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
2000 Sets per Year
Delivery Time :
65 Work Days
Packaging Details :
Single girder gantry crane packaging method: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the tra
Price :
USD 10000-45000
Feature: :
Semi-gantry Crane
Work Duty :
A4,A5
Main electrical part :
Siemens brand
Control model :
Wireless Remote Control
Condition :
New
Motor :
Nanjing special motor
Lifting mechanism :
Wire Rope Electric Hoist
Color :
Sandblast, primer & finihsing painting
Description

Double Beam Main Girder Hook Semi Gantry Crane 20/10T Trolley Gantry Crane

product description of gantry crane:

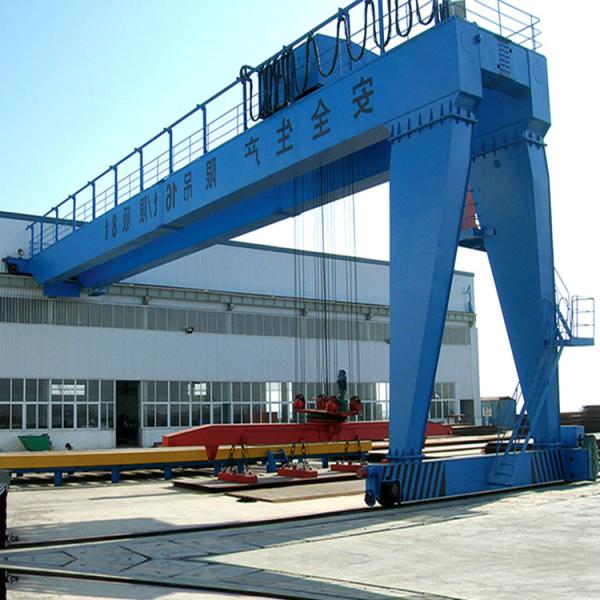

The double main beam hook semi-gantry crane is mainly composed of a mast, a crane trolley, a cart operating mechanism and an electrical control system.
The mast is a box-shaped structure, with outriggers on one side, running along the ground track, and no outriggers on the other side, running along the upper track of the plant.
The operation method adopts a closed driver's cab with adjustable seats, insulating mats on the floor, and tempered glass windows, equipped with fire extinguishers, electric fans, heating and cooling air conditioners, buzzers, walkie-talkies, etc. according to user requirements.

Technical Parameter(customizable) of gantry crane:

Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method Pendent Line With Press Button /Cabin/ Remote
Speed Lifting m/min 8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross traveling 20 20 20 20 20
Long traveling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

 ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross traveling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.82 ZDY121-4/0.82 YZD-4/0.84
Long traveling Ground

ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

 YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52
Cabin

ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9,12,18,24,30
Working duty A3
Power supply 380V 60HZ 3phase AC (According to your demand )

Main Features of gantry crane:

Features:

Simple and compact structure, steady performance.

Easy to install and high efficiency.

Overload, low voltage protective device.

Pendent control and remote control.

Easy maintenance.

Specification of gantry crane:

Lifting capacity is 5ton to 32ton;

Span is 12m to 30m;

Lifting height is 6m, 9m, 12m, etc;

Working duty is A5;

Working temperature is -20°C to + 50°C.
