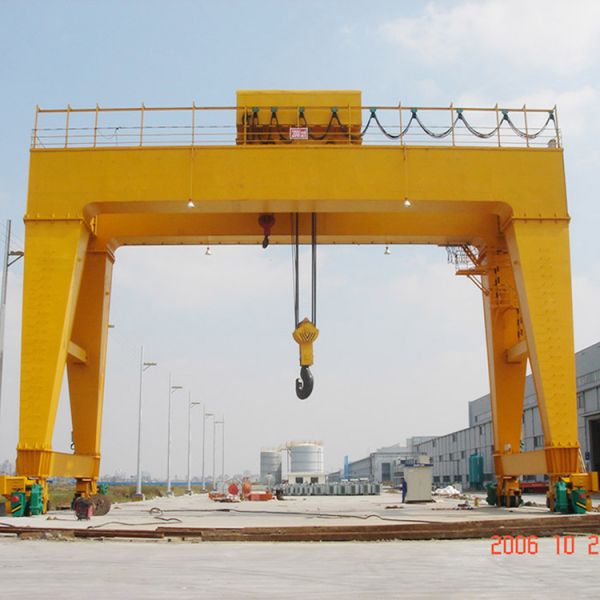

20T MG Pendant Control Double Girder Gantry Crane Electric Trolley
20T MG Pendant Control Double Girder Gantry Crane Electric Trolley
20T MG Pendant Control Double Girder Gantry Crane Electric Trolley
20T MG Pendant Control Double Girder Gantry Crane Electric Trolley
Specifications
Brand Name :
Kuangyuan
Model Number :
MG
Certification :
CEI,SO
Place of Origin :
China
MOQ :
1SET
Product name :
30T RMG S16m Kuangyuan Brand Gantry Crane ISO CE Electric Trolley
Lifting mechanism :
Electric trolley
Control Method :
Pendant +Remote(Customized)
Power Source :
3P 220--440 V/50hz60HZ
Color :
Clients' Requirments
Crane type :
Double Girder Overhead Crane
Work Duty :
A5-A7
Temperature :
-10~45℃
Bridge Type :
Span Construction
Motor :
Chinese Famous Brand
Description

20T MG S15m Kuangyuan Brand Gantry Crane ISO CE Electric Trolley

Product Description of Gantry Crane:

Rail Mounted Container Gantry Crane(RMG) is a kind of rail mounted crane used to offload, stack and load 20ft, 40ft, 45ft ISO standard containers. Its provision of power is offered by cable reel. The crane contains three mechanisms: hoisting, trolley travelling and gantry travelling. The trolley running along the track mounted on gantry beam is capable to serve among legs. The crane is able to make straight movement along rails.

Product Details:

Main Parts of Rail Mounted Container Gantry Crane:

Product Structure:
Lifting weight (t) 10 16 20/10 32/10 36/16 50/10
Span (m) 18~35 18~30 18~35 22 26 22~35 35

Lifting height (m)

 Main hook 11.5 10.5,12 10.5 11.5 11.5 12
Auxiliary hook 11 12 12 13
Speed (m/min) Main hook 8.5 7.9 7.2 7.5 7.8 6
Auxiliary hook 10.4 10.4 10.5 10.4
Trolley travel 43.8 44.5 44.5 41.9 41.9 38.13
Long travel 37.6,40 38,36 38,36 40 40,38 38
Duty classification A5
Power source Three-phase AC. 127~480V 50/60Hz

Attention:

Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

Related Products

Main Product:

Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.

Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
20T MG Pendant Control Double Girder Gantry Crane Electric Trolley

Contact us:

Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.
