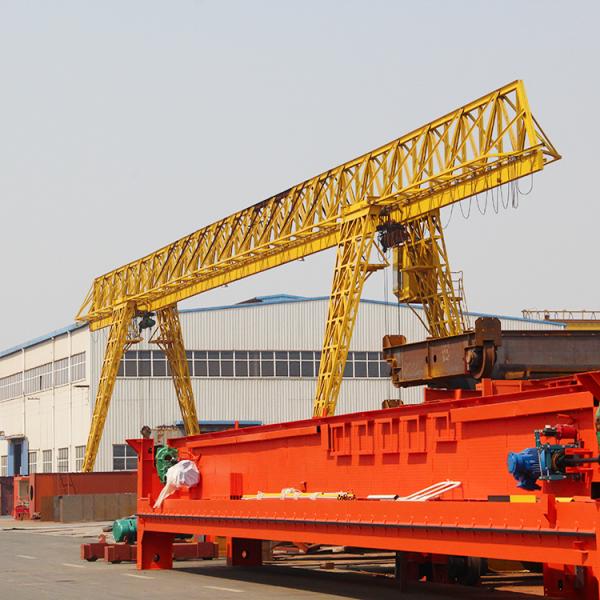

16t Truss Type Single Beam Gantry Crane Pendant Control Span 12-30M

product description of Single girder gantry crane:

Hoisting truss gantry cranes are widely used in open-air places such as stations, ports, industrial and mining enterprises, etc., with light weight and small windward area carrying capacity

Electric hoist gantry crane is a small and medium-sized lifting equipment that runs on rails. It is mainly composed of mast (main beam, outrigger, lower beam, etc.), hoisting mechanism, operating mechanism and electronic control part. Electric hoist is used as lifting equipment. The mechanism runs along the lower flange of the I-beam of the main beam when working. The gantry structure is divided into two types: box-shaped and truss. The box-shaped technology is good and easy to manufacture; the truss has light weight and strong wind resistance. The whole machine has the characteristics of light weight, simple structure, convenient installation and maintenance, etc. It is suitable for outdoor places such as factories and mines, freight yards and warehouses within the range of small and medium lifting weights for general loading and unloading.

MH type electric hoist gantry crane (truss type) is used in conjunction with CD, MD and other types of electric hoists,

It is a small and medium-sized crane that runs on rails. The main girder and outriggers are welded into a truss structure with steel

The light weight of the frame structure is beneficial to reduce the impact of wind on the crane.

The truss gantry crane uses angle steel or I-beam welded structure, which has the advantages of low cost, light weight and good wind resistance. However, due to the many welding points and the defects of the truss itself, the truss beam also has the disadvantages of large deflection, low rigidity, relatively low reliability, and frequent inspection of the welding points. It is suitable for sites with low safety requirements and small lifting weight.

There are three operation modes: ground handle, wireless remote control and driver's cab.

There are two forms of power supply: cable reel and high-altitude sliding line.

MH type electric hoist gantry (truss) crane is a general purpose crane, which is mostly used for loading and unloading or grabbing materials in open places and warehouses. This product has two types of ground operation and indoor operation. It is suitable for lifting weight of 3-20T, and suitable for span of 12-30 meters. Working environment -20°C- +40C.

Technical Parameter(customizable) of Single girder gantry crane:

Main Features of Single girder gantry crane:

Light weight
Small windward area
Large carrying capacity
Simple structure
Easy to make
Easy to install

Specification of Single girder gantry crane:

Lifting capacity is 5ton to 20ton;

Span is 12m to 30m;

Lifting height is 6m, 9m, 12m, etc;

Working duty is A5;

Working temperature is -20°C to + 40°C.

Detailed Images of Single girder gantry crane:

FAQ

A: Can you provide custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
