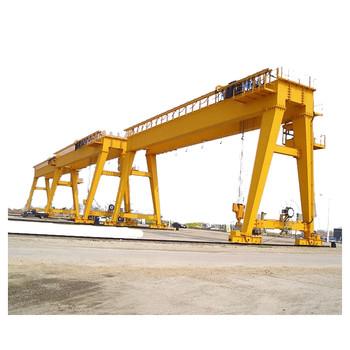

MG Model Fixed Gantry Crane Custom 120t Span 10m With Wheel Trolley Custom color

Double Girder Gantry Crane Description:

CE Certificated Double Girder gantry crane for lifting also called door crane or goliath crane, it is a kind of track travelling mid-heavy type crane, can be used where overhead runways are not practical, or in open areas where columns cannot be accommodated. The top main girder is mounted on two A shape columns which are further resting on wheel mounted end carriages.

This crane is widely applied to do loading and unloading work in outdoor. Such as material stocks area, cement plant, granite industry, construction industry, and engineering industry and so on.

It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance, high adaptability and so on.

It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.

It could be special design and customize by clients’ requirement.

This type of double girder gantry crane consists of 5 main parts, namely, the bridge structure, A-frame support legs, the traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.

The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.

Product Structure of double girder gantry crane:

Main Features of double girder gantry crane:

1. Double box beam with steel legs moving through the ground beam as crane travelling system

2. The camber of main beam will be designed as Span*1-1.4/1000.

3. Steel Material: Q235 or Q345

4. Shot-blasting Sa2.5 for main girder and supporting beam

5. Epoxy zinc rich high quality painting.

6. Electrification and outfitting

7. Brand: CHINT SIEMENS Schneider

8. Conductor power supply: Cable Reel or busbar.

9. Frequency conversion, double speed, single speed, and All hoist and crane movements are independent and can be run simultaneously different design due to meet crane applications

Main Product

Henan Mine Crane meet the demand factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane.

Certifications

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control,ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.

FAQ

A: Can you provide custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
