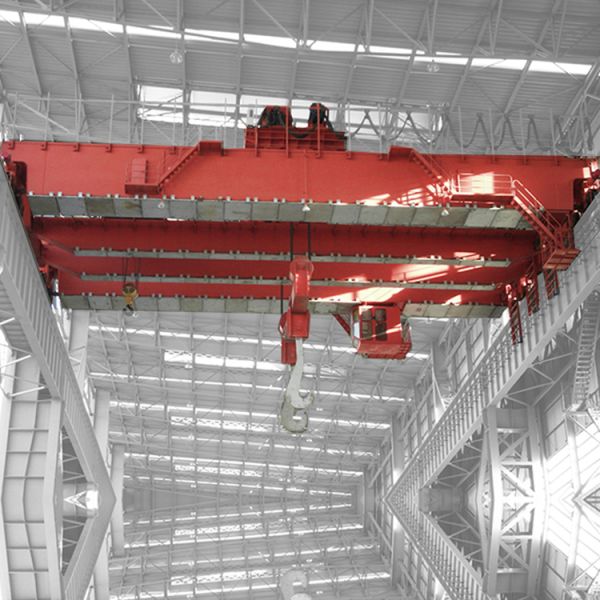

5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane
5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane
5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane
5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane
Specifications
Brand Name :
kuangshan
Model Number :
QDY
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100ets/month
Delivery Time :
30working days
Packaging Details :
Carton
Product Name :
QDY Double beam Girder Overhead 85 ton Casting Bridge Crane
Crane type :
Double Girder Overhead Crane
Power Source :
3P 220-440 V/50hz-60HZ
Work Duty :
A5-A7
Main electrical parts :
Schneider Brand
Lifting mechanism :
Electric trolley
Color :
Customised
After-sales Service Provided :
Engineers available to service machinery overseas
Working temperature :
-10 ~60
Description

5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane

Product Description:

Kuangshan QDY Metallurgy Meltshop Double beam Girder Overhead 70ton Casting Bridge Crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement.

Product Structure:
Lifting weight Primary handcart T 100
Secondary handccart 30
Span 16
Lifting height Primary handcart M 18
Secondary handccart 19
Working class A6
Speed Lift Primary handcart m/min 7.54
Secondary handccart 8.93
Travel Primary handcart 35.08
Secondary handccart 42.44
Motor Lift Primary handcart Type/kw YZR355M-10/90×2
Secondary handccart YZR280M-10/55
Travel Primary handcart YZR160L-8/9×2
Secondary handccart YZR160M1-6/6.3
Cart YZR225M-8/22×4
Weight Primary handcart T 66
Secondary handcart 10.25
Cart 173
Max wheel pressure KN 520
Steel track QU120
Power supply 3-phase A.C. 50Hz 380V

Pothos of Kuangshan QDY Metallurgy Meltshop Double beam Girder Overhead 70ton Casting Bridge Crane:

5 tons/20 tons high-tech engine room control metallurgical double-beam ladle handling crane

Product Details:

Main Parts of QDY Ladle crane:

Working condition:

1.Working tempreture:-10~+60°C,
2.Work class:A6-A8,
3.Power Source:3ph,380V,50HZ or other under customer requirement.

Safety feature:

1.Weight overload protection device,
2.Top quality long time bearing polyurethane materials buffer,
3.Crane traveling limit switch, Voltage lower protection function,
4.Emergency stop system,
5.Current overload protection system and so on!

Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Contact Us:

Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.

Click to submit your inquiry to us, we will contact you ASAP.
