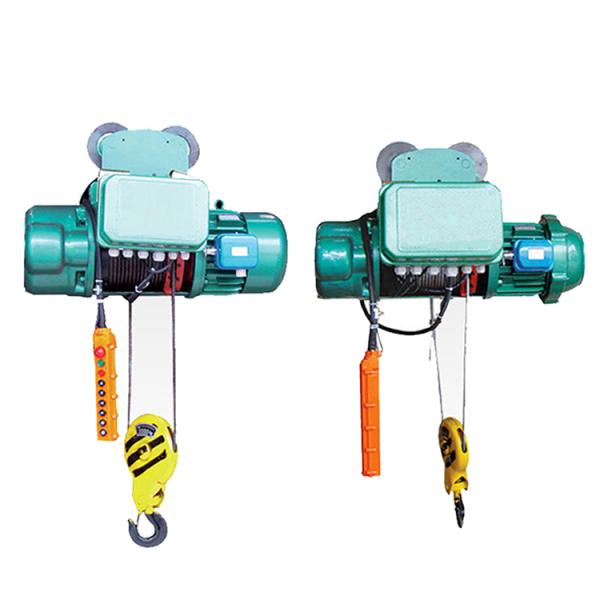

Lifting 9M Single Speed CD 8T Electric Wire Rope Hoist High Technique

product description of Electric Wire Rope Hoist :

8T Lifting 9M Single Speed CD Electric Wire Rope Hoist Crane Using is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, Wire Rope Crane Hoist can also be used as a winch. The lifting motor, reel device and reducer are arranged in series, with a circular or square appearance, and have vertical lifting and running functions. The lifting speed is divided into single speed or double speed. The two-speed type is based on the single-speed type, adding a set of slow-speed driving device composed of a slow-speed motor and a reducer, and its ratio to the fast speed is 10:1. When the fast motor works, the slow drive device does not move, and the electric hoist rises and falls quickly. When the slow-speed motor works, the slow-speed drive device drives the main hoisting motor's conical rotor to rotate, and the electric hoist rises and lowers slowly.

Technical Parameter(customizable) of Electric Wire Rope Hoist:

Main Features of Electric Wire Rope Hoist :

1. Design: International advanced tide compact and nice.
2. Reduce: High strength hard gear surface, inclined gear driving with low noise.
3. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
4. Wire Rope: The tensile strength is 1760N/mm2.
5. Limit Switch: Cam limit model operate safety.

6. Working duty: A5/M5

7. Speed: with Frequency inverter

8. Main electrical parts: Schneider

9. Motor brand: China or Germany.

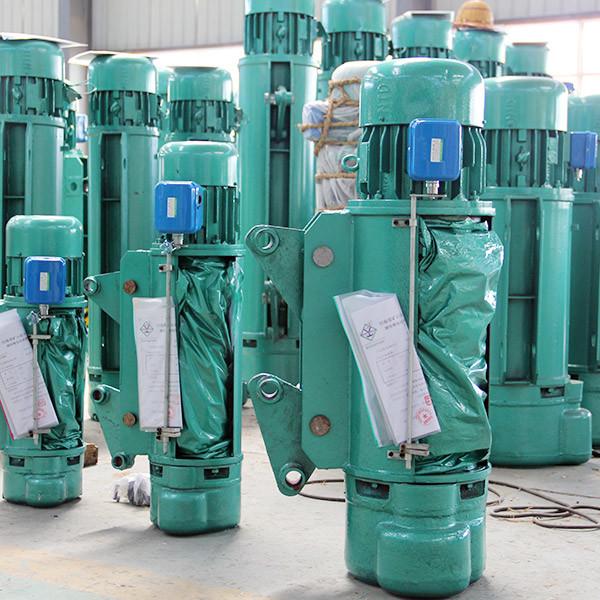

Detailed Images of Electric Wire Rope Hoist :

Details of Wire Rope Crane Hoist:

Wire Rope Crane Hoist are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured accord demand.

Motor: We provide squirrel-cage induction motors with Vz hour rating for lifting and lifting, and are confirmed to have IS 325 with higher H.P. And higher starting torque to reduce processing time. The flange installation of CD hoist is suitable for our design and has B or F insulation.

Wire rope drum: The wire rope drum is precisely machined and slotted to ensure that the wire rope is correctly placed in the appropriate layer. The drum is equipped with two heavy-duty ball/roller bearings for smooth operation and longer life.

Reducer: It adopts a three-stage fixed-axis helical gear transmission mechanism. The gears and gear shafts are made of heat-treated alloy steel. The box body and box cover are made of high-quality cast iron, with tight assembly and good sealing.

Control box: It is a device that can cut off the main circuit in an emergency and has a fire limiter for upper and lower travel protection.

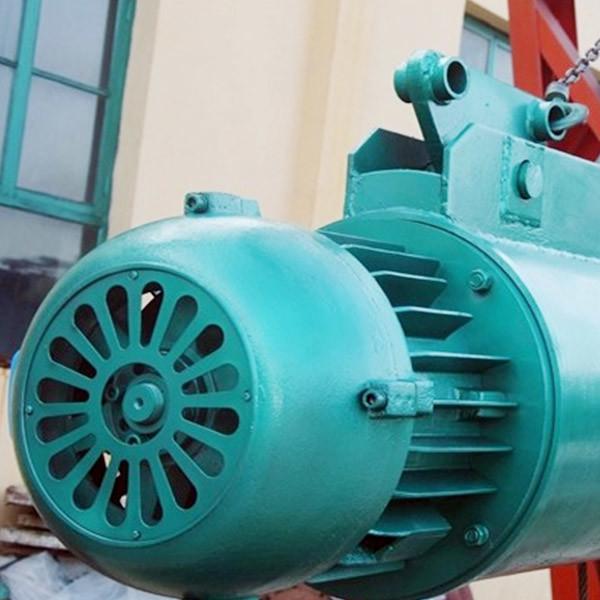

Wire rope: It is a heavy-duty wire rope, which guarantees durability. Cone motor: The lifting motor adopts a larger power torque conical rotor to brake the asynchronous motor, no need to add a brake.

Button switch: It adopts hand-operated type, which is light and convenient. It is divided into two modes: rope operation and cordless remote control.

.

FAQ Of Wire Rope Crane Hoist:

A: Can you provide wire rope crane hoist custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Can you provide spare parts matching wire rope crane hoist?

B: Yes, as a professional crane manufacturer, we can provide all related spare parts. For example, electric motors, hoists, drums, wheels, grabs, hooks, guide rails, traveling beams, closed bus bars, etc. Just contact our salesman, we will understand your needs and recommend to you.

A: How can you ensure the wire rope crane hoist quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
