Specifications
Brand Name :
KuyangYuan
Model Number :
QDY
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD100000-130000
Payment Terms :
L/C, T/T
Supply Ability :
400 sets/ month
Delivery Time :
35 days
Packaging Details :
Non-woven and fumigated wooden cases
Span :
10.5-31.5m
Working duty :
A7
Color :
Requirement
Main hook :
32t
Aux. hook :
5t
Warranty :
18months
Lifting speed :
7.8m/min, 15.5m/min
Powe source :
3 Phase A.C. 380V 50HZ
Description

High Quality 32/5T Steel Plant Crane Working Duty A7 for Molten Metal Lifting

1. Product description:

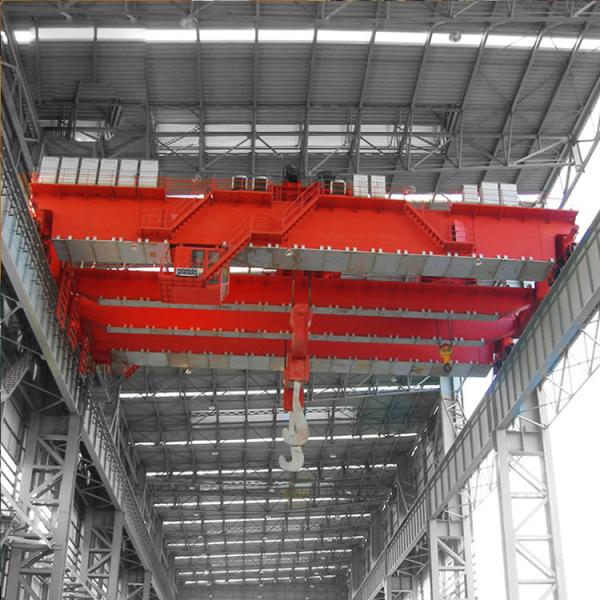

32/5T casting crane with hook is mainly used where molten metal is lifted. It's an participate in specific process operations in the steel production process. Its basic structure is similar to that of ordinary bridge cranes, but a special working mechanism or device is also installed on the hoisting trolley.

The working characteristics of this kind of crane are frequent use, harsh conditions and high working level. The working class of the whole machine is A7, and the bottom of the main beam is equipped with thermal insulation coating. Span 10.5-31.5m, working duty A7.

2. Environmental conditions:

1. The crane power supply is three-phase alternating current; the rated frequency is 50Hz, and the rated voltage is 380V.

2. The working environment temperature is -10℃~+60℃.

3. The relative humidity should not exceed 50% when the temperature is +40°C.

3. Technical parameter:

Basic parameters
Мodel / QDY
Capacity T 32/5
Span M 10.5-31.5m
Lifting height M 16
Control Method / Cabin
Power source / 380V 50Hz, 3P
Working duty / A7
Lifting mechanism Main Aux.
Speed M/min 7.8 15.5
Motor Power KW 55 15
Diameter of the drum mm Ф650 Ф400
Trolley travel mechanism
Speed M/min 42,4
Motor Power KW 7.5
Rotation r/min 945
Crane travelling
Speed M/min 89/75.3
Whole Crane
Total Weight kg 53308

High Quality 32/5T Steel Plant Crane Working Duty A7 for Molten Metal Lifting

4. FAQ

1) What areas do you service ?

A: We can design and produce crane based on your Specific requirements, and can send engineers provide installations and maintenancein all over the world.

2) What do Henan Mine Crane do ?

A : We design, produce, install bridge crane, gantry crane, port crane, hoists, winch ,grab and so on.

3) Why do choose you ?

A: We have a professional management, design, development, production, testingand modern marketing personnel team,

  • You're welcome to visit our factory any time.
