75/20T Steel Plant Overhead Crane Equipment with winch trolley
75/20T Steel Plant Overhead Crane Equipment with winch trolley
75/20T Steel Plant Overhead Crane Equipment with winch trolley
75/20T Steel Plant Overhead Crane Equipment with winch trolley
75/20T Steel Plant Overhead Crane Equipment with winch trolley
75/20T Steel Plant Overhead Crane Equipment with winch trolley
Specifications
Brand Name :
KuangYuan
Model Number :
QD
Certification :
CE, ISO, EAC
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
4000 sets/ month
Delivery Time :
80 days
Packaging Details :
Sea whorthy packing
Type :
QD model
Capacity :
75/20T
Span :
19.5m
Working class :
A6
Color :
Yellow, Red
Power source :
380V, 50Hz, 3P
Control method :
Cabin
Warranty :
18months
Lifting mechanism :
Electric trolley
Motor :
IP54 F
Description

75/20T Steel Plant Overhead Crane Equipment with winch trolley

Product description of 75/20T steel plant overhead crane equipment with winch trolley:

QD Model double girder bridge crane mainly consists of bridge frame, trolley,crane travelling mechanism, cabin and electrical control system,and is divided into two working grades of A5 and A6 accroding to the use frequency.

Control mode:Cabin

Main electrics-Schneider

Normal capacity are 5t,10t,16t,16/3.2t,20/5t,32/5t,50/10t,75/20t,100/20t,

the span is 10.5m-31.5m, lifting height 16-20m, working class is A5,A6.
Control model: cabin control.

product superiority of 75/20T steel plant overhead crane equipment with winch trolley:

It has reasonable structure,light dead weight,low noise,easy operation and maintenance,low maintenance frequency and cost,superior performance,long service life.And ambient temperature normally not more than 45ºC,if high temperature,also could design.

Widely used hoisting machinery,Sophisticated structure,Have a safe electrical system,A variety of control methods give customers more operation possibilities,We can add heating and cooling air conditioners, intercoms and other items according to customer needs to meet customer needs as much as possible,The motor grab, electromagnetic chuck and other spreaders can be replaced to meet the various needs of customers.

Technical parameters:

S/N. Crane No.s 1
1 Name Double Girder Overhead Crane
2 Model QD75/20t-19.5m
3 Working class A6
4 Capacity 75tons
5 Span 19.5m
6 Lifting height 16m
7 Lifting speed 6.1m/min,7.2m/min
8 Trolley travelling speed 38.4m/min
9 Crane travelling speed 66.2m/min
10 Control type Cabin
11 Power supply 380V50Hz3Ph AC
12 Lifting motor 90KW,26KW
13 Trolley traveling motor 13KW
14 Crane long traveling motor 2x22KW
15 Crane weight 72320Kgs

Photo:

75/20T Steel Plant Overhead Crane Equipment with winch trolley

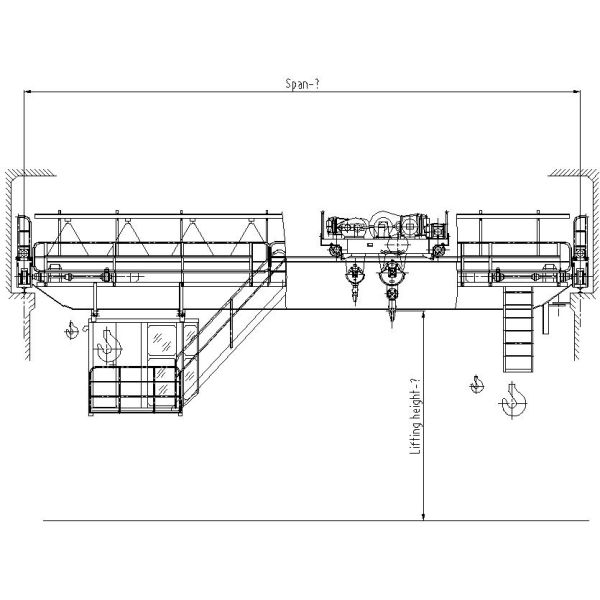

Detailed drawing

75/20T Steel Plant Overhead Crane Equipment with winch trolley
