ME Type Electric Double Girder Gantry Crane 10m / Min With Two Trolleys For Shipyard
ME Type Electric Double Girder Gantry Crane 10m / Min With Two Trolleys For Shipyard
ME Type Electric Double Girder Gantry Crane 10m / Min With Two Trolleys For Shipyard
ME Type Electric Double Girder Gantry Crane 10m / Min With Two Trolleys For Shipyard
Specifications
Brand Name :
KUANGYUAN
Model Number :
A type; ME model
Certification :
ISO CE GOST
Place of Origin :
Henan,China
MOQ :
1Set
Price :
USD 188800~190000
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
3000 sets per year
Delivery Time :
55~65 work days
Packaging Details :
Electrical and other parts packed by high quality plywood crate,Beams packed by plastic woven cloth.
product name :
ME type electric double girder gantry crane with two trolleys for shipyard
type :
double girder gantry crane
working class :
M6
max.lifting weight :
80+80T
lifting height :
24m
lifting speed :
1~10m/min
materials :
Q235B
main electric parts :
Schneider
power supply :
3 Phase 380V 50hz/Custmized
control mode :
Cab
Description

Product description

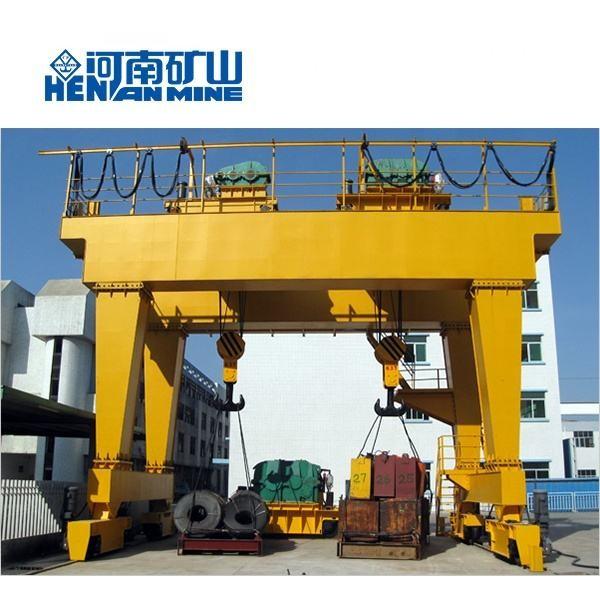

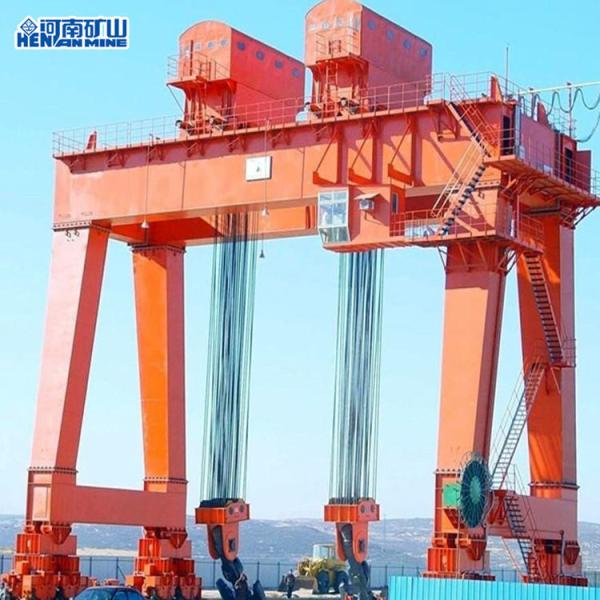

ME type electric double girder gantry crane with two trolleys for shipyard

ME type electric double girder gantry crane with two trolleys for shipyard is a large tonnage A-type double-girder hook gantry crane. Due to the heavy lifting,it is often equipped with double lifting trolleys, and in order to make this kind of large-tonnage crane more widely used, in addition to two lifting trolleys, an electric hoist can also be installed on the lower edge of the main beam to lift small cargos in the workplace.Hanging beams can be installed under the main hooks of the two trolleys as required.This kind of tonnage crane has four sets of wheels, each set of wheels will be equipped with multiple wheels to support the crane.(Optional configurations)

The box-shaped double girder welded structure can increase the working space and facilitate transportation and installation and repair cranes.

The trolley adopts flexible cable to conduct electricity, the crane adopts sliding contact wire type, and there are many kinds of cable reels to choose from. The double-girder gantry crane adopts a closed air-conditioned control room with a linkage control table, which has the advantages of flexible operation, high work efficiency, comfortable work and wide vision.

Features:

Application This product is widely used in large construction sites such as shipyards, highways, railway buildings,subway construction,etc. It is prohibited to use the equipment in the combustible, explosive or corrosive environment,like this special environment requires special cranes, such as explosion-proof cranes.
Control methods >>Pendent line with press button
>>Cabin control
>>Wireless Remote control
Painting >>primer and finishing paint;Anti-corrosion coating
>>Color: yellow, red, blue according to your demand.
>>Average thickness: about 100 microns
Service We could provide turn-key project as your demand include design, manufacture,quality assurance, assembling, testing, commissioning, training and after service.
Design and Construction Rules All the standards required the crane is according to china standards
Safety Guarantee

Weight overload protection device,

Top quality long time bearing polyurethane materials buffer,

Crane traveling limit switch,

Voltage lower protection function,

Emergency stop system,

Current overload protection system and so on!

Product parameters

ME Type Electric Double Girder Gantry Crane 10m / Min With Two Trolleys For Shipyard

Item hoisting mechanism Item running institutions
main lifting electric hoist 80t trolley 80t trolley crane
lifting weight/t 80 80 10 gauge/mm 5500 5500 36000
lifting speed(m/min) 1~10 1~10 7 running speed(m/min) 1.5~15 1.5~15 2~20
lifting height/m 15+24 15+24 13.65+24 based distance/mm 3400 3400 10800
working level M6 M6 M3 working level M6 M6 M6
power supply Three-phase AC 50Hz 380V
electric motor model YZP400L1-10 YZP400L1-10 lifting motor ZD41-4 buffer stroke/mm 100 100 125
power/kw 160 160 13 rail model P43 P43 QU70
speed
(r/min)		 600 600 1400 wheel diameter/mm Ø600 Ø600 Ø700X16
reducer model ZQA1000-i-3CA ZQA1000-i-3CA running motor ZDY121-4 max.wheel pressure/KN 251 251 376
speed ratio 23.34 23.34 0.8X2 electric motor model YZP160M2-6 YZP160M2-6 YZP180L-8
braker model YWZ4-500/E201 YWZ4-500/E201 1380 power/kw 8.5 8.5 13X4
braking torque(N.m) 3600 x 2 3600 x 2 speed
(r/min)		 1000 1000 750
pusher model ED201/6 ED201/6 reducer model ZSCA750 ZSCA750 ZSC(A)-650-1/2
wire rope model 28NAT6W(19)-FC-1770 28NAT6W(19)-FC-1770 speed ratio 133.91 133.91 82
count 12 12 braker model YWZB-200/25 YWZB-200/25 YWZB-300/25
working rally(KN) 75 75 braking torque(N.m) 200 200 320X4
reel Ø1000 Ø1000 pusher model YT1-25ZB/4 YT1-25ZB/4 YT1-25ZC/4

Latest case :Zoomlion with Henan Mine Crane.

ME Type Electric Double Girder Gantry Crane 10m / Min With Two Trolleys For Shipyard

Pre-sale service

>>Efficient response rate during office hours.

>>Professional and comprehensive crane design consultation.

>>Sincere and friendly service attitude.

After-sale service

>>One and a half year warranty for whole machines.

>>Providing free quick-wear part.

>>Low charge for continue maintenance when warranty is expired.

>>Remote online video support for technical and repair installation.
