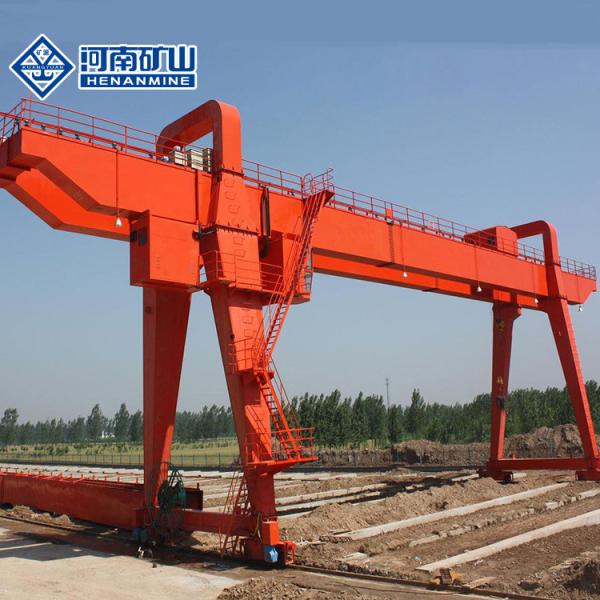

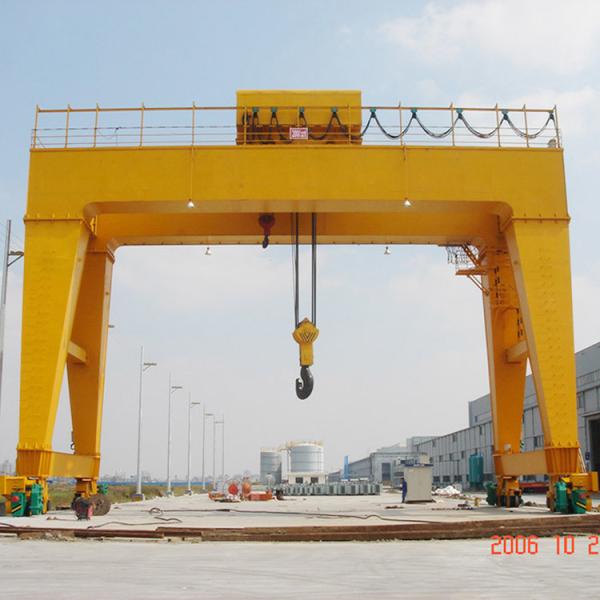

10T MG Type Double Girder Gantry Crane A8 35m Cab Control Trolley Operation
10T MG Type Double Girder Gantry Crane A8 35m Cab Control Trolley Operation
10T MG Type Double Girder Gantry Crane A8 35m Cab Control Trolley Operation
10T MG Type Double Girder Gantry Crane A8 35m Cab Control Trolley Operation
Specifications
Brand Name :
KUANGYUAN
Model Number :
MG-A
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 50000-100000/SET
Payment Terms :
L/C, T/T
Supply Ability :
1000 SETS/YEAR
Delivery Time :
60 DAYS
Packaging Details :
Choose according to the size of the goods
Product name :
10T MG Type Double Girder Gantry Crane Cab Control Trolley Operation
Span :
18m-35m
Power source :
380V 50Hz 3Ph or customized
Lifting mechanism :
Electric Winch
Work duty :
A5-A8
Max. lifting height :
32m
Warranty :
1 Year
Max. lifting load :
Customized DIY Deisign
Color :
According to your demand
Type :
MG
Description
FEATURES AT A GLANCE

10T MG Type Double Girder Gantry Crane Cab Control Trolley Operation

Electric double-girder gantry crane is composed of cart running mechanism, lower beam, outrigger, driver's cab, main beam, trolley running mechanism, hoisting mechanism, escalator, electrical appliances, etc. It is mainly composed of lower beam and trolley. The trolley is composed of an active wheel group and a driven wheel group, and the running mechanism includes components such as a motor, a reducer, a gear, and a wheel group.
The main components of the trolley running mechanism are similar to the trolley running mechanism. The motor is driven by the reducer, and the pinion on the reducer is then transmitted to the large gear, so that the trolley can travel back and forth. The lifting mechanism is installed on the trolley frame, and the lifting movement is realized by the hoist and the matching fixed pulley, movable pulley or hook.
PRODUCT CONFIGURATION
Main girder
Hoisting Trolley
Cable drum
Motor (Siemens Schneider available)
Hook
Wireless Remote Control/Cabin Control
PRODUCT SPECIFICATIONS

Attention:
Safety is the most important issue for cranes.

1. Our safety device for MG type overhead crane: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Overhaul cage, Protective cover, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and others you required.

2. View more gantry crane type, please refer to our related product).
RELATED PRODUCT
Contact us for the latest quotation.
BMH Type semi gantry crane Model: BMH type Capacity: 3-16 ton Hoisting height: 3-9m Span: 5-20m Control: Wireless remote control, cabin control, Ground control
MH Type single girder gantry crane Model: MH Capacity: 3-16 ton Hoisting height: 1-30m Span: 12- 30m Control: Remote control, Cab control, Ground control
L type single girder gantry crane Model: MH truss type Capacity: 5-50 ton Hoisting height: 1-12m Span: 12-35m Control: Wireless remote control, cabin control
MH Truss type gantry crane Model: MH truss type Capacity: 5-20 ton Hoisting height: 1-10m Span: 12-30m Control: Wireless remote control, cabin control
UTypecontainer gantry crane Model: RMG Capacity: 5-320ton Hoisting height: 1-30m Span: Max 31.5m Control: Remote control, Cab control
LDA Single girder overhead crane Model: LDA Capacity: 1-32ton Span: Max 31.5m Control: Remote control, pendent controller with push buttons, cab control
COMPANY PROFILE
Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Customers visit
Click it you can find our all customers cases.
PRODUCT PACKAGING

Main Girder

Girder will be packed with water-proof plastic woven cloths and shipped with containers.

Spare parts

Electric and other spare parts are packed by high quality plywood crate.
FAQ
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q6: Can this type work in hazardous environment?
A7: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q8: Can you provide the various lifting tools?
A8: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
