QL Type A7 Double Girder Bridge Crane Revolving Electromagnetism Hanger
QL Type A7 Double Girder Bridge Crane Revolving Electromagnetism Hanger
QL Type A7 Double Girder Bridge Crane Revolving Electromagnetism Hanger
QL Type A7 Double Girder Bridge Crane Revolving Electromagnetism Hanger
Specifications
Brand Name :
KUANGYUAN
Model Number :
QL
Certification :
ISO CE GOST
Place of Origin :
Henan,China
MOQ :
1Set
Price :
USD 45000-46500
Payment Terms :
L/C, T/T
Supply Ability :
30000 sets per year
Delivery Time :
45~65 work days
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co
product name :
revolving electromagnetism hanger bridge crane
girder type :
double type
working class :
A6, A7
lifting capacity :
10+10T, 12.5+12.5T, 13.5+13.T
lifting height :
16m
lifting speed :
11.4m/min
rotation speed :
0.8r/min
main electrical parts :
Schneider Brand
power source :
3 Phase 380V 50hz/Custmized
control method :
Wireless Remote Control or cabin Control
Description
PRODUCT DESCRIPTIONS

QL type 10+10~13.5+13.5t revolving electromagnetism hanger bridge crane A7

QL type Rovolving electromagnetic hanging girder bridge crane is one of the derived categories of general-purpose bridge cranes, and it is one of the mechanical equipment for short-distance material handling in modern industrial production. It is widely used in workshops, warehouses and other places, which greatly reduces the physical labor intensity and improves production efficiency.

This kind of crane is a mechanical equipment for loading, unloading and handling materials in the span. It usually consists of a metal structure, a lifting trolley (hanging beam), a cart operating mechanism and an electrical control. And the hanging beam, the hoisting mechanism drives the two drum groups to complete the lifting and lowering of the electromagnetic hanging beam under the two hooks after decelerating through the two reducers. All agencies have cab or wireless remote control.

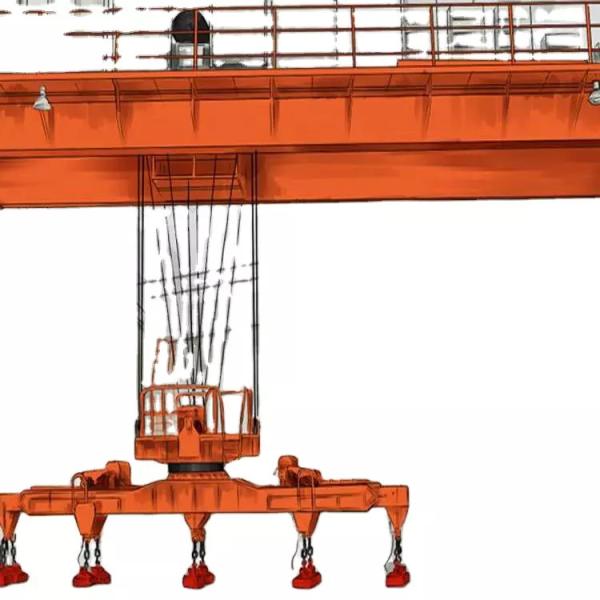

The crane is equipped with a rotatable hanging beam, which is suitable for indoor or open-air fixed spans such as steel mills, shipyards, ports, yards and warehouses to load, unload and transport materials such as steel plates, section steel, and coils. It is especially suitable for lifting and transporting different specifications and occasions requiring horizontal rotation. The hanging beam is a cross structure, which is reliable and safe, and has a certain anti-sway function. Special spreaders such as electromagnetic suction cups and clamps can be carried under the hanging beam.
The ambient working temperature of the crane is generally in the range of -20~40 degrees Celsius, and it is not suitable for places with strong corrosive gases and inflammable and explosive places. When used in the open air, rainproof equipment must be provided.
FEATURES AT A GLANCE
Main features:
1).Heavy duty slip ring motor, IP54 or IP55, insulation class F or H, soft starting and smooth running.
2). Wheels, wire rope drum, gears, couplings are processed by CNC machine center, Top quality control.
3). Siemens or Schneider main electrical parts are used for durable and safe operation.

Safety device:
1). Weight overload protection device.
2). Lifting limit switch and traveling limit switch.
3). Emergency stop system.
4). Zero voltage protection.
5). Phases protection device and so on
6). Top quality long time bearing polyurethane materials buffer.
PRODUCT PARAMENTERS
Technique paremeters
起重量lifting weight t 10+10 12.5+12.5 13.5+13.5
工作级别working class A6 A7 A7
跨度span m 28.5 28.5 31.5
最大起升高度Max.lifting height m 16 10 13
速度Speed 起升hoisting m/min 11.4
旋转rotation 0.8r/min
小车运行travelling of crab 38
大车运行travelling of trolley 88
电动机motor 起升hoisting kw YZR315S-10/55 YZR315M-10/75 YZR315M-10/75
旋转rotation YEZ112L-4/4.5
小车运行travelling of crab YZ160M-6/7.5
大车运行travelling of trolley YZR200L-8/2*15
电源power source 380V 50Hz 3-Ph AC

FAQ&CONTACT US
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
