5T 16T Double Girder Overhead Crane Two Purpose Bridge Crab Hook For Warehouse
5T 16T Double Girder Overhead Crane Two Purpose Bridge Crab Hook For Warehouse
5T 16T Double Girder Overhead Crane Two Purpose Bridge Crab Hook For Warehouse
5T 16T Double Girder Overhead Crane Two Purpose Bridge Crab Hook For Warehouse
Specifications
Brand Name :
kuangyuan
Model Number :
QN
Certification :
CE ISO GOST
Place of Origin :
China
MOQ :
1set
Price :
USD22300~73500 sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000 per years
Delivery Time :
40days
Packaging Details :
export packing
Span :
7.5~31.5m
Max. lifting height :
20/22m
Self weight :
26400kg
Working duty :
A6
Condition :
New
Warranty :
1 Year
Description

Two Purpose Bridge Crane 5T 10T 16T Include Crab And Hook For Warehouse

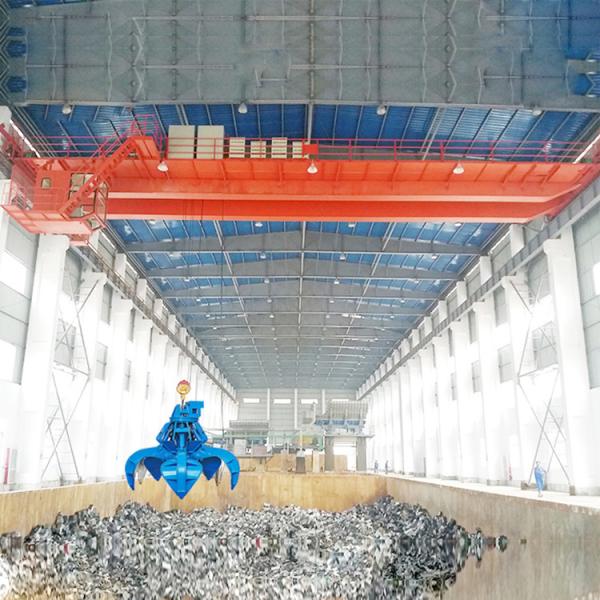

QZ type grab bridge crane is suitable for the warehouses and workshops of metallurgical, cement, chemical and other enterprises to handle ores, limestone, mineral powder, coke, coal sand and other granular materials indoors or in the open air and between fixed spans. This machine belongs to the heavy-duty (A6) working system, and the lifting capacity includes the self-weight of the grab.

This machine is composed of box-shaped bridge frame, cart running mechanism, trolley, grab bucket and electrical equipment, all of which are operated in the control room.

5T 16T Double Girder Overhead Crane Two Purpose Bridge Crab Hook For Warehouse

Lifting Capacity T 5t 10t 16t 20t
Span m 10.5-31.5m
Speed Lifting m/min 40.1 40.7 41.8 48.6
Traveling of Trolley 44.6 45.6 43.2
Traveling of Crane 93.7/86.4 76/89 89/87.3 87.3
Operational Model Cabin; remote control
Working Duty A6
Steel track recommended 43kg/m or QU70
Power Supply Three-phase A.C. 380V, 50Hz

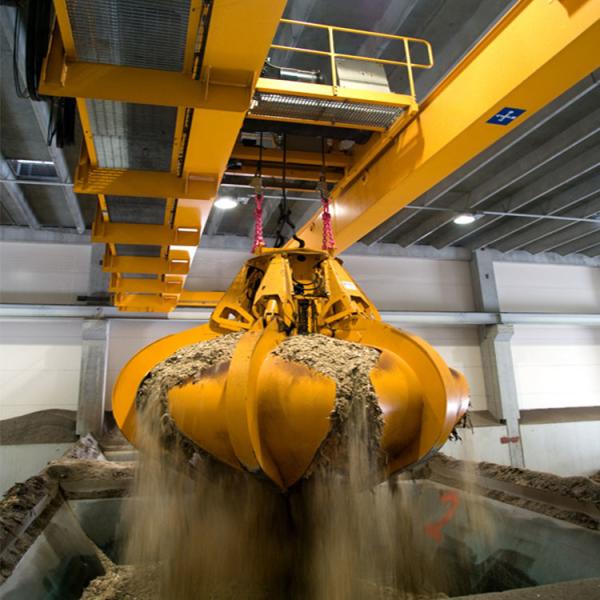

The fetching device is a four-rope grab bucket with double drums, with simple structure and reliable operation. The grab can be opened and closed at any height. When the grabbing material particles are less than 100mm, the effect is good and the production efficiency is high. When the grabbed particles are 200mm large, a toothed grab is required.

Grab buckets are more suitable for bulk materials in a natural accumulation state. When grabbing underwater materials or special materials, it must be specially proposed in the order. When using in the open air, waterproof equipment must be provided.

5T 16T Double Girder Overhead Crane Two Purpose Bridge Crab Hook For Warehouse

FAQ:

Customer: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated .
Customer: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions .
Customer: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution .
Customer: What areas do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training Moreover, our best sales can visit your country.
Customer: Can you provide the various lifting tools?
A6: Sure, we can provide any lift tools such as lift sling belt lift clamp, grab, magnet or other specials as your requirement!
