Electric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 Ton
Electric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 Ton
Electric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 Ton
Electric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 Ton
Specifications
Brand Name :
Kuangyuan
Model Number :
LH Model
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
21500 usd /set
Payment Terms :
L/C, T/T
Supply Ability :
8000 sets per year
Delivery Time :
35days
Packaging Details :
Export packaging
Material :
Q235B STEEL
Product name :
LH Type Double Girder Overhead Crane
Span :
10.5-31.5
Lifting speed :
6m 9m 10m 12m
Description

Electric Hoist Lifting LH type 15 ton 20 ton Double Girder Overhead Crane

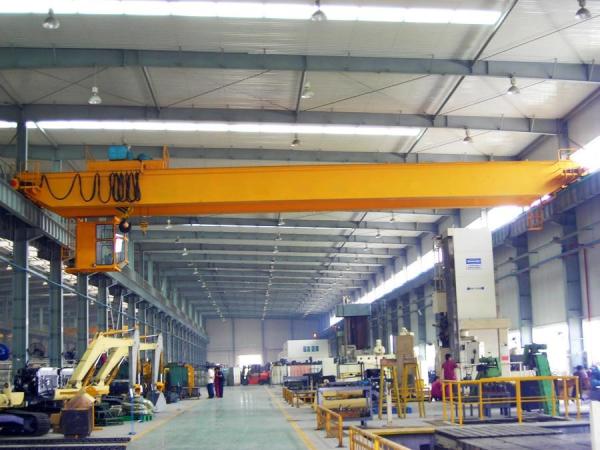

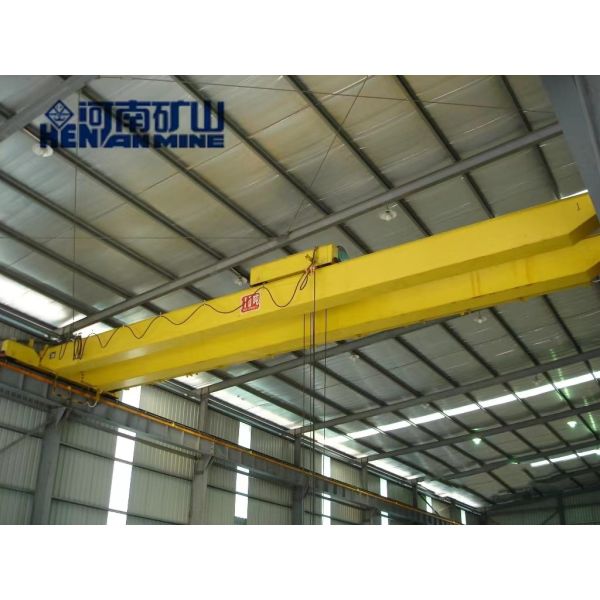

The Electric Hoist 10 20 Ton Double Girder Overhead Crane is light and medium duty materials lifting machine, with lifting capacity of 1-10 ton, span of 10.5~31.5 meters, and lifting height of 6-9 meters. The equipment is widely used in factories, mines, warehouses and workshops. The Hoist Overhead Crane is mainly comprised of box-shape bridge, trolley, long travelling mechanism, cab and electric control system.It is prohibited to use the equipment in combustible, explosive and corrosive environment.

Electric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 TonElectric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 Ton

Lifting weight(t) 15-20
Span(m) 10.5-31.5

Speed

(m/min)

 Hoisting 7,7/0.7
Traveling of crab 20
Traveling of trolley Surface 20(30)
Cabin 20(30)

Electric hoist

 ZD151-4/13
Lifting height(m) 9,12
Working class A3~A5
Power source 380v 50Hz three-phase
Crane rail recommended(kg/m) 38

Electric Hoist Double Girder Overhead Crane Lifting LH Type 15 Ton 20 Ton

1.Girders are made of well-chosen steel plate, and processed by shot-blasting technology, thus the intensity and toughness are reliable. On the main girders laid the rails for cross travel.

2. The motor adopted is top in China and features large overload capacity and high machinery intensity with low noise. With the protection level of IP44 or IP54, and insulation class of B or E, , the LH overhead crane is able to meet the demand of general usage.

3. The electric parts adopt international brand Siemens, Schneider, or Chinese top brand Chint to ensure the accurate and safe operation.

4. Wheels, gears, and couplings are processed by medium-frequency quenching technology, abd have a great improvement in intensity, rigidity and tenacity.

5.Painting: a Primer and finishing paint b Average thickness: about 120 microns c Color: according to your request

FAQ:

Q1: What's the information should I provide when inquiry?

A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What areas do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q5: Can this type work in hazardous environment?
A5: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q6: Can you provide the various lifting tools?
A6: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
