1T Battery Trolley Crane Electric Rotating For Places With Flat Floor
1T Battery Trolley Crane Electric Rotating For Places With Flat Floor
1T Battery Trolley Crane Electric Rotating For Places With Flat Floor
1T Battery Trolley Crane Electric Rotating For Places With Flat Floor
Specifications
Brand Name :
KuangYuan
Model Number :
Battery Trolley Crane
Certification :
CE, ISO
Place of Origin :
Henan, China
MOQ :
1set
Price :
USD 8000-12000
Payment Terms :
L/C, T/T
Supply Ability :
20000 sets per year
Delivery Time :
35 days
Packaging Details :
Packed by high quality plywood crate
Name :
Battery Trolley Crane
Capacity :
1 ton
Lifting Height :
2500-3000mm
Rotation :
90°
Color :
Yellow
Battery :
24/165 V/A
Application :
Flat floor
Voltage :
Customized
Description

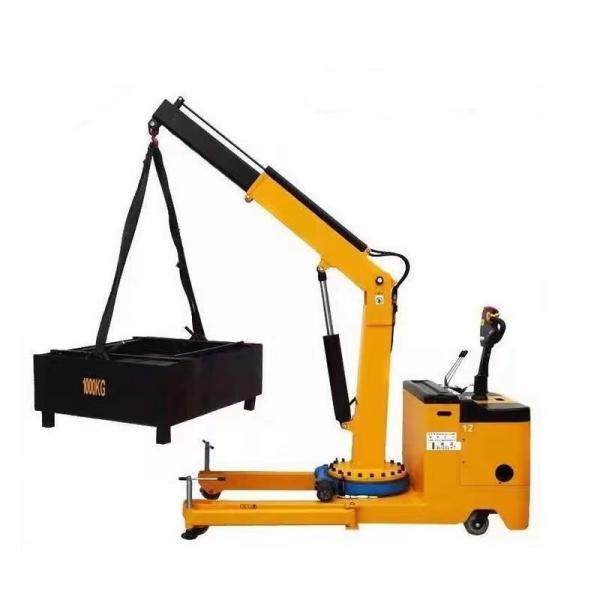

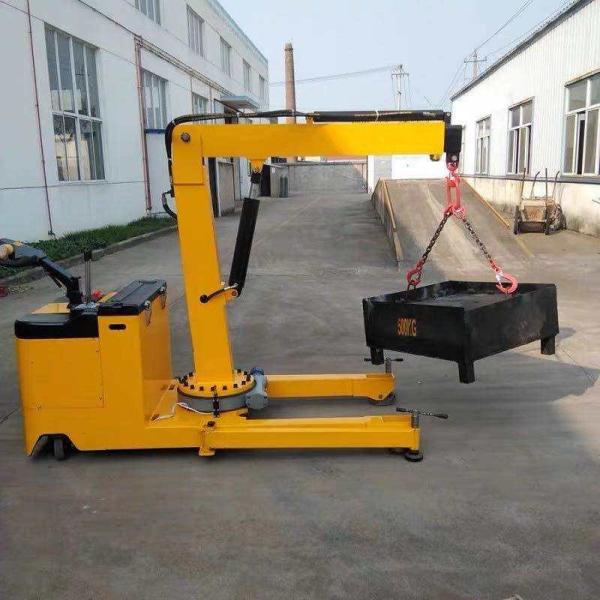

1T Battery Trolley Crane with Electric Rotating for Places with Flat Floor

1. Product Description

Arm extends, return and rotate electrically, proper for lift and move Max. 1ton capacity material; Arm Lift up and down, hook min. height to ground is 600mm, proper to catch material above 600mm height; Outriggers with inner width 680mm, proper to container material narrow than 680mm. Or the straddles could enter pallet to lift the material; Pedestrian operation, good for use in plant area, warehouse and workshop, places with flat floor.

Battery power drive to walk, lifting. Generally used during the day and charged for about 8 hours at night. The boom can be electrically stretched and rotated by 90 degrees. Liwhen, but not when rotating, and support legs must be supported in place.

2. Product Parameter

Item Descriptions
Name Battery trolley crane
Model SDC-A-1030
Capacity(Tons) 1
Lifting height(m) 3
Battery(V/Ah) 24/180
Charge(V/Ah) 24/25
Lifting Motor(Kw) 2.5
Driving Motor(Kw) AC1.5
Rotation(°) 90
Outriggers Length(mm) 950
Outriggers Inner Width(mm) 680
Straddles Overall Width(mm) 990
Outriggers Ground Clearance(mm) 200
Min. Arm Extending Distance from Outriggers(mm) 400
Weight(Kg) 910
Overall size(mm) L*W*H 3100*990*1600
Turning Aisle(mm) 3300
Passing Aisle(mm0 1100
Driving wheel(mm) 1*150*80
Auxiliary wheel(mm0 2*150*50
Front wheels(mm) 2*150*75
Climbing slope(%) 4/6
Travel Speed(Km/s) 4/6 Loaded/Unloaded
Lifting Speed(mm/s) 45/50 Loaded/Unloaded
Falling Speed(mm/s) 45/40 Loaded/Unloaded
Service Brake Elwctromagetic braking

1T Battery Trolley Crane Electric Rotating For Places With Flat Floor

1T Battery Trolley Crane Electric Rotating For Places With Flat Floor

3.Packing and Delivery

1T Battery Trolley Crane Electric Rotating For Places With Flat Floor

4. FAQ:

1). How many operating methods for my selection?

Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons

2). Can this type work in hazardous environment?

Sure! We can customize for you, acid proof or explosion proof, no problem for that.

3). Can you provide the serious lifting tools?

Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

4). How can we install the winch?

Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

5). Safety device

Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
