Working Class A3 Electric Wire Rope Hoist 5ton Construction
Working Class A3 Electric Wire Rope Hoist 5ton Construction
Working Class A3 Electric Wire Rope Hoist 5ton Construction
Working Class A3 Electric Wire Rope Hoist 5ton Construction
Specifications
Brand Name :
Kuangyuan
Model Number :
CD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
800-2500 usd/ set
Payment Terms :
L/C, T/T
Supply Ability :
10000 sets per year
Delivery Time :
25 days
Packaging Details :
Export packaging
Sling type :
Wire Rope
Lift speed :
8m/min
Warranty :
1 Year
Usage :
Construction Hoist, Mining Hoist
Description

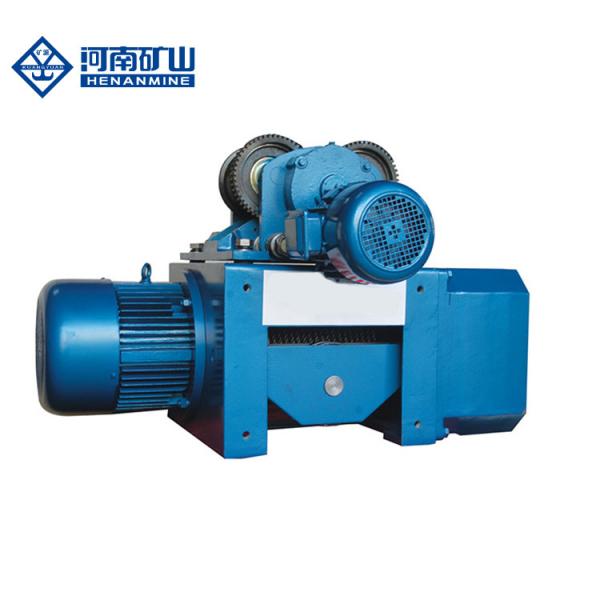

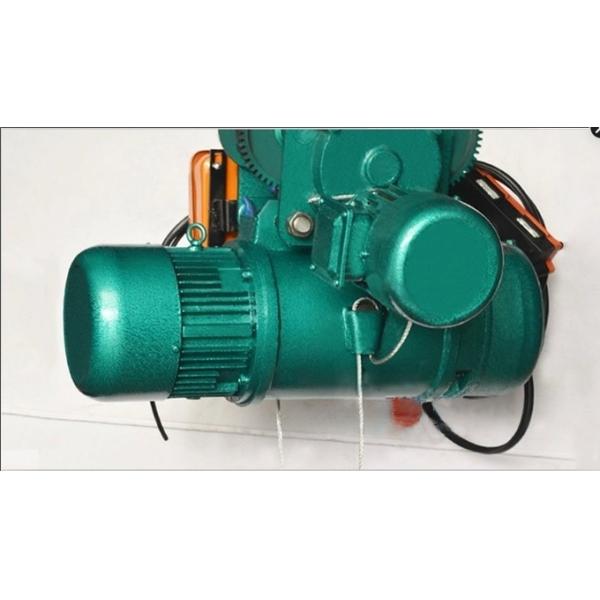

Working Class A3 Electric Wire Rope Hoist 5ton Construction Hoist

Model CD1 electric wire rope hoist is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification. it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only normal speed, which can satisfy normal application.

Working Class A3 Electric Wire Rope Hoist 5ton Construction

Working Class A3 Electric Wire Rope Hoist 5ton Construction

TYPE
0.25TON
0.5TON
1TON
2TON
3TON
5TON
10TON
Lifting capacity(T)
0.25
0.5
1
2
3
5
10
Lifting height(m)
3-9
6-12
6-30
6-30
6-30
6-30
6-30
Lifting Speed (m/min)
8(8/0.8)
8(8/0.8)
8(8/0.8)
8(8/0.8)
8(8/0.8)
8(8/0.8)
7(7/0.7)
Running Speed (m/min)
20(30)
Wire rope type
6×19-3.6
6×37-4.8-180
6×37-7.4-180
6×37-11-155
6×37-13-170
6×37-15-200
6×37-15-200
I-beam track model
16-22b
16-28b
16-28b
20a-32c
20a-32c
25a-63c
28a-63c
Voltage(V)
220-440
220-440
220-440
220-440
220-440
220-440
220-440
Frequency(Hz)
50/60
50/60
50/60
50/60
50/60
50/60
50/60
Phase
3
3
3
3
3
3
3

Electric wire rope hoist details parameters:

Our Electric Wirerope Hoist :

Safety feature:
(1) Weight overload protection device
(2) Lifting height limit device
(3) Voltage lower protection function
(4) Phase sequence protection function
(5) Emergency stop function
Advantage:
(1) Reasonable structure;
(2) Adjustable speed if client request;
(3) Smooth starting and stopping;
(4) Low noise, safe and reliable traveling;
(5) Convenient maintenance, excellent exchange ability for parts and components;
(6) Saves electricity specifications.

Our service:

• 1 year of after-sale service!

• Your any inquiry will be replied within 24hours.

• Well-trained & experienced staff are to answer all your inquiries professional in English.

• OEM is highly welcomed. We have strong team here to help.

• Your business relationship with us will be confidential to any third party.
