Various lifting electromagnet for different ferromagnetic materials with strong suction

The lifting electromagnet is a special electromagnet with the absorbed object as the armature.It is a physical quantity of sucked ferromagnetic material by electric and magnetic equipment,metallurgy,mine,machinery,shipbuilding, transportation and other industries such as iron and steel lifting guide magnetic materials indispensable lifting tools.After many years of popularization and application,the use of lifting electromagnet has been widely expanded,because of the diversity of the suction,the structure of the lifting electromagnet,magnetic circuit distribution,manufacturing process are also different,so the formation of a series of products,strong pertinence.Usually,each series electromagnet can be divided into two model:normal temperature type and high temperature type.

Classification:(8 categories)

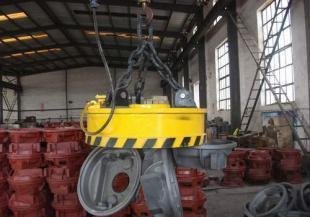

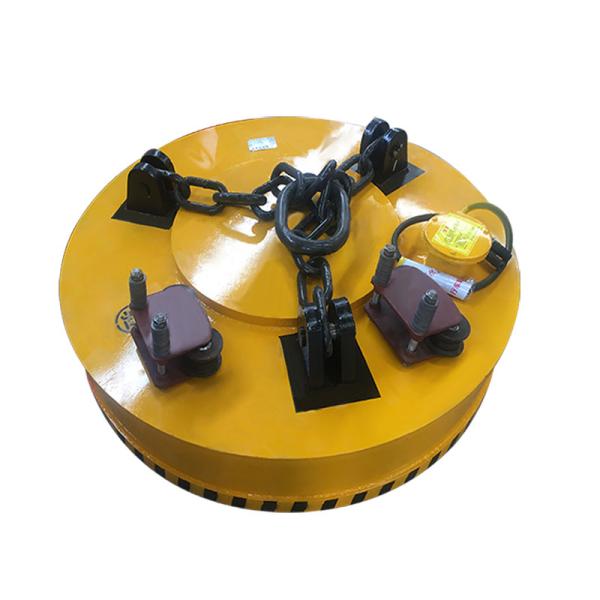

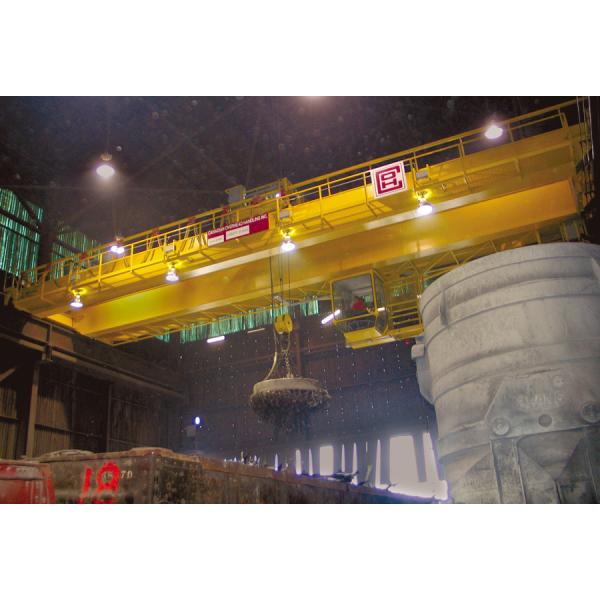

Scrap steel lifting electromagnets (large discs, elliptical discs - specially designed for efficient loading and unloading of scrap steel in narrow compartment according to the shape of the car body);

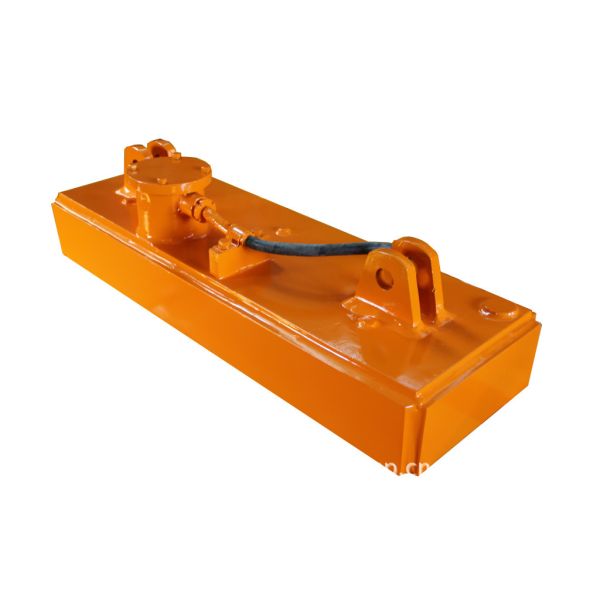

Electromagnet for the lifting of billets, beams and slabs (the most widely used rectangular electromagnet, several of which are installed on the hanging beams)

High-speed wire (Pan Yuan) special type lifting electromagnet (the length of the electromagnet depends on the length of the disc, it can lift multiple bundles of coils "head-to-head" along the length of the electromagnet, or along the width direction" shoulder-to-shoulder "lifting and transporting multiple bundles)

Special lifting electromagnet for banding thread steel and section steel (using a unique "1-1" type magnetic circuit, double line packagel structure, with good heat dissipation, deep magnetic permeability, and able to penetrate multi-layer air gaps)

Lifting electromagnet for hanging pipe billet and steel pipe (a rectangular electromagnet that is widely used;it is like the second one type.)

Lifting electromagnet for lifting heavy rail and shaped steel (The electromagnet uses a unique "1-1-1" magnetic circuit, which is used for lifting heavy rails, section steel or special-shaped steel, etc.; more than two or more are used for lifting)

Lifting electromagnet for lifting steel plate (considering that the steel plates are bent and deformed due to gravity during the lifting process, which affects safe handling, so multiple electromagnets are generally used in combination)

Lifting electromagnet for lifting steel coils (used to suck and hoist steel coils, divided into vertical lifting type, horizontal lifting type and general lifting type; the first one type, the electromagnet attracts the end face of the coil, suitable for lifting and bundled or un-bundled coils; the second one type, the electromagnet attracts the sides of the coils, the coils must be bundled)

Characteristics:

• Adopt full closed structure,good-moisture proof performance;non magnetic protection plate using the manganese steel,good weld-ability,good magnetic isolation performance,wear resistance and impact resistance;
• Introducing advanced technology from foreign countries,and through perfecting and innovating,adding computer optimized design, reasonable product structure, light weight, large suction and low energy consumption;
• The excitation coil is treated by a special process, which improves the electrical and mechanical properties of the coil, and the heat resistance level of the insulating material reaches Class C, the service life is long;
• The rated duration of the ordinary electromagnets has been increased from 50% in the past to 60%, which improves the use efficiency of electromagnets;
• The ultra-high temperature electromagnet adopts unique heat insulation and anti-heat radiation measures, and the temperature of the absorbed material has increased by 700°C from the previous 600°C, which expands the application range of the electromagnet;
• Provide control cabinets, cable reels and other auxiliary equipment, complete sets of services;
• Installation, operation and maintenance are simple and convenient, and remote online guidance can be provided according to customer requirements.
