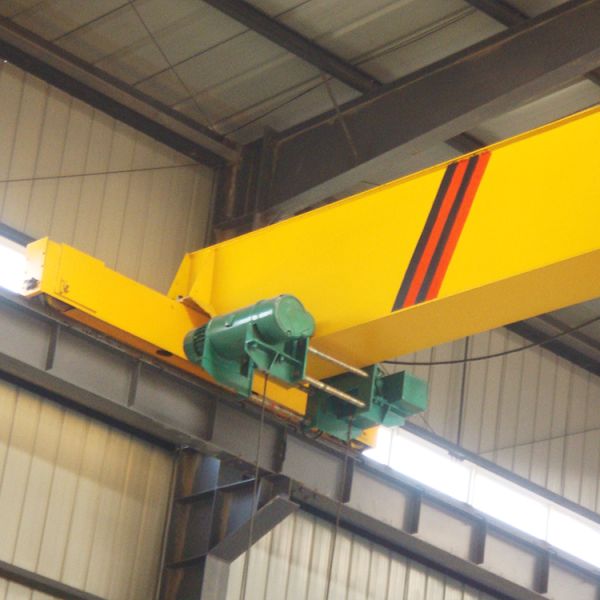

5 Ton Remote Control European Single Beam Electric Bridge Travelling Crane

Product Description of European Type Single Beam Overhead Crane:

European single girder overhead crane is composed of girder weld by steel plate and I-steel, end girder, electric hoist and travelling mechanism. The electric hoist runs along the lower flange of the I-steel of the girder to accomplish article hoisting. It features light structure and easy installation and maintenance, and is widely used for different places for hoisting, such as factories, warehouses and material yards. It is prohibited to use in the environment with inflammable, explosive and corrosive media.

Main Features of European single girder overhead crane:

Feature:

1, Overhead traveling on the steel structure, normally in workshop

2, Light self weight, could save steel structure cost.

3, Lifting and traveling is very accurate.

4, VVF/ frequency inverter control, continuous speeds to operate, very stable to lift and traveling.

5, Six direction action, to make sure the enough wide working area.

6, Full safety system as follows:

Weight overload protection

Emergency stop system

Over current protection,Short-circuit protection

Phase sequence protection

Zero position protection

Voltage loss protection

Limit switch and stopper for crane long traveling and cross traveling

Lifting overhigh and overlow limit switch

Attention:

Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).the following safety devices are equiped in Crane.

1. crane traveling limit switch.

2. Weight overload protection device.

3. Lifting height limit device.

4. Voltage lower protection function.

5. Emergency stop function.

Product Structure
