16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control
16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control
16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control
16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control
Specifications
Brand Name :
kuangyuan
Model Number :
LDA
Certification :
ISO9001 SGS CE EAC
Place of Origin :
Henan,China
MOQ :
1SET
Price :
Discussible
Payment Terms :
L/C, T/T
Supply Ability :
20000Sets per Year
Delivery Time :
20Work Days
Packaging Details :
High-quality plywood box and rainproof cloth
Feature: :
Single Beam Overhead Crane
Max. Lifting Load :
16Ton
Span :
7.5-31.5m
Lifting height :
6m 9m 12m 18m
Power supply :
220~440V50/60Hz3PhAC
Main electrical part :
Schneider/Siemens/Chint
Control model :
Remote Control
Condition :
New customization
Motor :
Squirrel cage motor
Motor protection class :
IP44,IP54,IP55
Description

16Ton Remote Control Single Girder Wire Rope Hoist Bridge Traveling EOT Crane

Product description of 16T Remote Control Single Girder Wire Rope Hoist Bridge Traveling EOT Crane:

LDA single-beam bridge crane is a hoisting machinery with a wide range of applications at present. Cranes generally work indoors, and the working environment temperature is -20℃-50℃. The relative humidity of the air does not exceed 85%. The crane adopts a single main beam structure, and uses an electric hoist as a lifting mechanism, which is suspended on the lower edge of the main beam for lateral movement. The travel mechanism of the crane is driven by the brake motor to drive the reducer, and the wheels rotate to realize the longitudinal movement of the crane.

Technical Parameter(customizable) of 16Ton Remote Control Single Girder Wire Rope Hoist Bridge Traveling EOT Crane:

Lifting weight T 1t 2t 3t 5t 10t 16t 20t
Span m 7.5~22.5m 7.5~31.5
Speed Lifting MD1 hoist m/min 8/0.8 (7/0.7) 3.5/0.35
CD1 hoist 8 (7) 3.5
Traveling of electric hoist 20 20
Traveling of cable trolley crane 20/30 20/30
Wheel diameter Φ270 Φ370
Width of trail 37~70mm 37~70mm
Operational Model Remote control; ground handle Remote control; ground handle
Working Duty A3
Power Supply According to your demands According to your demands

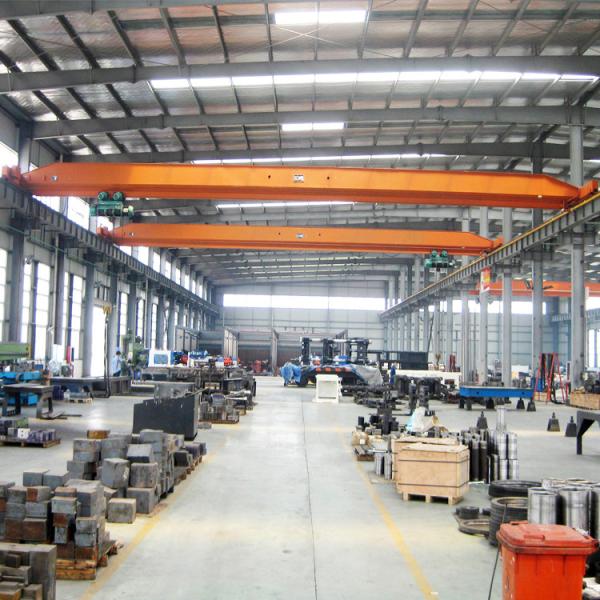

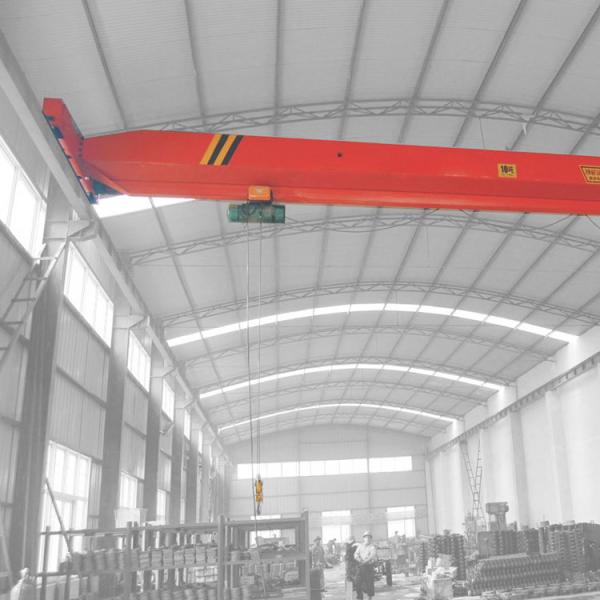

Photos of 16Ton Remote Control Single Girder Wire Rope Hoist Bridge Traveling EOT Crane

16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control

Sketch of 16Ton Remote Control Single Girder Wire Rope Hoist Bridge Traveling EOT Crane16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control

Main Features of 16Ton Remote Control Single Girder Wire Rope Hoist Bridge Traveling EOT Crane:

Design as per latest technology of ISO,CE Standard

Lifting weight 1-20ton

Span 7.5m-31.5m

Reasonable structure, strong rigidity

According to customer needs can be equipped with different spreader

Standard modular design

Light structure,strong bearing capacity

Low noise, soft starting and stopping ;

Safe and reliable operation

FAQ

A: Can you provide custom service?

B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.

A: Are there any professional technicians to assist our installation?

B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

A: Whether or not you can offer the matched spare parts?

B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.

A: How can you ensure the quality?

B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.

Installaton case:

16Ton Single Girder Wire Rope Hoist Bridge Traveling EOT Crane Remote Control
