5T Explosion Proof Electric Hoist Single Girder Eot Crane For Explosive Workshop
5T Explosion Proof Electric Hoist Single Girder Eot Crane For Explosive Workshop
5T Explosion Proof Electric Hoist Single Girder Eot Crane For Explosive Workshop
5T Explosion Proof Electric Hoist Single Girder Eot Crane For Explosive Workshop
Specifications
Brand Name :
Kuangyuan
Model Number :
LB
Certification :
CE ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
300 Sets/Month
Delivery Time :
30 Days
Packaging Details :
Standard Shipping packaging
Name :
LB Model 5 Ton Explosion-proof Electric Hoist Single Beam Bridge Crane for Explosive Workshop
Lifting Height :
6~24 M
Power Source :
3Ph 220--440 V/50hz60HZ
Work Duty :
A3
Lifting mechanism :
Electric Hoist
Control method :
Pendent Control+Remote Control
Working temperature :
-10 ~45'C
Motor protection class :
IP54
Main electrical parts :
Schneider Brand
Steel :
Q235b
Description

LB Model 5 Ton Explosion-proof Electric Hoist Single Beam Bridge Crane for Explosive Workshop

Pro duct Description of Explosion-proof Single Beam Crane:
LB Explosion proof Single Girder Overhead Crane is improved and designed on the basis of LDA model. It is characterized by more reasonable structure, beautiful appearance and strong anti explosion characteristics, Used together with HB model, HBS model explosion-proof electric hoist as a complete set, mainly used in machinery manufacturing and places like assembling plants, storage houses.with the advantages of low energy consumption, strong rigidity, light weight, outstanding structural design, etc.

Product Technical Parameter Sheet of Explosion-proof Single Beam Crane:

Technical Specifications
Crane Traveling Mechanism Lifting Speed m/min 20
Reduce Ratio 58.95
Motor Type Cone-shape Cage
Power KW 0.8×2,1.5×2,2.2×2
RPM r/min 1380
Lifting Mechanism (Electric Hoist) Hoist Type HB, BCD, BMD
Lifting Speed m/min 8/0.8,7/0.7,3.5/0.35 8,7,3.5
Lifting Height m 6, 9, 12, 18, 24
Traveling Speed m/min 20
Motor Cone-shape Cage
Work Duty A4
Power Supply 380V, 50Hz, Three Phase
Diameter of Wheel Φ270mm,Φ400mm
Wideth of Track 37mm~70mm
Explosion-proof Grade ExdⅡBT4/ExdⅡCT4

Main Features of LB model Explosion proof Overhead Crane:
1).Light structure,easy installation and maintenance;
2). Reasonable structure,strong bearing capacity ;
3). Low noise, soft starting and stopping ;
4). Safe and reliable operation ;
5). Low cost maintenance, long working life;
6). Strong box type,welding by machine hand.;
7). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
Attention:
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
Product Structure of Explosion-proof Single Beam Crane:

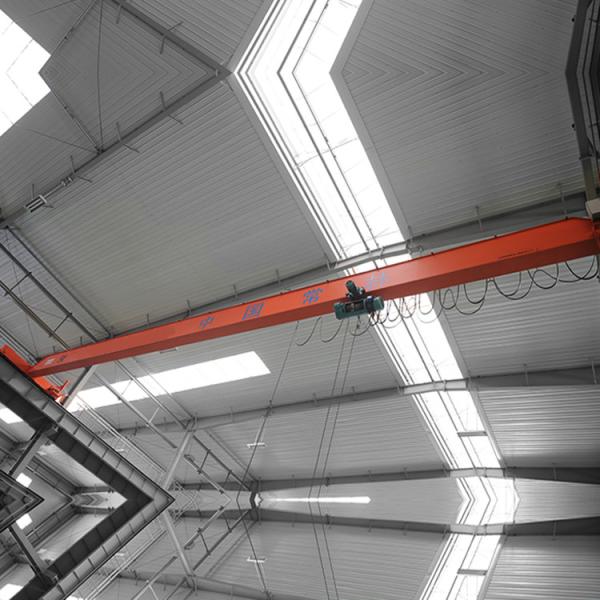

Photo of Explosion-proof Single Beam Crane:

5T Explosion Proof Electric Hoist Single Girder Eot Crane For Explosive Workshop

Main Parts of Explosion-proof Single Beam Crane:

Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Main Product:
Henan Mine Crane meet the demands of factory, workshop, port, mining, waste disposal, goods dispatching, petrochemical, aerospace, military and other industries with universal bridge crane, overhead crane, gantry crane,goliath crane,frame crane,door crane,universal gantry crane, rubber tyre and rail mounted container gantry crane, mining grab crane, gantry crane, scissor type mobile hydraulic platforms and other types of hydraulic crane.
Company Introduction:
Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Rail Mounted Container Gantry Crane/European type Single Beam or Double Beam Overhead Crane and Gantry crane and hoist /Electric Winch,Cantilever Jib crane,Hydraulic Scissor Lift/Crane parts and components.
Henan Mine Crane company has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, has obtained ISO,CE,EAC,GOST, etc certifications, cranes and hoists have been exported to 120countries.
In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works,Tariq Glass Industies Ltd.
Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
If you are interested in our cranes,welcome you contact me any time.
