10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane
10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane
10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane
10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane
10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane
10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane
Specifications
Brand Name :
Kuangyuan
Model Number :
QD
Certification :
CE ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100ets/month
Delivery Time :
30working days
Packaging Details :
Standard export packaging
Product Name :
25ton Workshop QD Type Double Girder Overhead Bridge Travelling Crane
Crane type :
Double Girder Overhead Crane
Power Source :
3P 220--440 V/50hz60HZ
Work Duty :
A3-A5
Main electrical parts :
Schnider, SIMENS or as request
Lifting mechanism :
Electric trolley
Control method :
Ground Control+Remote Control+Cabin Control
After-sales Service Provided :
Online support
Working temperature :
-10 ~45
Description

10 Ton Workshop QD Type Double Girder Overhead Bridge Travelling Crane

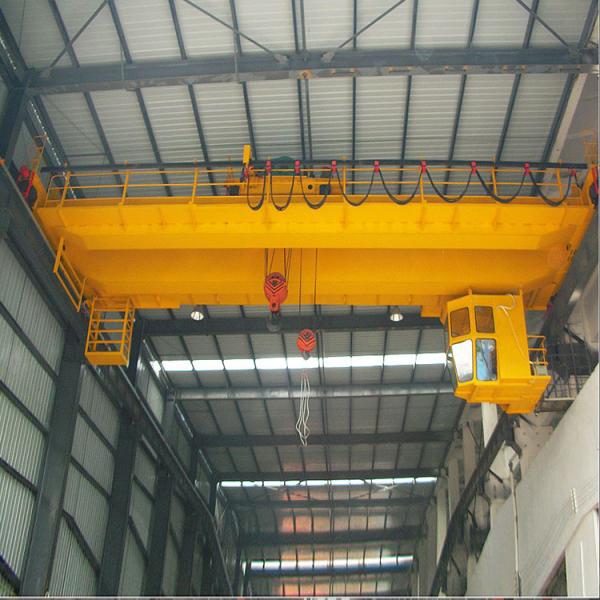

QD Double girder overhead crane is composed with girder frame, crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.

Main Parts of QD Moddel Crane 10 Ton Electric Double Beam Bridge Crane:

Mechanism Item Unit Result
Item
Lifting capacity ton 10
Lifting height m 1-20
Span m 10.5-31.5
Working environment temperture °C -25~40
Speed Hoisting Main m/min 0.84-9.5
Aux. 5.22-12.6
crab 5.8-38.4
trolley 17.7-78
Working system A5-A6

Sketch:

10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane

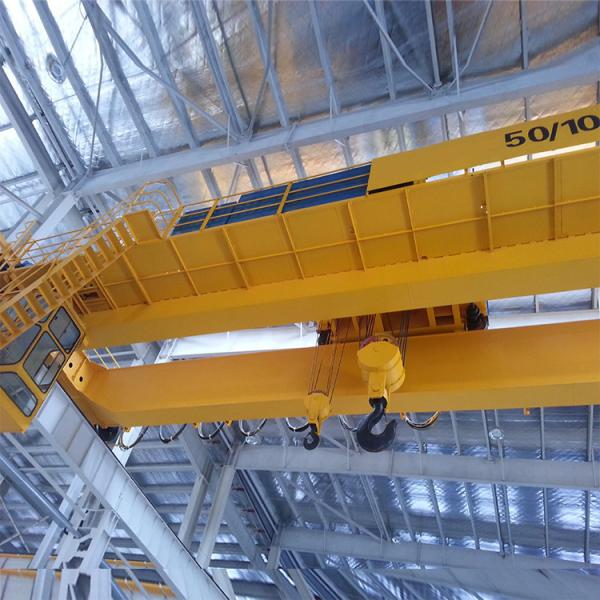

Photos:

10 Ton Workshop QD Type Double Girder Overhead Crane Bridge Travelling Crane

Main Features of QD model overhead crane:


1). Long Life Span: 30-50 years;
2). Easy for Installation and maintenance;
3). Reasonable structure and strong rigidity;
4). The speed can be frequency inverter speed control;
5). Control method is cabin control or remote control;
6). Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
7). Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

Attention:
Safety is the most important issue for cranes.

1. Our safety device for QD type overhead crane: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar prevent plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and others you required.
2. To ensure the safety, it is prohibited to use the equipment in the combustible, explosive or corrosives environment.
(Need explosion proof type for this, please refer to our related product).
FAQ:
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What areas do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q6: Can this type work in hazardous environment?
A7: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q8: Can you provide the various lifting tools?
A8: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
