QD Type 75/20T Double Beam Overhead Crane With Main And Auxilliary Hook

Simple Description of QD Type 75/20ton double beam overhead crane:

QD type hook bridge crane is mainly composed of bridge frame, wagon running mechanism, trolley and electrical system.
It is suitable for lifting work more hard work, such as production workshops, warehouses, freight yard and other places, job level is commonly A5 ~ A8, its design advantage is box type with light weight, large load, strong wind resistance and other characteristics, has a unique steel pin connection, not only are secure, and assembly time is short, flexible bar leg, steering can be split into single site,Convenient transportation.It is often used in mechanical processing workshop,metallurgical factory and subsidiary workshop, warehouse, material yard, power plant for transferring, assembly, inspection maintenance and load unload procedures.

Main Components of QD Type 75/20ton double beam overhead crane:

1. Main girder of drive side, including motor of cart operation, reducer and take-off platform.
2. Passive side girder, no cart running motor reducer, take away platform.
3. Hoisting mechanism: winch car.
4. Hook and wire rope.
5. Overhaul the hanging cage.
6. Driver's cab.
7. Electrical control part: electrical control cabinet, resistance box, all kinds of cables.

Main features of QD Type 75/20ton double beam hook overhead crane :

1. Various operation modes, including ground handle, wireless remote control and driver's cab.
2.Large load capacity, can be equipped with motor grab, electromagnetic chuck and other fetching devices, to meet the needs of lifting various types of materials.
3. Detachable, portable transportation, simple installation

Technical Parameter:

Drawing picture:

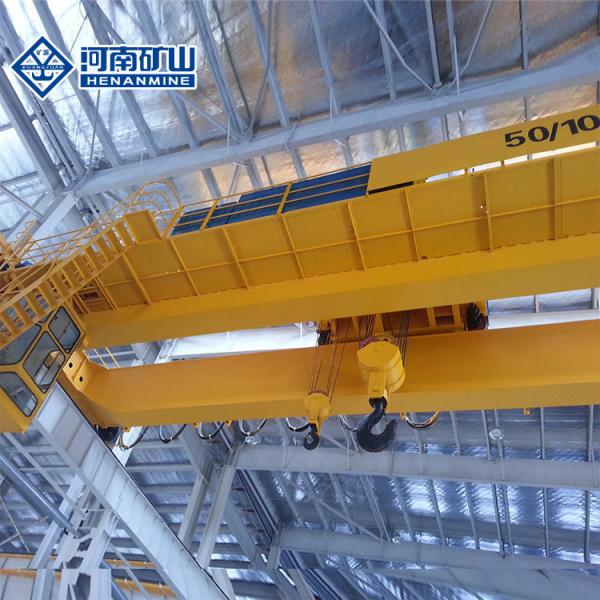

Real-pictures:
