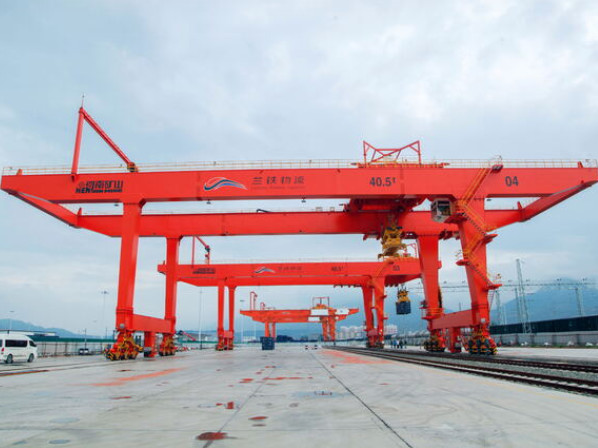

Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane
Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane
Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane
Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane
Specifications
Brand Name :
KUANGYUAN
Model Number :
RMG
Certification :
CE ISO
Place of Origin :
Henan, China (Mainland)
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 per/month
Delivery Time :
90days
Packaging Details :
Standard export package.
Lifting Capacity :
50/10t
Span :
18-35m
Control method :
remote control, cabin control
Power Source :
Three-phase four-wire 380v50hz
Working Duty :
A5
Color :
customized Color Acceptable
Description

Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane

Product Descriptions of the double Girder Gantry Crane

RMG type rail-mounted container gantry crane double girder crane, the former has good technology and is easy to manufacture, and the latter has light weight and strong wind resistance. For different purposes, MH gantry cranes also have cantilever and non-cantilever gantry cranes. If there is a cantilever, the crane can load goods to the edge of the crane through the outriggers, which is very convenient and efficient.

Technical parameters of Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane

Rated load/ton 50/10
Span/m 18~35m
Lifting height/m 12(main)/13(aux)
Working class A5
Lifting speed/m/min 6(main)/10.4(aux)
Trolley running speed/m/min 38.13
Crane running speed/m/min 38
Power Supply 3-phase A.C. 50Hz 380V


Main Features of U model gantry Crane:

1. Crane wheels and axles have undergone high-frequency quenching and quenching and tempering treatment, which effectively eliminates internal stress and ensures machining accuracy.

2. The main beam plate mainly adopts radiographic inspection and ultrasonic inspection to weld joints and corner seams to ensure welding quality.

3. In the field of main beams, the first to adopt intelligent and efficient welding robots, the seam welding of the main beams adopts advanced MAG, the use of Ar+Co2 Mix shielding gas, and the outer side of the four main beams adopts submerged arc welding fillet welders.

4. Using rolled steel drums or seamless steel pipes, Henan Mining Crane Co., Ltd. has an industry-leading production and processing line for rolled steel drums, from 1250t pre-bending press, to three-roll bending machine, to the longitudinal seam and ring of the cylinder. Automatic welding center welding and heavy-duty CNC horizontal lathe processing cylinder.

Attention:

Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).

Heavy Duty Double Girder RMG Rail Mounted Container Gantry Crane

Certification

We have passed CE, GOSTand OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environmentand ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality

FAQ

Q1. What do Henan mine crane do ?
A:We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q2. Do you provide professional crane servicing ?
A:Yes and our service team offer a range of professional services to installation and maintain your crane.
Q3. What do I need to consider when purchasing from you ?
A: Standard items to consider when purchasing any lifting equipment such as overhead crane and gantry crane or hoist, it including safe working load, span and lifting height, duty cycles and on-going cost of spare parts.
Q4. What makes you different from other manufacturers ?
A:We have trained service technicians who will be able to get your material handling equipment up and running, and have been providing our customers an effective service solution.
Q5. What areas do you service ?
A:We can send engineers provided installations and maintenance in all over the world.
