A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley
A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley
A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley
A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley
Specifications
Brand Name :
Kuangyuan
Certification :
CEI,SO
Place of Origin :
China
MOQ :
1SET
Payment Terms :
L/C, Western Union, MoneyGram
Delivery Time :
30working days
Product name :
30T RMG S16m Kuangyuan Brand Gantry Crane ISO CE Electric Trolley
Lifting mechanism :
Electric trolley
Control Method :
Cabin Control
Power Source :
220-690V 50Hz Three-phase
Color :
Clients' Requirments
Crane type :
Double Girder Overhead Crane
Work Duty :
A5-A7
Temperature :
-10~45℃
Bridge Type :
Span Construction
Motor :
Chinese Famous Brand/Requirment
Description

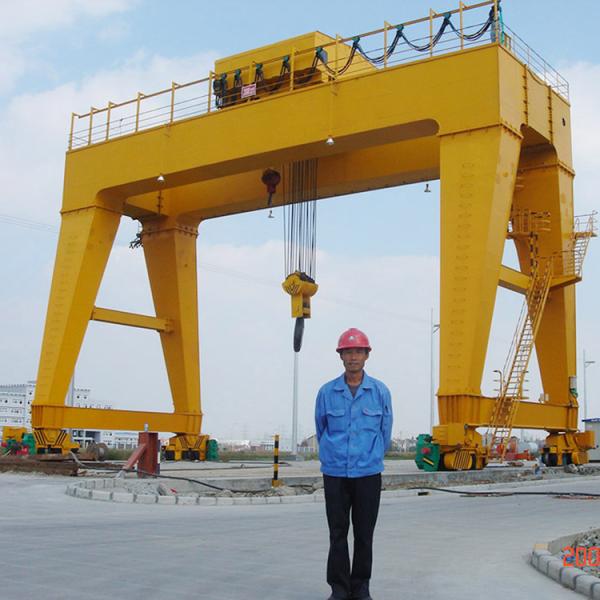

A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley

The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.This gantry crane is commonly used gantry crane, it be used in outside yard or warehouse for loading/unloading and moving materials.The control model are pendant pushbutton control, cabin control or remote control for choice, or two control models together.

Product technical parameters:

Lifting weight (t) 10 16 20/10 32/10 36/16 50/10
Span (m) 18~35 18~30 18~35 22 26 22~35 35

Lifting height (m)

 Main hook 11.5 10.5,12 10.5 11.5 11.5 12
Auxiliary hook 11 12 12 13
Speed (m/min) Main hook 8.5 7.9 7.2 7.5 7.8 6
Auxiliary hook 10.4 10.4 10.5 10.4
Trolley travel 43.8 44.5 44.5 41.9 41.9 38.13
Long travel 37.6,40 38,36 38,36 40 40,38 38
Duty classification A5-A8
Power source Three-phase AC. 127~480V 50/60Hz

A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley

A5 Work Duty Span 10m MG Double Girder Gantry Crane With Electric Trolley

Main Products

Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane price 20 ton 5ton, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane, four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

Safety feature

Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!

FAQ
Q1.What do Henan mine crane do?

A: We design,manufacture,install overhead crane ,granty crane, port ciane,hoist mwinch and provide customer lifting solutions.

Q2.Do you provide professional crane servicing?

A: Yes and our service team offer a range of professional services to installation and your crane.

Q3.What do I need to consid when purchasing from you?

A:Standard items to conside when purchaing any lifting equipment such as over as overhesd crane and gantry crane or hoist ,it including safe working load ,span and lifting height, duty cycles and cost of spare parts.

Q4.What makes you different from other manufacturers?

A: We have trained service technicians who will be able to get your material handing equipment up and running ,and have been providing our customer's an effective solution.

Q5.What areas do yo serves?

A: We maily service in china and can send engineers provided installations and maintenancein all over the world.

Contact us

Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.
