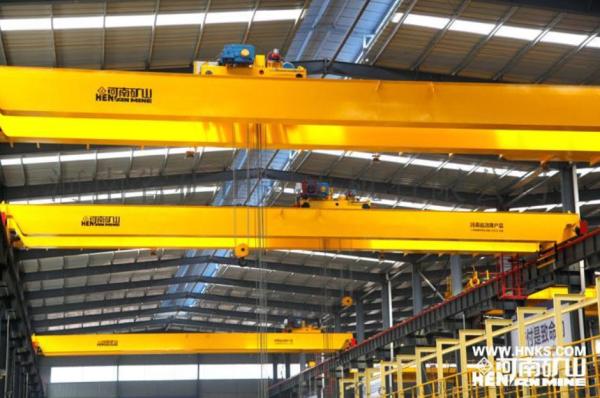

20T Double Girder European Overhead Crane Span 12m Working Duty A5
20T Double Girder European Overhead Crane Span 12m Working Duty A5
20T Double Girder European Overhead Crane Span 12m Working Duty A5
20T Double Girder European Overhead Crane Span 12m Working Duty A5
20T Double Girder European Overhead Crane Span 12m Working Duty A5
20T Double Girder European Overhead Crane Span 12m Working Duty A5
Specifications
Brand Name :
KuangYuan
Model Number :
KSSL
Certification :
CE, ISO, EAC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
4000 sets/ month
Delivery Time :
About 45 days
Packaging Details :
Standard export package.
Capacity :
20T
Span :
12m
Working class :
A5
Color :
Orange
Model :
KSSL
Power source :
380V, 50Hz, 3P
Control method :
Cabin or remote control
Warranty :
18months
Application :
Workshop, indoor, warehouse
Lifting mechanism :
Electric trolley
Description

20T European type Double Girder Crane Span 12m Working Duty A5

1. Description

Based on bringing in and assimilating foreign advanced technology, this type of crane takes modular design theories as guidance, uses modern computure technology as means, introduces optimized and reliable design methods, which is new type of crane made by employing import configuration, new material and technology and has features in light-weight, generalizing, energy-conservation and environmental protection, maintenance free and high technology content.

2. Technical Specification

S/N. Crane No.s

1
1 Name European type double girder crane
2 Model KSSL 20T-12M-H=9M
3 Working class A5
4 Capacity 20tons
5 Span 12m
6 Lifting height 9m
7 Lifting speed 0.66~4m/min
8 Trolley travelling speed 5~20m/min
9 Crane travelling speed 5~20m/min
10 Control type Cab
11 Power supply 380V50Hz3Ph AC
12 Total power 16.5KW
15 Crane weight 74000Kgs

20T Double Girder European Overhead Crane Span 12m Working Duty A5

20T Double Girder European Overhead Crane Span 12m Working Duty A5

FAQ:

1. What's the information should I provide when inquiry?

More details or drawings, better. A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.

2. How many operating methods for my selection?

Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.

3. Can this type work in hazardous environment?

Sure! We can customize for you, acid proof or explosion proof, no problem for that.

4. Can you provide the serious lifting tools?

Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

5. How can we install the crane?

Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.

6. Safety device

Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
