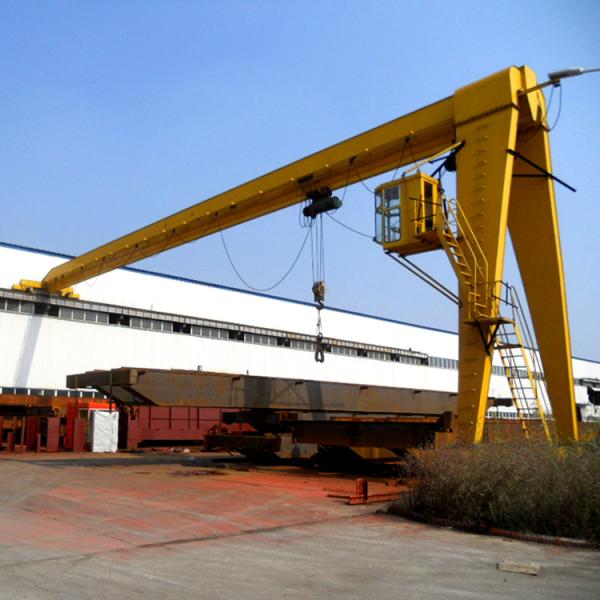

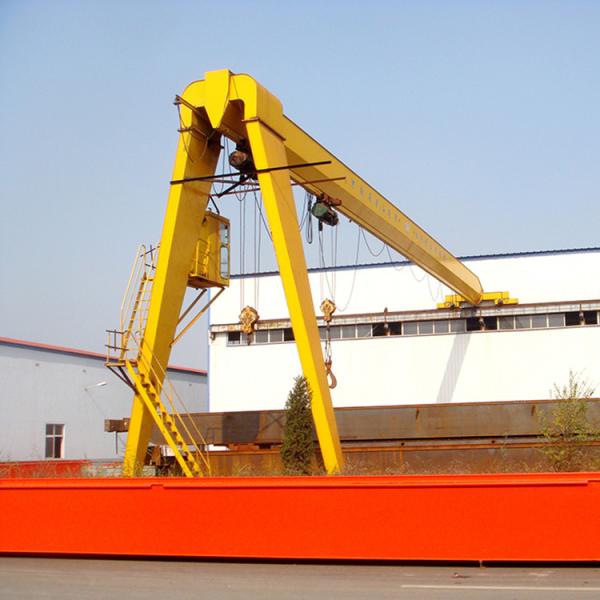

16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
Specifications
Brand Name :
KuangYuan
Model Number :
BMH Gantry Crane
Certification :
CE ISO SGS GOST
Place of Origin :
Henan, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000 sets per year
Delivery Time :
35days
Packaging Details :
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for
Voltage :
220~480v, 50/60hz
Girder structure :
Box Type
Condition :
New
Main electrical parts :
Schneider brand
Crane feature :
Semi-Gantry Crane
Working duty :
A5
Warranty :
1 year
Span :
7.5-31.5m
Application :
Indoor, outdoor, factory yard, etc
Color :
Requirement
Description

16T BMH Type Single Girder Travelling Semi-gantry Crane with Electric Hoist


Single Girder Semi-Gantry Crane Description:
BMH type single girder semi gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non-cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.


Main Features of MH model Gantry Crane:
1. Simple and compact structure, steady performance.
2. Easy to install and high efficiency.
3. Overload, low voltage protective device.
4. Pendent control and remote control.
5. Easy maintenance.

6. Preventing hook clashing the top, set shields and barriers.
7. Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
8. Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.
9. Anti-collision, sound and light alarm devices. Equipped with rail clamp.


Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!


Control method:
Pendant Control, remote control, cabin control


Painting:
Primer and finishing paint
Color: according to your demand.


Product Structure

Semi Single girder gantry crane
Model BMG
Capacity(Ton) 5 10 16 20
Span 10.5~31.5m
Lifting Speed(m/min) 8 7 3.5 3.5
Trolley running speed/m/min 20
Crane running speed/m/min 20
Control Pendant control, remote control, cabin control
Working class A3~A5

FAQ

Q1: What's the information should I provide when inquiry?

A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q6: Can this type work in hazardous environment?
A7: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q8: Can you provide the various lifting tools?
A8: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!

16T Single Girder Travelling Semi Gantry Crane With Electric Hoist

16T Single Girder Travelling Semi Gantry Crane With Electric Hoist
