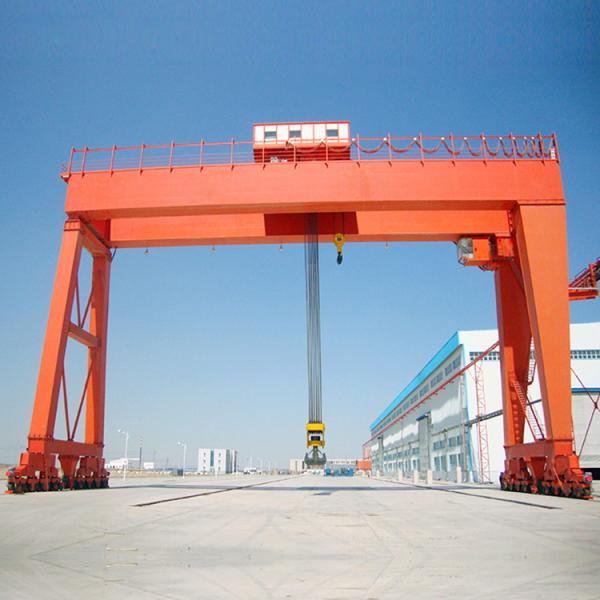

Top quality heavy duty MG model box type double girder electric frame Crane

Product description of 10 Ton A Type Heavy duty Double Girder Electric Frame Crane

moving through the ground beam as crane travelling system

9.The camber of main beam will be MG model Double girder frame crane is a track traveling Medium-Heavy sized crane,it mainly consists of the skeleton structure, lifting trolley and cross traveling mechanism, long traveling mechanism, cabin,festoon cable and electrical control system. The trolley can move horizontally on a pair of rails on the main beam. The working class is A4 A5 A6 A7.

The Double girders frame crane main beam can be box or trussed type in according to your working environment situation. pressure is less than 125Pa, or more;The double beam gantry crane is usually being used outdoor,driver’s Cabin is used for operating, with seats inside. Driver’s cabin floor adopts insulation pads and toughened glass for windows; extinguisher and fan are optional equipped. Other accessory equipment like air condition, buzzer,interphone and etc. can be configured according to client’s request.The length of cantilevers can be designed to meet the working demands.

Product Featuresof A type Doule beam gantry crane can accord your demand:

1.Double girder gantry Crane is a medium and heavy size crane which travels in track.

2. Its proper lifting weight is 5 to 75 tons and proper span is 18 to 35 meters.

3. Its proper working temperature is -20-+40 centigrade.

4. Remote control,cabin control

5. Power supply is by cable or slide wire.

6. Double girder gantry crane has A type, U type. U type is designed for container lifting. It could be designed with cantilever or not.

7.The crane is a customized product,the working class can be A4, A5, A6, A7. The main beam, legs and travelling beams are made by steel plates, it is very strong and has small body, it is suitable for ocean transport.

8.Double box beam with steel legs designed as Span*1-1.4/1000.

10.Steel Material: Q235 or Q345

11.Shot-blasting Sa2.5 for main girder and supporting beam

12.Epoxy zinc rich high quality painting.

13.Electric brand: CHINT SIEMENS Schneider

Design and construction rules:

Gantry crane manufacturing and tolerances of rail installation GB/T10183-2018

Crane test specification and procedures GB/T5905-2011

Crane electric control equipment JB/T4315-2020

Important application wire rope GB8918-2006

Carbon structure steel GB/T700-2006

Low alloy high strength structure steel GB/T1591-2018

Welding joint radiographic inspection standard JB928-1994

Steel welding joint manual ultrasonic flaw detection way GB11345-2013

Painting:

Primer and finishing paint

Color: according to your demand.

Product technical parameters:

Product Structure:

There are only some common models of U type Double girder hook gantry crane in the table, and various other models and parameters of rail container gantry cranes can be produced through customized design.
